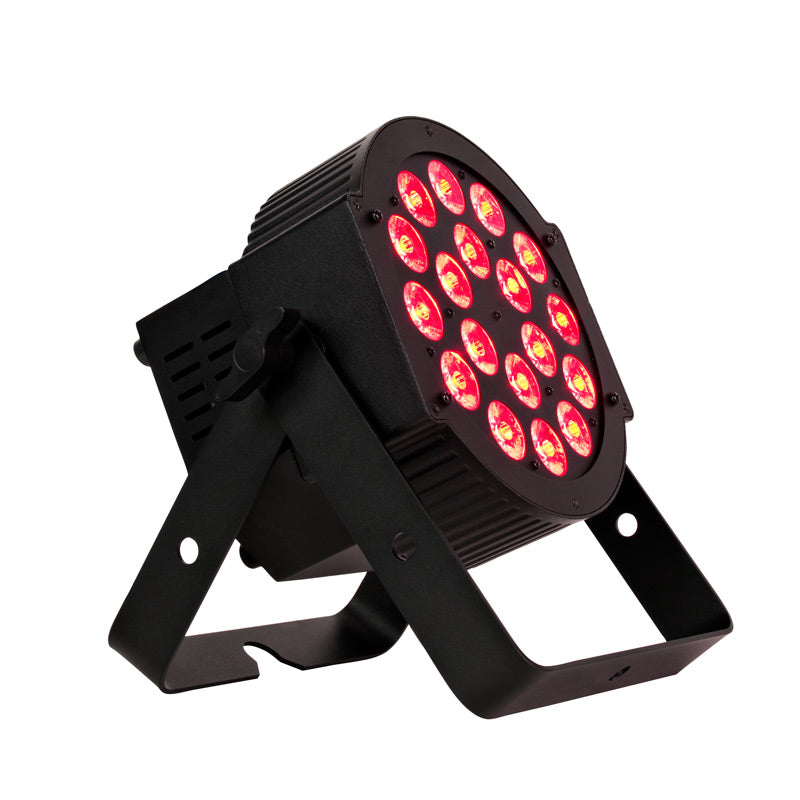

ADJ 18P Hex LED Par Fixture

ADJ 18P Hex LED Par Fixture

The ADJ 18P Hex is a professional-grade LED par light featuring eighteen 12‑Watt, 6‑in‑1 HEX LEDs (RGBAW+UV) with a 25° beam angle and heavy-duty all-metal construction. Designed for robust stage and uplighting applications, it offers rich color mixing and smooth washes via 63 built‑in color macros.

Its user-friendly interface includes a 4-button digital DMX menu, multiple DMX channel modes (6, 7, 8, 12 channels), and five operational modes. A gel frame is included, and the fixture supports daisy-chaining via locking power connectors.

Key Features

• Light Source: 18 x 12 W HEX LEDs (RGBAW+UV), approx. 50,000 hr life
• Beam Angle: 25°
• Color Macros: 63 built‑in
• DMX Modes: 6, 7, 8, and 12 channels
• Operational Modes: Manual Color, Color Fade, Auto Program, Sound Active, DMX
• Dimming Curves: Five selectable (Standard, Stage, TV, Architectural, Theatre)
• Flicker Free: Yes
• Interface: 4-button digital DMX menu display
• Daisy-chaining: Up to 4 units at 110 V, or 8 units at 240 V via locking power in/out
• Gel Frame: Included (supports beam diffuser accessory)
• Housing: Heavy-duty metal with scissor yoke
• Certifications: cETLus, CE

Technical Specifications

• Dimensions (LxWxH): 11.96″ x 6.88″ x 13″ (304 x 174.8 x 330.4 mm)
• Weight: 12.9 lbs (5.9 kg)
• Input Voltage: 100‑240 V, 50/60 Hz (auto-sensing)
• LED Refresh Rate: 3.6 kHz
• Power Consumption: Not available (likely around 216 W per equivalent spec
• Control Protocols: DMX, RDM (Remote Device Management)
• Sockets: Locking power in/out, 3‑pin & 5‑pin DMX
• IP Rating: IP30 (dry areas)

What's Included

• 1x 1 m locking power TOEdison cable
• 1x Metal gel frame
• Owner’s manual
