ADJ ElectraPix Bar 8 Pak Lighting Fixture Package
ADJ ElectraPix Bar 8 Pak Lighting Fixture Package The ADJ ElectraPix Bar 8 Pak is a robust, IP65-rated lighting package designed for professional stage and event use. It includes six battery-powered ElectraPix Bar 8 fixtures, a rugged flight case with integrated charging...
PRODUCT DETAILS
Everything you need to know.
ADJ ElectraPix Bar 8 Pak Lighting Fixture Package

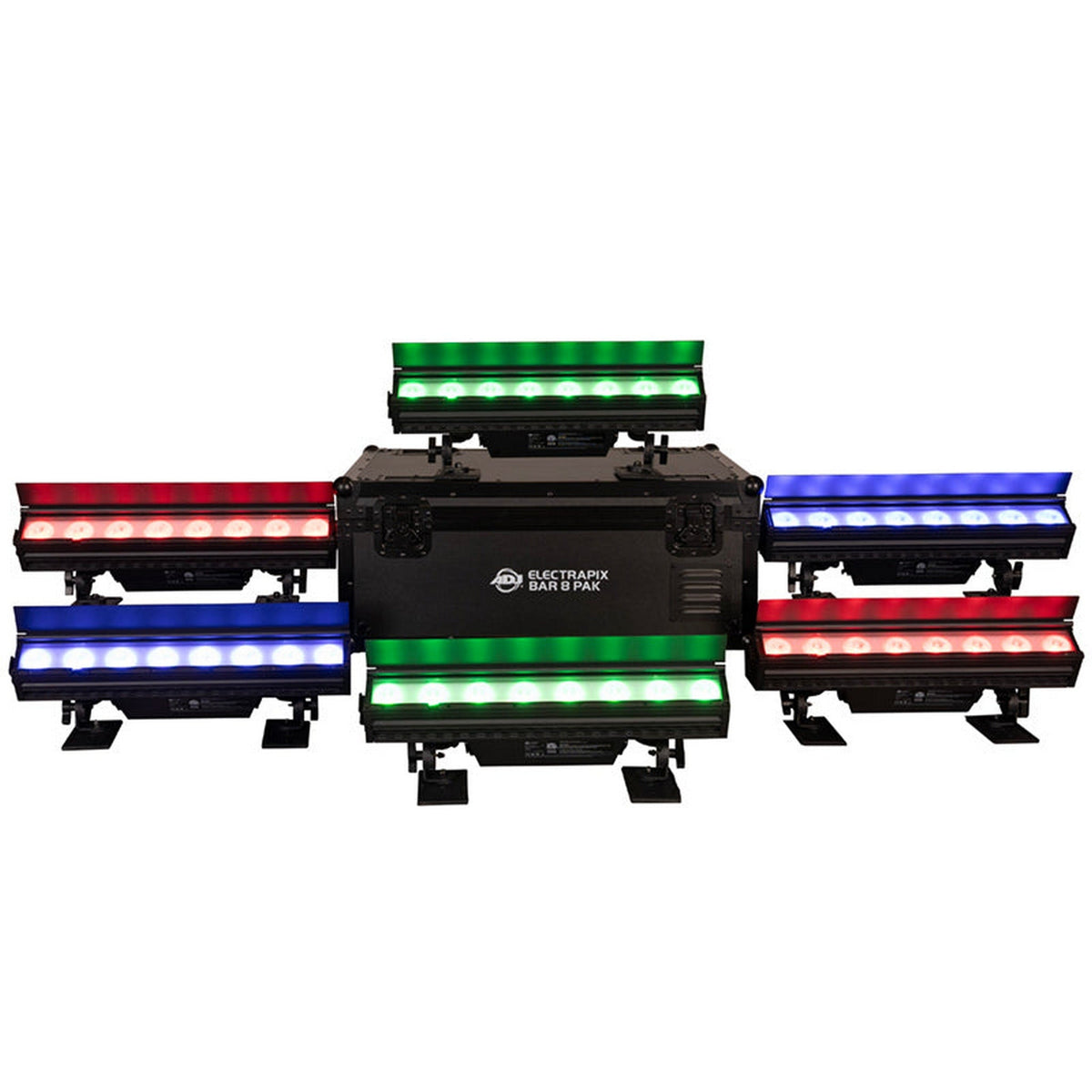

The ADJ ElectraPix Bar 8 Pak is a robust, IP65-rated lighting package designed for professional stage and event use. It includes six battery-powered ElectraPix Bar 8 fixtures, a rugged flight case with integrated charging slots, and essential accessories for dynamic, portable lighting setups.
Each fixture features eight 20 W Hex Color RGBAL+UV foreground LEDs, 32 background LEDs, individual pixel control, and multiple control options including DMX512, Aria X2 wireless, Bluetooth, RDM, and a UC-IR24 remote. With up to 20 hours of battery runtime and full IP65 protection, this system is built for high-impact environments.
Key Features
- Fixtures Included: Six ElectraPix Bar 8 linear LED fixtures
- Charging & Transport: Rugged flight case with six integrated charging bases
- LED Configuration: 8 x 20 W RGBAL+UV foreground LEDs; 32 x 0.2 W RGB background LEDs
- Color Temp: 2,300 K to 9,900 K, adjustable via onboard menu
- Beam Angle: 17° (without filter); includes 20° diffusion filter
- Control Options: DMX512, Aria X2 wireless DMX, Bluetooth, RDM, UC-IR24 remote, manual control
- IP Rating: IP65—durable against dust and water ingress
- Battery: 7,000 mAh lithium-ion; up to 20 h runtime; charges in 5 h; 500 battery cycles
- Display: OLED with 4-button interface, supports multiple DMX modes
Technical Specifications
- Fixture Dimensions: 3.72″ x 23.1″ x 10.6″ (94.5 mm x 586.7 mm x 268.7 mm)
- Fixture Weight: 16.1 lb (7.3 kg)
- Flight Case (Loaded) Dimensions: 31.8″ x 27.42″ x 17.4″ (807.5 mm x 696.4 mm x 441.9 mm)
- Flight Case (Loaded) Weight: 174 lb (79 kg)
- Estimated Shipping Weight: ~190 lb (86 kg)
- Estimated Shipping Dimensions: 34″ x 30″ x 20″ (864 mm x 762 mm x 508 mm)
- Power Input: 100–240 VAC, 50/60 Hz; 60 W per fixture
- Certifications: CE, FCC, cETLus, IP65
- Operating Temperature: –20 °C to 45 °C
- Battery Specs: 7,000 mAh @ 22.2 V, 5 h charge, 20 h runtime, 500 cycles
What's Included
- 6x ElectraPix Bar 8 fixtures
- 1x ElectraPix Bar 8 flight case with charging slots
- 6x Charging bases with power supplies
- 6x IP65 locking power cables
- 1x UC-IR24 wireless infrared remote
- 6x 20° diffusion filters
