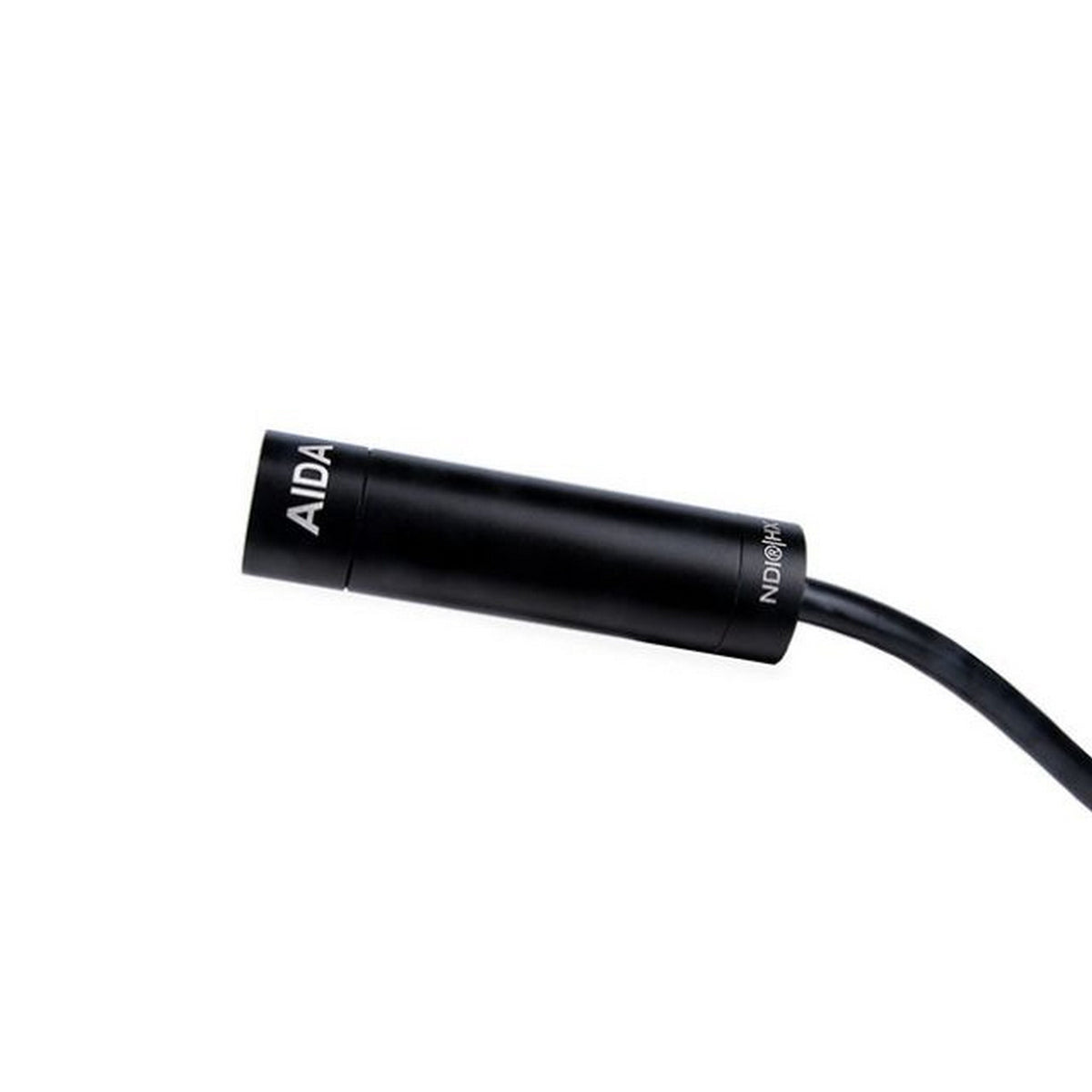

AIDA NDI-HX Compatible FHD WP Lipstick Camera

The AIDA NDI HX Compatible FHD WP Lipstick Camera (HD-NDI-MINI) is a compact, weatherproof POV camera engineered for discreet, high-quality IP video acquisition. Built around a 1/3 inch progressive CMOS sensor, the camera captures Full HD video up to 1080p60 and delivers it over NDI HX or other popular streaming protocols. Its durable barrel-style design provides superior weather protection, making it ideal for installations in exposed or difficult-to-reach areas such as rafters, pylons, structures, or outdoor environments.

The small form factor enables creative point-of-view placement that would be impractical with traditional cameras. An included M12 4 mm HD lens preserves image quality while keeping the unit light and compact. A built-in web interface allows direct configuration and streaming to compatible platforms, while VISCA over IP enables integration with remote control systems. Low-light performance down to 0.2 lux (day) ensures reliable capture in variable lighting conditions.

Designed for modern IP-based workflows, the camera supports NDI HX, SRT, RTMP, and RTSP output formats, allowing flexible deployment across production, broadcast, streaming, and surveillance applications. With dependable weatherproofing, efficient power options (including a PoE adapter), and rugged construction, the HD-NDI-MINI is built for long-term reliability in both indoor and outdoor POV applications.

Key Features

• Full HD NDI HX output with 1080p video up to 60 frames per second.
• Compact barrel-style form factor for discreet POV placement in tight or unconventional locations.
• Weatherproof housing for additional protection in challenging environments.
• Built-in Web UI for IP streaming setup and image adjustment.
• M12 lens mount (includes 4 mm HD lens with weatherproof cap) for minimized size and flexible imaging options.
• Low-light performance down to 0.2 lux (day) and 0.1 lux (night).
• VISCA over IP support for remote camera control and system integration.
• Flexible IP protocols: NDI HX, SRT, RTMP, RTSP, UDP/IP.

Technical Specifications

• Image Sensor: 1/3 inch progressive CMOS
• Sensor Size: 5.346 mm x 3.003 mm (16:9)
• Effective Pixels: 1920 (H) x 1080 (V)
• Pixel Size: 2.75 µm x 2.75 µm
• Supported Resolutions: 1080p, 1080i, 720p
• Frame Rates: 1080 60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p; 1080 60i, 59.94i, 50i; 720 60p, 59.94p, 50p
• Video Output Formats: NDI HX, SRT, RTMP, RTSP
• Color Space: 4:2:2 YCbCr, 10-bit
• Minimum Illumination: 0.2 lux (day), 0.1 lux (night)
• White Balance: Auto or manual (approx. 9000 K–11000 K)
• Lens: M12 mount; default 4 mm HD lens with weatherproof cap
• IP Protocols: UDP/IP, RTSP, RTMP, SRT, NDI HX
• Camera Control: VISCA over IP
• Operating Temperature: 32°F to 104°F
• Dimensions: 90 mm x 24 mm (3.5 in x 0.94 in) with weatherproof cap
• Weight: 180 g (0.39 lb) with weatherproof cap
• Power Input: 12 V DC (acceptable range: +9 to +15 V DC)
• Included Power Option: PoE adapter
• Environmental Rating: Weatherproof
