amaran F22x 2x2ft 200W Bi-Color LED Flexible Mat Light (Gold Mount)

amaran F22x 2x2ft 200W Bi-Color LED Flexible Mat Light with Gold Mount (AP20235A15)

The amaran F22x with Gold Mount is a 2x2-foot 200W bi-color LED flexible mat light that outputs 6,960+ lux at 1 meter (5600K) - the highest output in its class for a flexible LED mat. Its bi-color chipset tunes from 2500K to 7500K with CRI 95+ and TLCI 98+ color accuracy, making it a powerful solution for studio key lighting, interview setups, and on-location production that requires Anton Bauer Gold Mount battery compatibility.

The F22x's flexible fabric mat stretches onto the included folding X-Frame to form a rigid 2x2 panel mountable directly to a C-stand grip head. The included foldable softbox with two diffusion strengths and a fabric grid attaches via hook-and-loop to convert the mat into a large, ultra-thin soft light in seconds. The ballast uses a passive heat sink rather than a fan, eliminating noise that interferes with on-set audio.

The Gold Mount battery plate accepts Anton Bauer Gold Mount batteries at 14.4V, 26V, 28.8V, or 48V via 3-Pin XLR. The included multi-voltage AC supply handles studio use. A 3-meter head cable plus the included 3-meter extension delivers 6 meters of reach between the fixture head and control box. Sidus Link Bluetooth app enables 9 built-in lighting FX and wireless multi-light control; wired DMX is available via a separately sold USB-C to 5-Pin DMX512 Adapter.

Key Features

• 200W High-Output Bi-Color: Delivers 6,960+ lux at 1 meter (5600K) across a 2500K to 7500K tuning range with CRI 95+ and TLCI 98+.
• Gold Mount Battery Compatible: Accepts Anton Bauer Gold Mount batteries at 14.4V, 26V, 28.8V, or 48V (3-Pin XLR) for wireless, mobile operation.
• Ultra-Lightweight 2x2 Form Factor: Mat weighs just 1.76 lbs (0.8 kg); folds flat for travel and stretches onto the X-Frame for a rigid panel.
• Silent Operation: Passive heat sink in the ballast eliminates fan noise for dialog-heavy and quiet set applications.
• Included Softbox + Grid: Hook-and-loop foldable softbox with two diffusion cloths and a light control grid for large-format soft light without a speed ring.
• 9 Built-In Lighting FX: Paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, and pulsing accessible from the onboard interface.
• Sidus Link App Control: Bluetooth control with Source Match, Color Picker, and Custom FX; DMX via separately sold adapter.

Technical Specifications

• Model: F22x
• Form Factor: 2 x 2 ft flexible LED mat
• Power Output: 200W
• Max Power Draw: 240W
• Output: 6,960+ lux @ 1 m (5600K)
• CCT Range: 2500K - 7500K
• CRI: 95+
• TLCI: 98+
• CQS: 96+
• Weight (mat only): 1.76 lbs (0.8 kg)
• Dimming: 0-100% stepless
• Lighting FX: 9 built-in
• Flicker Reduction: Frequency selection up to +2000Hz
• Battery Mount: Gold Mount (Anton Bauer)
• DC Power Input: 14.4V / 26V / 28.8V / 48V (3-Pin XLR)
• Head Cable Length: 3 m integrated + 3 m extension included (6 m total)
• Control: Onboard, Sidus Link Bluetooth App, DMX (adapter sold separately)
• Cooling: Passive heat sink (silent)
• Operating Temperature: -10 deg C to 40 deg C (-4 deg F to 113 deg F)

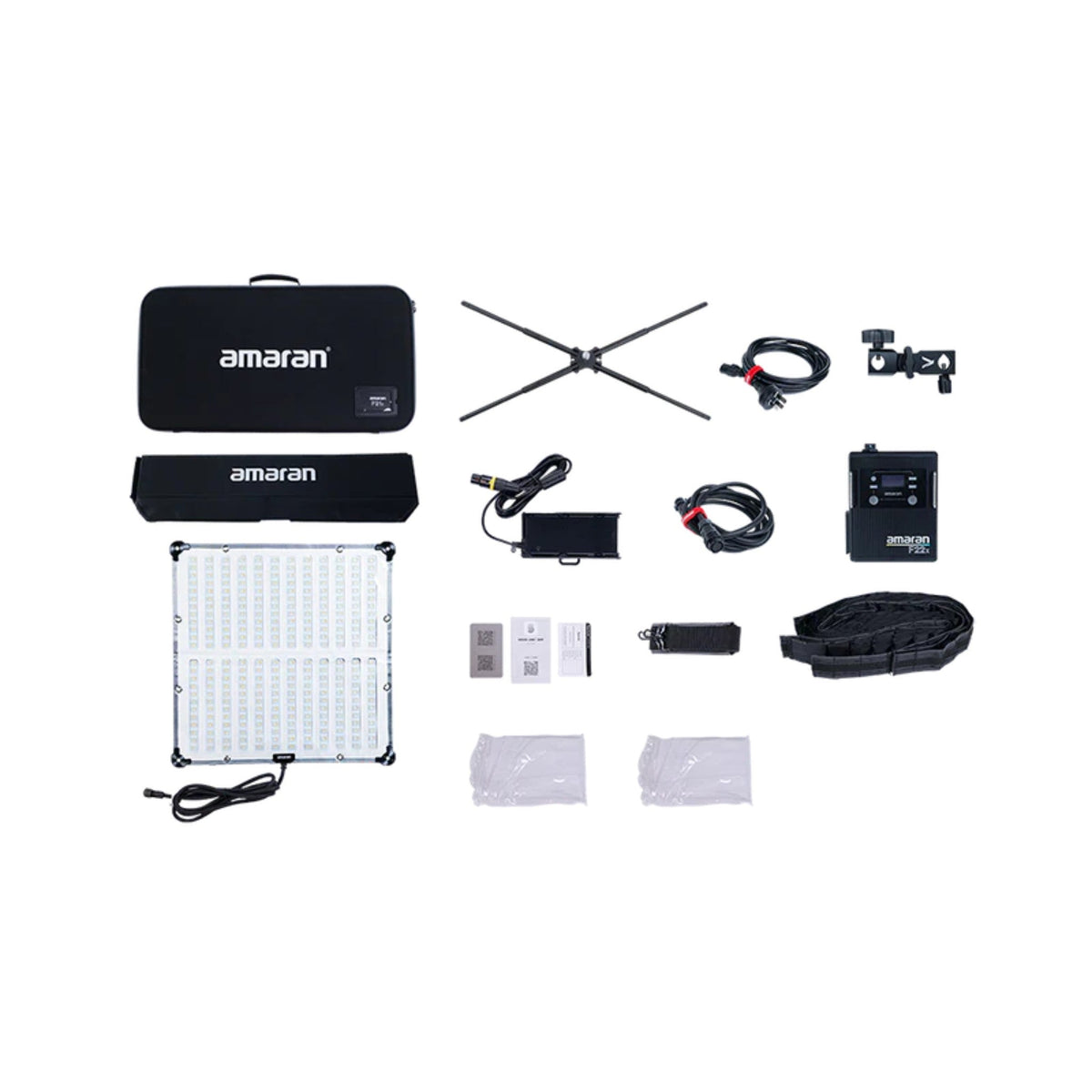

What's in the Box

• amaran F22x 2x2 Bi-Color LED Flexible Mat (Gold Mount)
• F22x Control Box with Gold Mount Plate
• Head Extension Cable (3 m)
• Support Bracket and Baby Pin Adapters
• Tilting Stand Mount
• F22 Softbox Frame with Diffusion Cloths (x2) and Light Control Grid
• Multi-Voltage AC Power Supply
• AC Power Cable
• Soft Carrying Case
