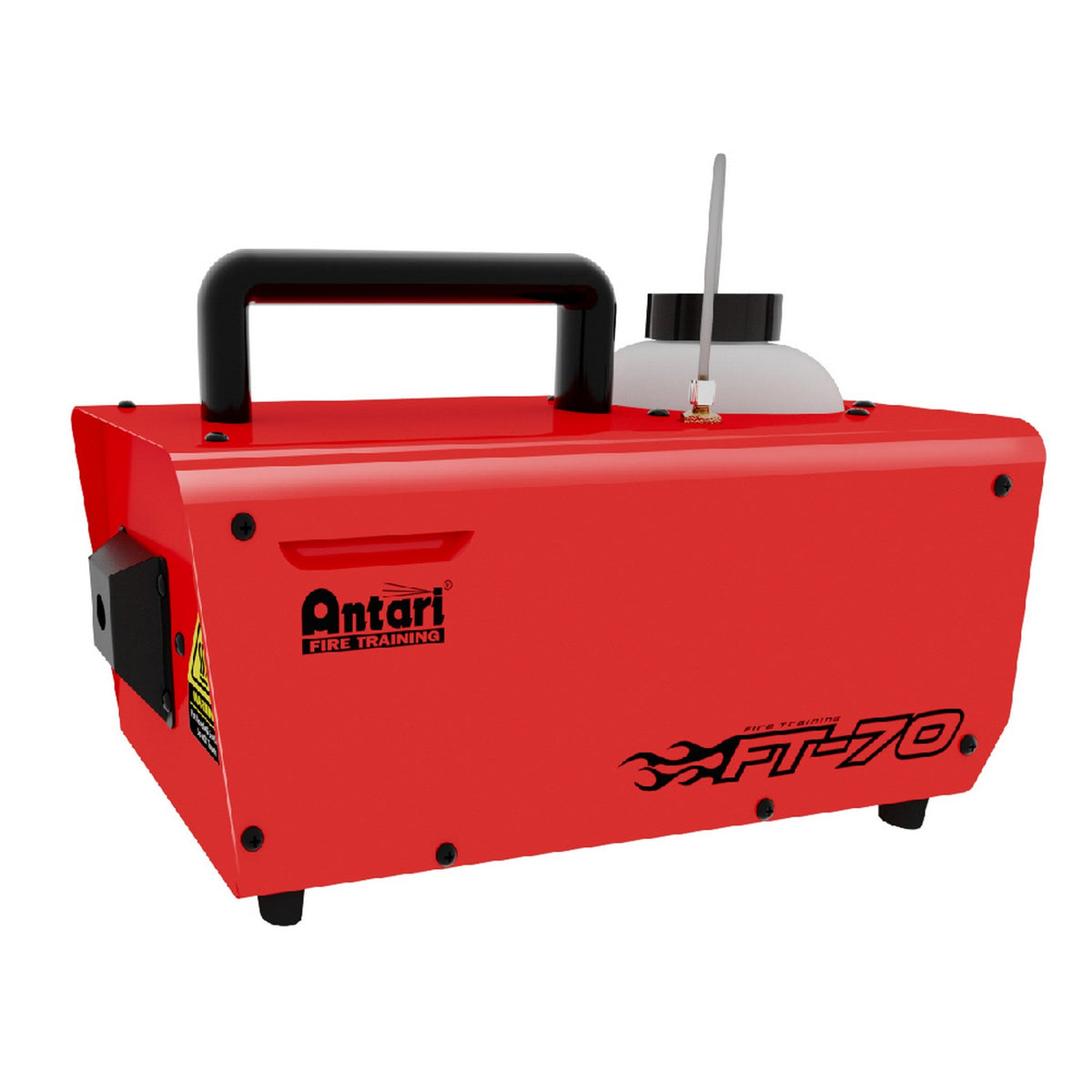

Antari FT-70 Fire Training Fog Machine

Antari FT-70 Fire Training Fog Machine

The Antari FT-70 Fire Training Fog Machine is a 1000W fog generator designed for small to mid-sized fire-training facilities. It combines continuous output, manual operation, and wireless control with a 1.7-liter fluid tank, approximately seven-minute warm-up time, and compatibility with Antari FLP Fire Training Smoke Fluid.

Built for controlled fire-training scenarios, the FT-70 uses a single rotary control knob for straightforward local operation and includes wireless control capability for greater positioning flexibility. At full output, the machine consumes approximately 2 fluid ounces of smoke fluid per minute. Voltage protection and dual thermal cut-off technology provide integrated electrical and thermal safeguards during operation.

The FT-70 supports both US and EU input-voltage configurations and uses an IEC power connection. A reserved 5-pin XLR interface is also provided, while the machine does not use DMX control channels. Its operating temperature range extends from 32°F to 104°F, making it suitable for a range of indoor training environments. The included W-3 wireless transmitter provides remote control without requiring an additional wireless accessory.

Key Features

• Fire Training Design: Intended for small to mid-sized fire-training facilities
• Continuous Output: Supports sustained fog generation for training scenarios
• Wireless Control: Includes wireless control capability and a W-3 wireless transmitter
• Single Rotary Control: Provides direct manual adjustment from the machine
• Safety Protection: Incorporates voltage protection and dual thermal cut-off technology
• 1000W Power: Uses a 1000W rated heating system with an approximate seven-minute warm-up time
• Dedicated Training Fluid: Designed for use with Antari FLP Fire Training Smoke Fluid

Technical Specifications

• Input Voltage, US Model: AC 100-120V, 50/60 Hz, 8.5A
• Input Voltage, EU Model: AC 220-240V, 50/60 Hz, 4.5A
• Rated Power: 1000W
• Warm-Up Time: Approximately 7 minutes
• Fluid Consumption: Approximately 2 fluid ounces per minute at 100% output
• Fluid Tank Capacity: 0.45 gallon
• Compatible Fluid: Antari FLP Fire Training Smoke Fluid
• Ambient Temperature Range: 32°F to 104°F
• Control Methods: Manual and wireless
• DMX Channels: None
• Power Interface: IEC
• Additional Interface: Reserved 5-pin XLR
• Included Accessory: W-3 wireless transmitter
• Optional Accessories: None listed
• Dimensions: 16.4 x 7 x 10.8 inches (L x W x H)
• Weight: 15.4 lb

What's Included

• W-3 wireless transmitter
