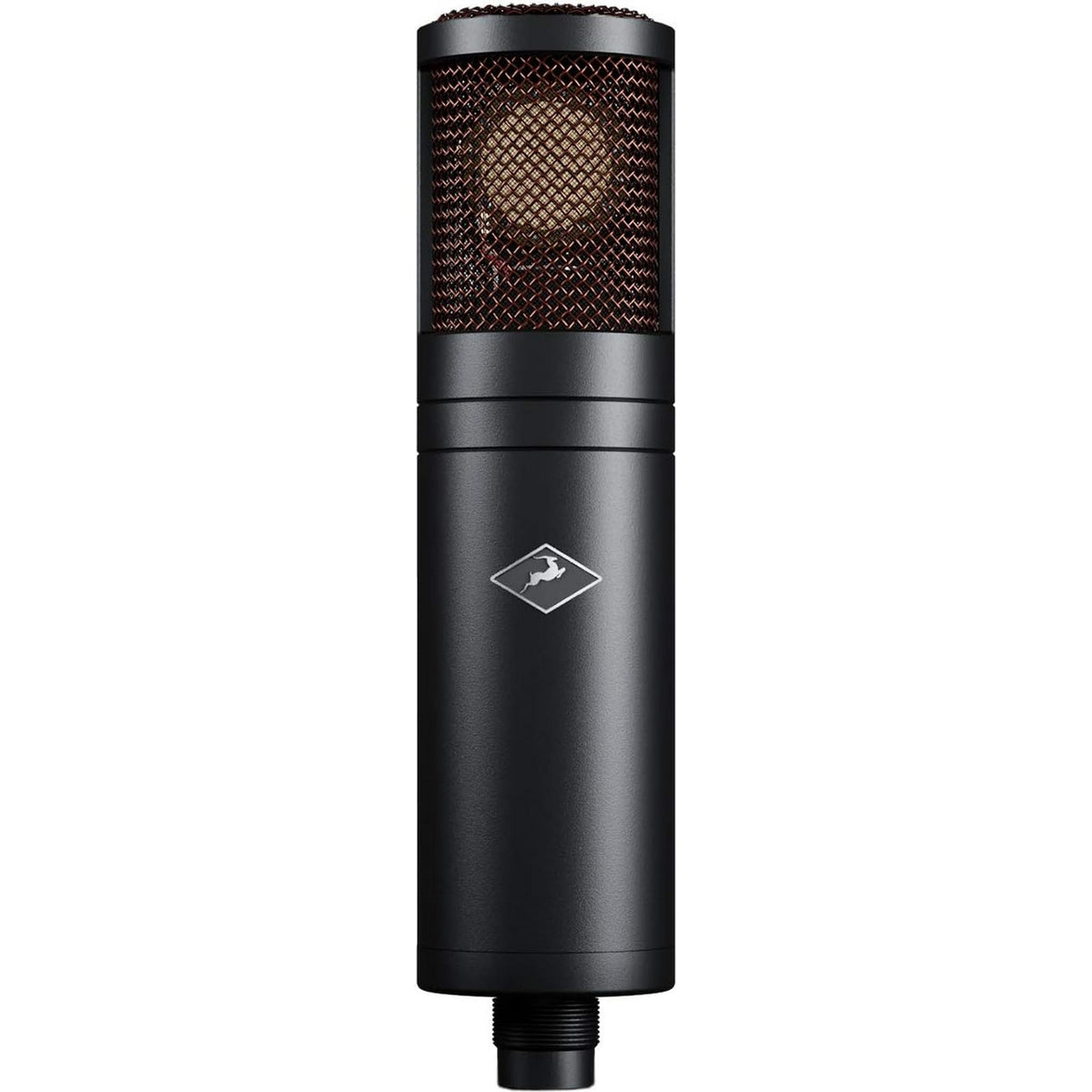

Antelope Audio Edge Duo Large Diaphragm Modeling Microphone

Antelope Audio Edge Duo Large Diaphragm Modeling Microphone

The Edge Duo is a premium large-diaphragm condenser microphone featuring dual gold-sputtered membranes and multi-pattern control. Equipped with powerful real-time modeling, it recreates 18 classic microphones and provides unmatched flexibility via dual-output channels for 3D sonic capture.

Key Features

• Dual-Diaphragm Design: Two 34 mm gold-sputtered membranes for enhanced spatial detail
• Multi-Pattern: Cardioid, figure-8, omnidirectional, and intermediate patterns selectable in software
• Mic Modeling: Access to 18 iconic mic emulations in real time or via DAW plugins
• Outputs: 5-pin XLR connector split into two XLR outputs using included breakout cable for dual-channel processing
• High Build Quality: Low-resonance matte body, complete with shock mount, pop filter, and rugged case
• Phantom Power: Operates on 48 V standard phantom power

Technical Specifications

• Type: Large-diaphragm condenser, dual capsule
• Diaphragm Size: 34 mm, double-sided gold-sputtered membranes
• Frequency Response: 20 Hz – 20 kHz
• Self-Noise: 19 dB(A)
• SNR: 75 dB(A)
• THD+N: –116 dB
• Sensitivity: –35 dB / 18 mV/Pa
• Output Impedance: 50 Ω at 1 kHz
• Outputs: 5-pin male XLR (mic body); Y-cable to two XLR male connectors
• Weight: 1.23 lb (0.56 kg)
• Dimensions: 8.6″ × 2.1″ (219 mm × 53 mm)

What’s Included

• 1x Edge Duo microphone
• 1x 5-meter Y-cable (5-pin to dual XLR)
• 1x Shock mount
• 1x Pop filter
• 1x Road case with custom foam inserts
• Quick-start guide and emulation license codes
