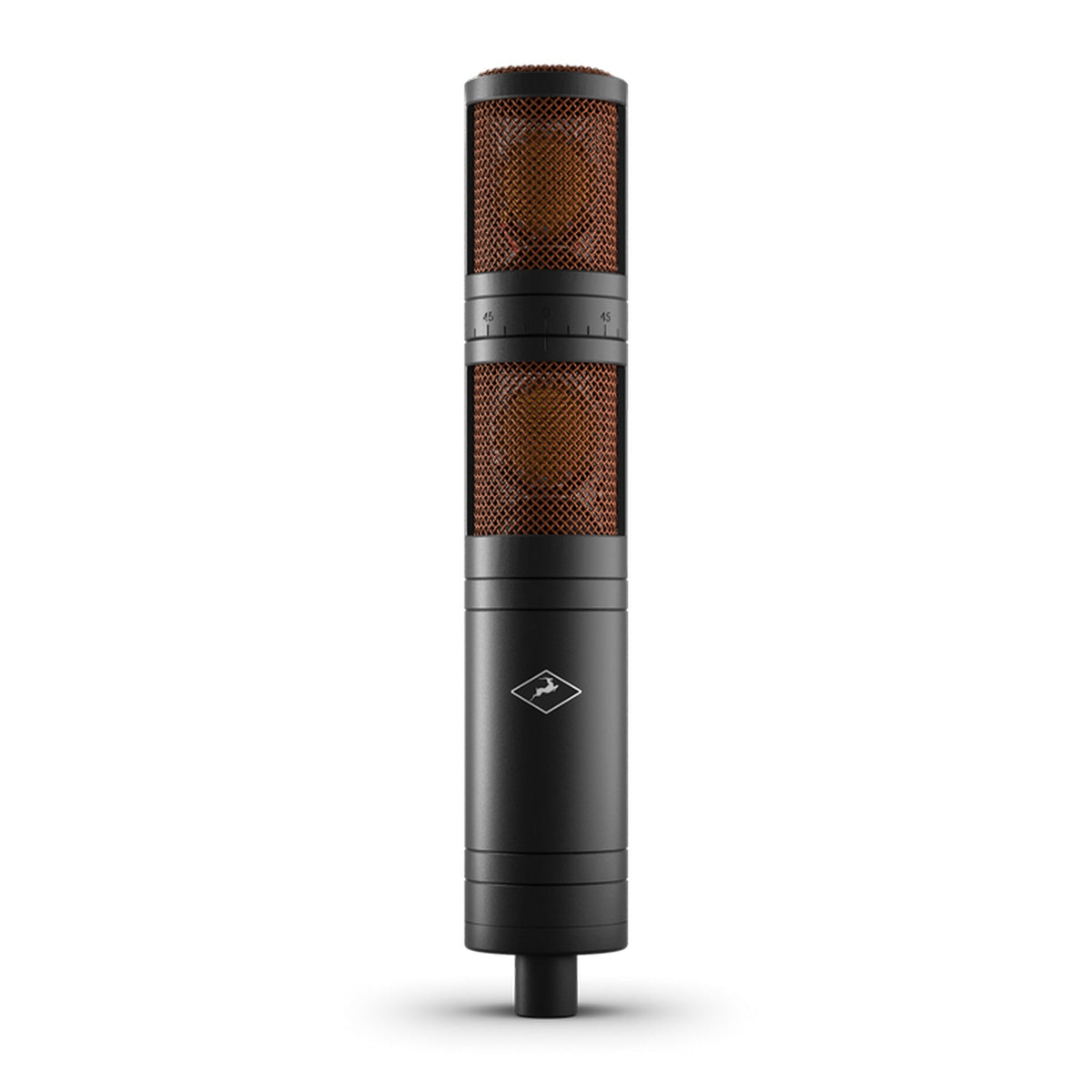

Antelope Audio Edge Quadro Quad-Channel Modeling Microphone

Antelope Audio Edge Quadro Quad-Channel Modeling Microphone

The Edge Quadro is Antelope Audio’s most advanced modeling microphone, featuring two rotatable dual-capsule heads and quad-channel output. Designed for immersive audio capture, it supports versatile stereo techniques like M/S, X/Y, Blumlein, and 360° recording—all in a single, precision-engineered unit.

Key Features

• Quadros-onic Design: Dual large condenser capsules, each with double-sided gold-sputtered membranes, delivering four audio channels for granular control.
• Rotatable Top Head: Allows real-time angle adjustment during recording to explore creative positioning and stereo imaging.
• Multi-Pattern Control: Per-head selectable patterns including cardioid, figure-8, omnidirectional, Blumlein, M/S, X/Y, and 360° setups.
• Independent Emulation: Each capsule supports a unique vintage mic emulation for dynamic tonal sculpting.
• Extensive Emulation Library: Includes 11 legendary microphones with others forthcoming for continuous sonic expansion.
• Premium Accessories: Delivered with a custom luxury shock mount, two oxygen-free copper Y-cables (5 m each), and a handcrafted wooden case for protection and presentation.

Technical Specifications

• Microphone Type: Dual-capsule (Quadrosonic) condenser
• Diaphragm Size: 34 mm per capsule
• Polar Patterns: Cardioid, figure-8, omnidirectional, Blumlein, M/S, X/Y
• Frequency Response: 20 Hz – 20 kHz
• Self-Noise: 19 dB(A)
• SNR: 75 dB(A)
• Sensitivity: –35 dB / 18 mV/Pa
• THD + Noise: –116 dB
• Output Impedance: 50 Ω (@ 1 kHz)
• Power Requirement: 48 V DC phantom
• Output Connector: 5-pin XLR, split to four XLR3 via supplied Y-cables
• Weight: 1.697 lb (770 g)
• Dimensions: 11.9″ × 2.1″ (303 mm × 53 mm)

What's Included

• 1x Edge Quadro microphone
• 1x Luxury shock mount
• 2x oxygen-free copper Y-cables (5 m each)
• 1x Handcrafted wooden case
