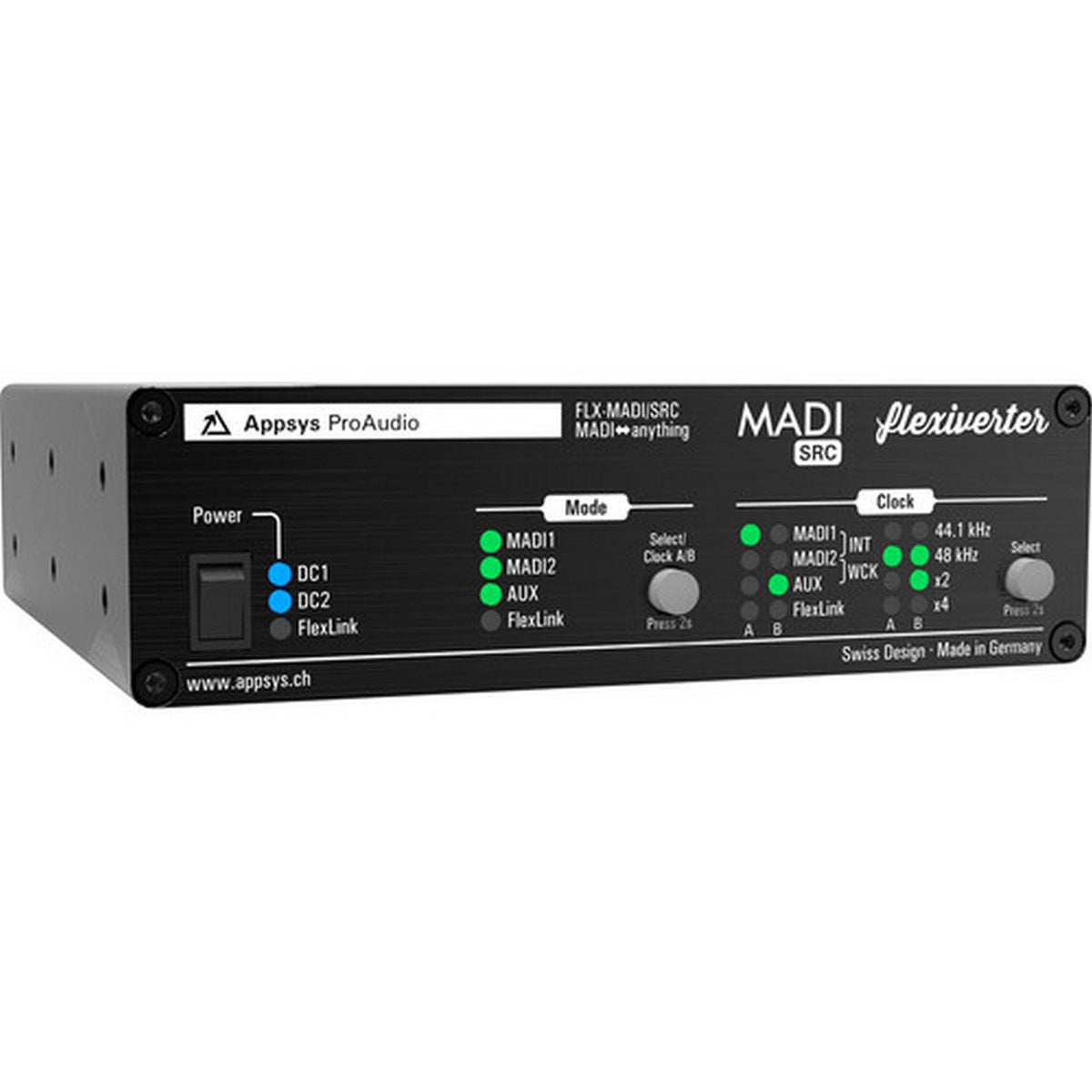

Appsys ProAudio Flexiverter FLX-MADI/SRC-SFP MADI Converter with SRC

Appsys ProAudio Flexiverter FLX-MADI/SRC-SFP MADI Converter with SRC

The Appsys ProAudio FLX-MADI/SRC-SFP MADI Converter is a compact digital audio converter for optical MADI workflows that need sample rate conversion, clock-domain separation, and flexible format expansion. It converts 64x64 channels of MADI, even at 96 kHz, to protocols supported through optional AUX cards.

Designed for broadcast, live sound, studio, and installation systems, this MADI optical converter helps engineers integrate separate digital audio networks without rebuilding the entire signal path. Use it to buy a MADI converter with SRC, expand a Flexiverter system, or connect optical MADI to Dante and other supported formats through the proper AUX card.

The FLX-MADI/SRC-SFP supports professional routing environments with two MADI SFP ports, built-in word clock input and output, USB remote control, and a FlexLink port for low-latency audio, clock, and power transfer. Its bidirectional 64x64-channel SRC can be bypassed when clock alignment is not required.

Key Features

• Optical MADI Conversion: Converts MADI optical signals to supported formats through the AUX expansion slot.
• 64x64-Channel SRC: Built-in bidirectional sample rate conversion supports high-channel-count digital audio workflows.
• Dual MADI SFP Ports: Two SFP ports accept any brand of SFP module for flexible optical MADI integration.
• Wide Sample Rate Support: Supports sample rates from 44.1 to 192 kHz on either side of the converter.
• Clock-Domain Separation: Works as a MADI-to-MADI bridge with full network and clock separation when paired with compatible dual MADI AUX cards.
• FlexLink Expansion: Transfers 192 channels of audio, clock, and power with low latency for larger Flexiverter systems.
• USB Remote Control: Provides browser-based USB control with no software required, plus UART command-line access.
• Redundant Power Design: Triple-redundant power supply support helps maintain operation in critical environments.

Technical Specifications

• Product Type: MADI-to-anything digital audio converter with sample rate conversion
• Model: FLX-MADI/SRC-SFP
• Built-In Audio Format: Optical MADI
• MADI Ports: 2 x MADI SFP ports
• SFP Compatibility: Accepts any brand of SFP module
• Sample Rate Conversion: 64x64-channel bidirectional SRC, bypassable
• MADI Conversion Capacity: 64x64 channels, including at 96 kHz
• Supported Sample Rates: 44.1 to 192 kHz
• Word Clock I/O: Built-in word clock input and output
• Expansion: AUX port for compatible format cards
• FlexLink: Bidirectional transfer of 192 channels of audio, clock, and power
• Remote Control: USB browser-based remote control or UART command line
• Performance: Greater than 120 dB THD+N; greater than 134 dB dynamic range
• Maximum Sampling Rate: 192 kHz / 24-bit
• Sync Sources: MADI and word clock
• Power Requirements: 12 to 16 VDC
• Power Consumption: 18 W
• Form Factor: Desktop; 1U half-rack size

What's Included

• Appsys ProAudio FLX-MADI/SRC-SFP Converter
