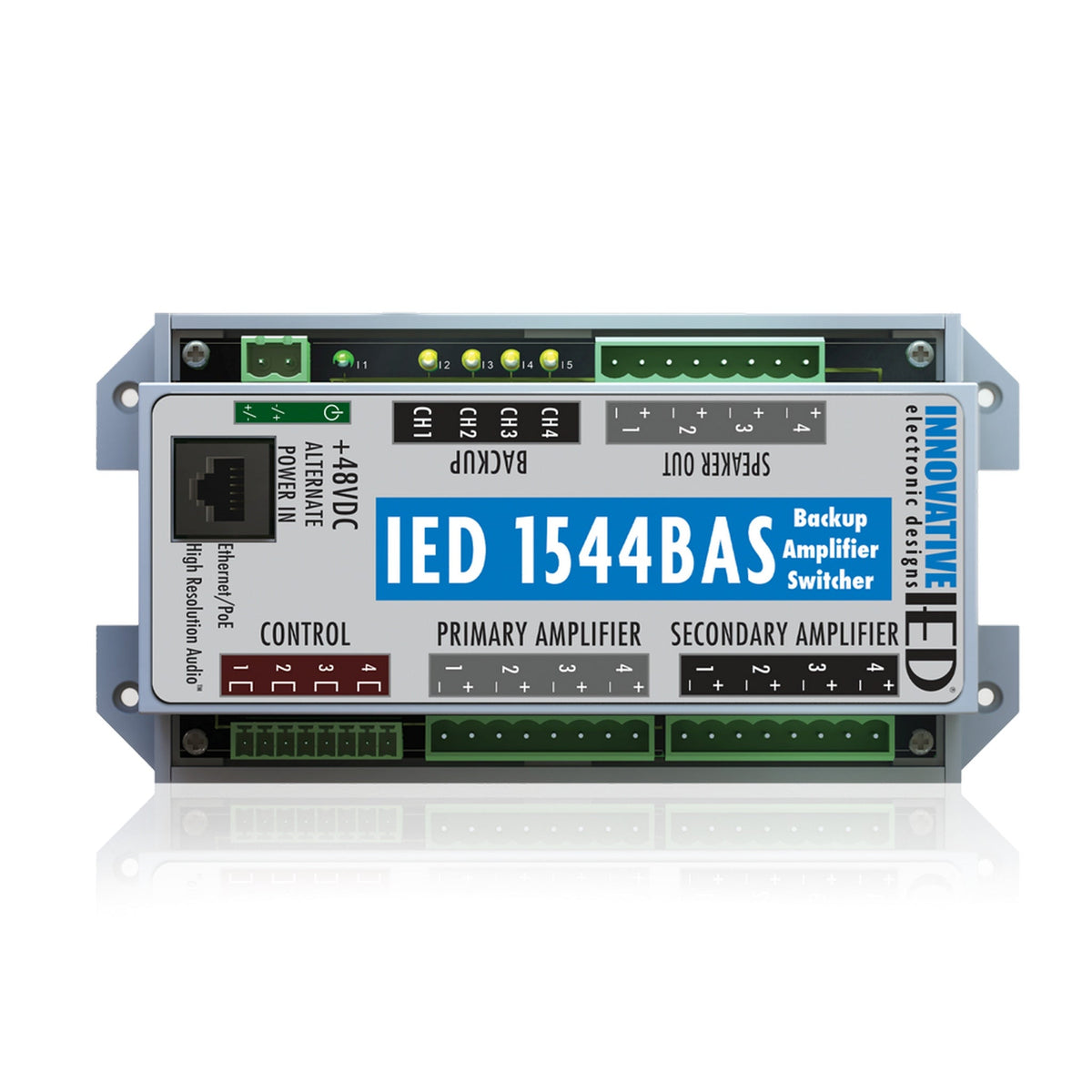

AtlasIED 1544BAS Four Channel Backup Amplifier Switch

AtlasIED 1544BAS 4-Channel Backup Amplifier Switching Module with PoE

The AtlasIED 1544BAS is a compact, network-enabled amplifier switching module designed to enhance system reliability in commercial AV installations. Capable of switching up to four speaker loads from a primary amplifier to a backup, this unit ensures uninterrupted audio delivery during amplifier failure. It operates in two modes—stand-alone via logic inputs or network-controlled through the GLOBALCOM® supervision sub-system.

Each of the four channels can be individually managed, and in network mode, multiple 1544BAS units can route multiple primary amplifiers to a shared backup. Power is delivered via IEEE 802.3af PoE or an optional +48VDC supply. Channel and power status LEDs provide instant visual diagnostics, and the rugged housing supports DIN-rail or panel mounting near amplifier racks for efficient deployment.

Key Features

• 4-Channel Switching: Transfers speaker loads from primary to backup amplifier
• Dual Operation Modes: Stand-alone logic or GLOBALCOM® network supervision
• PoE Powered: Supports IEEE 802.3af or external 48VDC power
• Status LEDs: Clear indicators for power and backup channel activation
• Compact Installation: Mounts to DIN rail or panel near amplifiers

Technical Specifications

• Dimensions: 7.01 × 3.50 × 2.00 inches (178 × 89 × 51 mm)
• Weight: 9.6 oz (272 g)
• Input Voltage: 48 VDC (PoE Compliant)
• Power Consumption: Max 4 Watts
• Max Switching Current: 8 Amps
• Operating Temperature: –22°F to +149°F (–30°C to +65°C)
