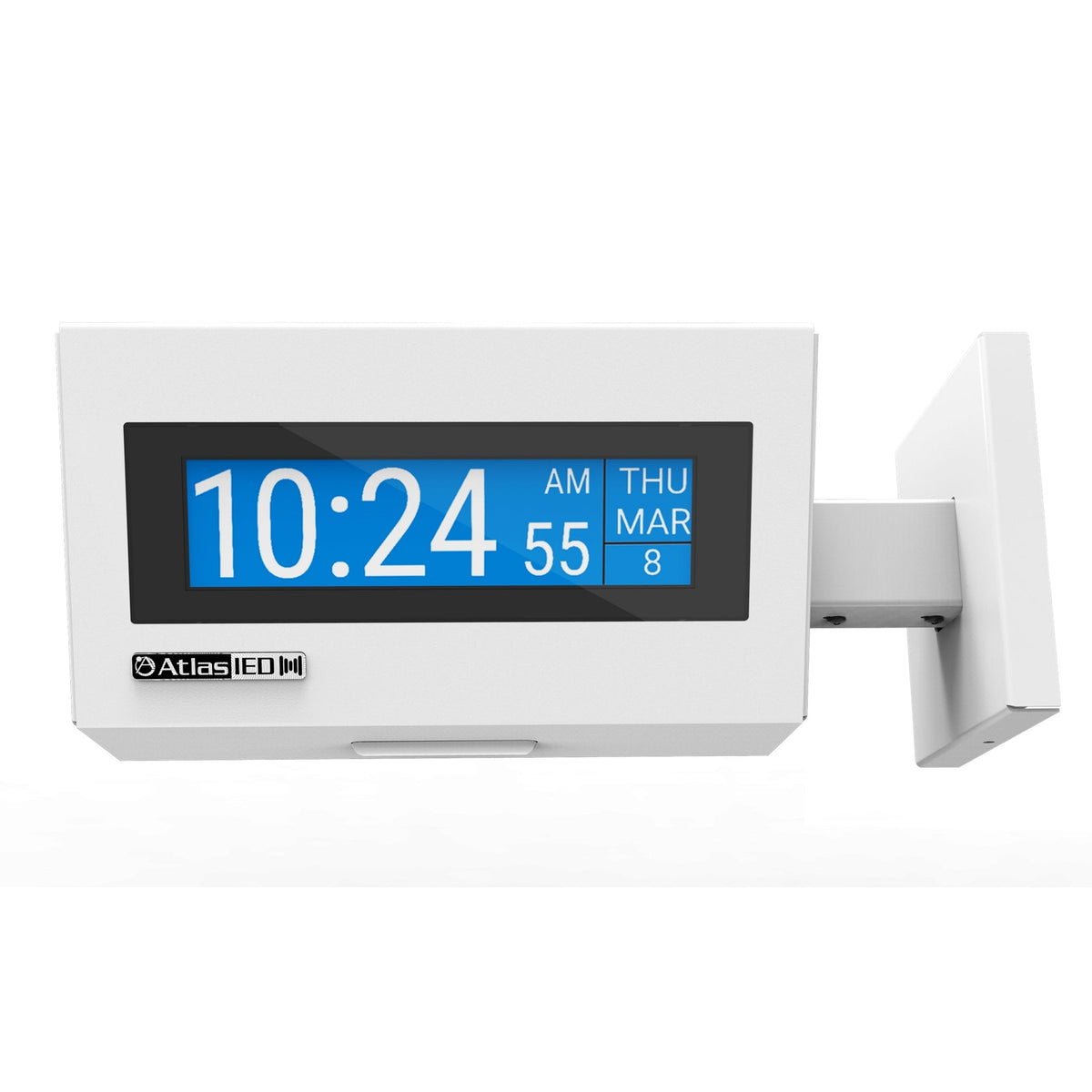

AtlasIED IP‑DD Dual‑Sided LCD Endpoint with LED Flasher
AtlasIED IP‑DD Dual‑Sided LCD Endpoint with LED Flasher The AtlasIED IP‑DD is a PoE+ dual‑sided indoor LCD endpoint featuring vibrant scrolling text, integrated LED flasher, and optional audio support via connected analog speakers. Designed for clear visual and audible communication in high-noise...
PRODUCT DETAILS
Everything you need to know.
AtlasIED IP‑DD Dual‑Sided LCD Endpoint with LED Flasher
The AtlasIED IP‑DD is a PoE+ dual‑sided indoor LCD endpoint featuring vibrant scrolling text, integrated LED flasher, and optional audio support via connected analog speakers. Designed for clear visual and audible communication in high-noise or large spaces.
This endpoint auto-registers with platforms like InformaCast, GCK, and Syn‑Apps Revolution, and also supports Cisco SRST environments. Its dual displays, led flasher, and PoE+ power make it ideal for corporate, education, healthcare, transportation, and industrial installations.
Key Features
- Dual High‑Res LCD Displays: Shows time, scrolling messages with 1900 cd/m² brightness
- LED Flasher: Multicolor ADA‑compliant alerting below displays
- PoE+ Powered: IEEE 802.3at compliance with optional 24 VDC backup
- SIP & VoIP Integration: Audio with optional analog 8 Ω speakers or line‑level output
- GPI/O Ports: 2 inputs and 1 relay output for triggers and control
Technical Specifications
- Model: IP‑DD
- Dimensions: 20.4 × 9.9 × 6.9 in (519 × 251 × 176 mm)
- Weight: 11.2 lbs (5.09 kg)
- Connectivity: RJ‑45 Ethernet (10/100Base‑T, VLAN tagging, SIP, NTP, HTTP GUI)
What's in the Box
- IP‑DD dual‑sided LCD endpoint
- Integrated LED flasher
- Mounting plate and hardware
