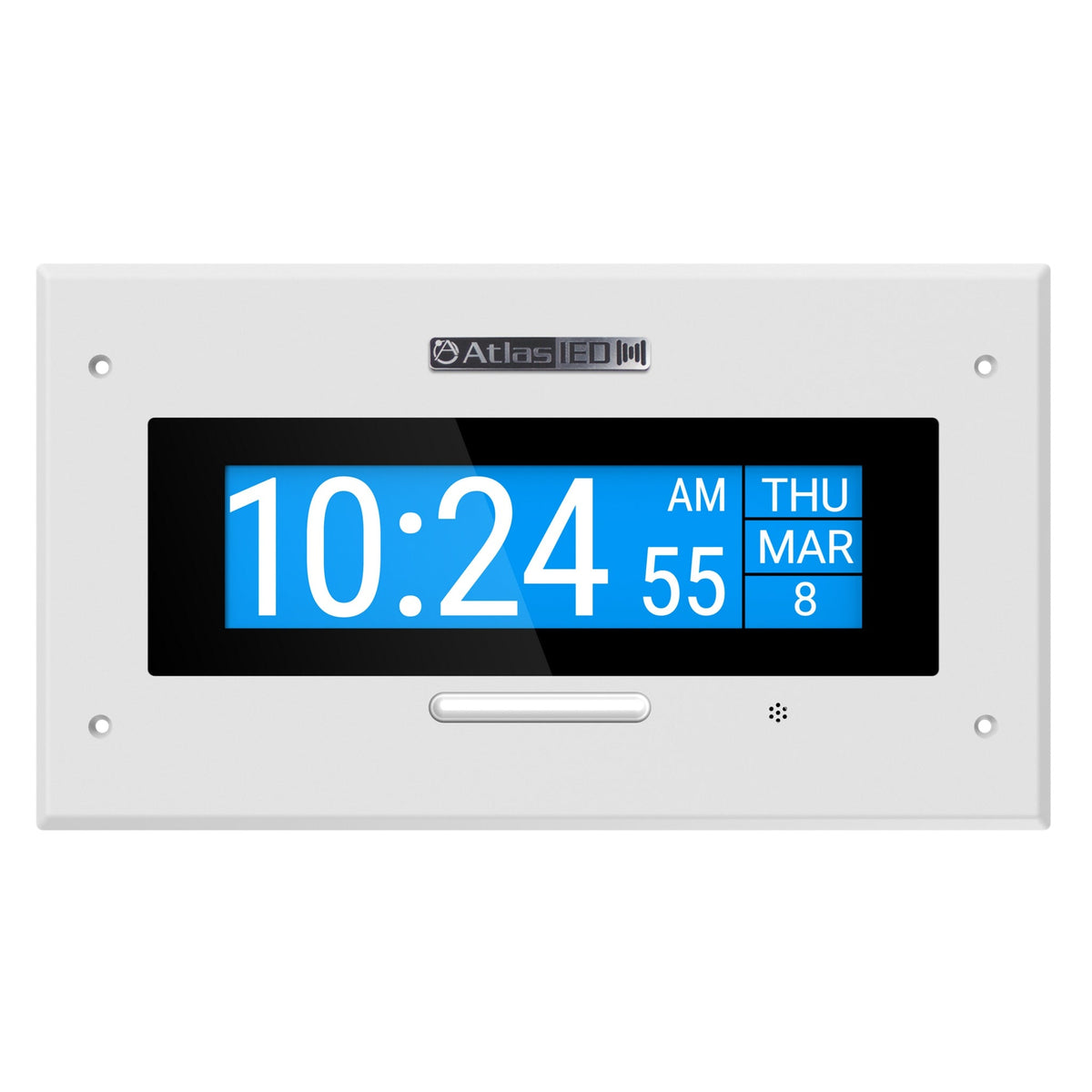

AtlasIED IP-DMF Wall‑Mount LCD Endpoint with Microphone and LED Flasher

AtlasIED IP-DMF Wall‑Mount LCD Endpoint with Microphone and LED Flasher

The AtlasIED IP-DMF is a versatile PoE+ wall-mount endpoint designed for indoor environments. It features a high-resolution LCD screen, integrated talkback microphone, LED flasher, and built-in amplifier that can drive two analog 8 Ω speakers—perfect for intercom, paging, or alerting applications.

Supporting major platforms like InformaCast, Syn‑Apps Revolution, Singlewire, and Cisco SIP environments, the IP-DMF seamlessly integrates into unified communication systems. Its ability to display scrolling text, clock, and emergency notifications—combined with network-controlled visuals and audio—makes it ideal for corporate, educational, healthcare, transportation hubs, and industrial facilities.

Key Features

• High‑Res LCD + LED Flasher: Clock, date, scrolling text alerts with ADA-compliant visual signals
• Integrated Talkback Microphone: Supports full-/half-duplex paging and intercom
• PoE+ Powered Amplifier: Drives up to two 8 Ω speakers, with balanced audio I/O
• GPI/O Control: 2 general-purpose inputs and 1 relay output (2 A @ 30 VDC) for remote triggering
• Network Integration: Auto-provisions via SLP, DHCP Option 72, IEDNet+; supports SIP, G.711/G.722 codecs, VLAN tagging

Technical Specifications

• Model: IP‑DMF
• Dimensions: 13.89 × 7.75 × 3.25 in (353 × 197 × 83 mm)
• Weight: 2.55 lbs (1.16 kg)
• Connectivity: RJ-45 PoE+, balanced audio I/O, built-in amplifier, LED flasher, microphone

What's in the Box

• IP‑DMF wall-mount endpoint
• LED flasher
• Talkback microphone
• Mounting hardware (enclosure sold separately)
