AtlasIED LBH-100 100W Compression Driver Speaker Siren
AtlasIED LBH-100 100W Compression Driver Siren Loudspeaker The AtlasIED LBH-100 is a rugged, high-output compression driver siren designed for emergency vehicles. Delivering 100 watts of sound power with an 80° x 105° dispersion angle, this speaker is ideal for police, fire, and...
PRODUCT DETAILS
Everything you need to know.

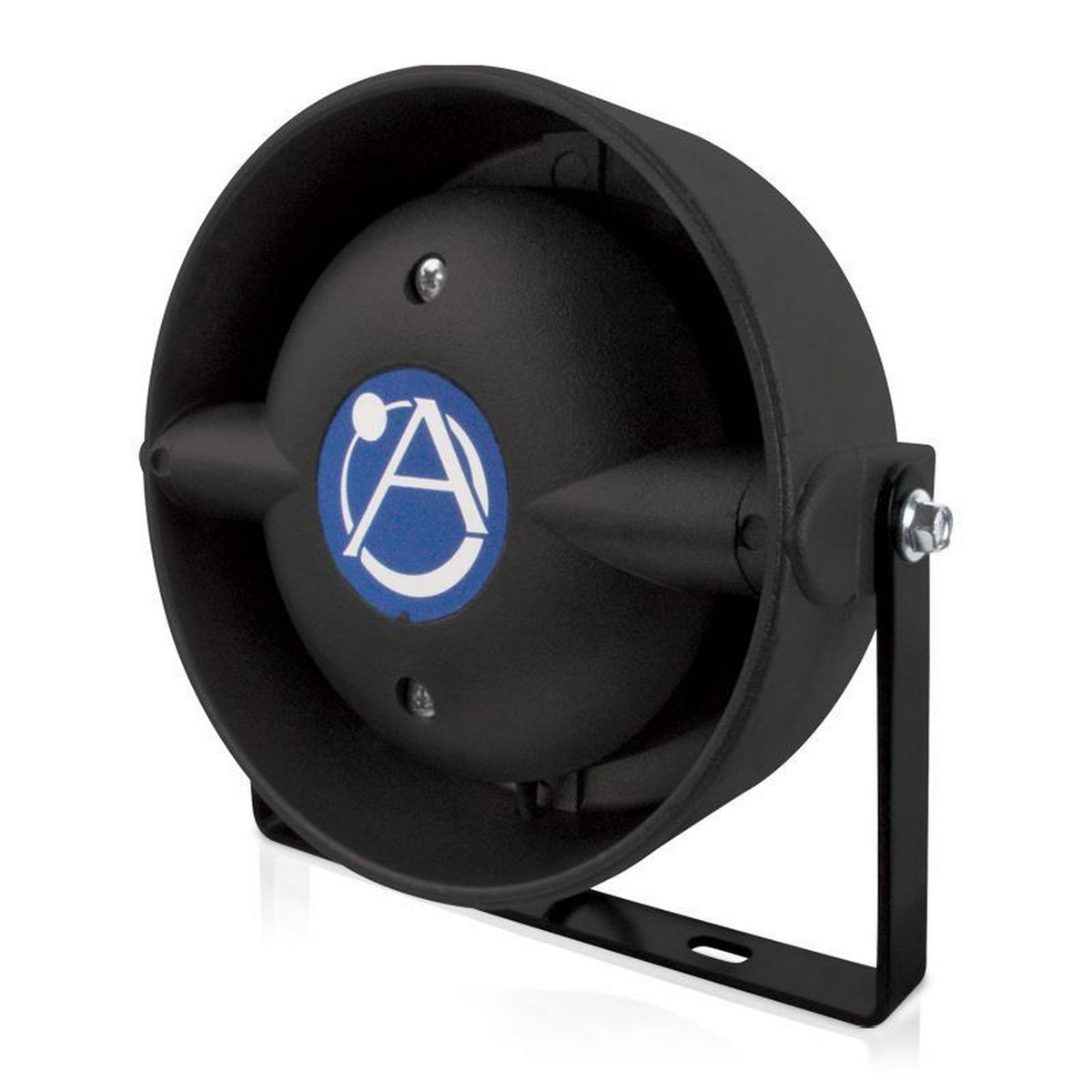

AtlasIED LBH-100 100W Compression Driver Siren Loudspeaker
The AtlasIED LBH-100 is a rugged, high-output compression driver siren designed for emergency vehicles. Delivering 100 watts of sound power with an 80° x 105° dispersion angle, this speaker is ideal for police, fire, and EMS applications requiring reliable audible warning systems.
Its lightweight cast aluminum housing and self-aligning sound chamber offer durable performance and ease of installation behind vehicle grilles. The speaker meets Class A sound levels and complies with key certifications including California Title 13, SAE J1849, and GSA KKK-A-1822D.
Key Features
- Power: 100W RMS for high-volume siren projection
- Dispersion: 80° x 105° coverage pattern
- Frequency Range: 650Hz to 20kHz
- Construction: Cast aluminum weatherproof housing
- Compliance: Meets SAE J1849, Title 13, GSA KKK-A-1822D standards
- Mounting: Includes universal bracket for behind-grille installs
Technical Specifications
- Dimensions: 6.5" × 6.5" × 2.25" (16.5 × 16.5 × 5.7 cm)
- Weight: 5.75 lbs (2.61 kg)
- Shipping Weight: 6.10 lbs (2.77 kg)
- Impedance: 11 ohms nominal
- Operational Frequency: 750Hz–2700Hz
- Total Frequency Range: 650Hz–20kHz (±10 dB)
What's Included
- LBH-100 loudspeaker
- Universal mounting bracket
