AtlasIED Q‑Series Speaker Enclosure
AtlasIED Q408 8-Inch Q-Series Cylindrical Speaker Enclosure The AtlasIED Q408 is a robust cylindrical enclosure designed to house standard 8″ loudspeakers. With a generous internal volume of 1 cubic foot (0.028 m³) and thick fiberglass lining, it enhances bass response while reducing...
PRODUCT DETAILS
Everything you need to know.

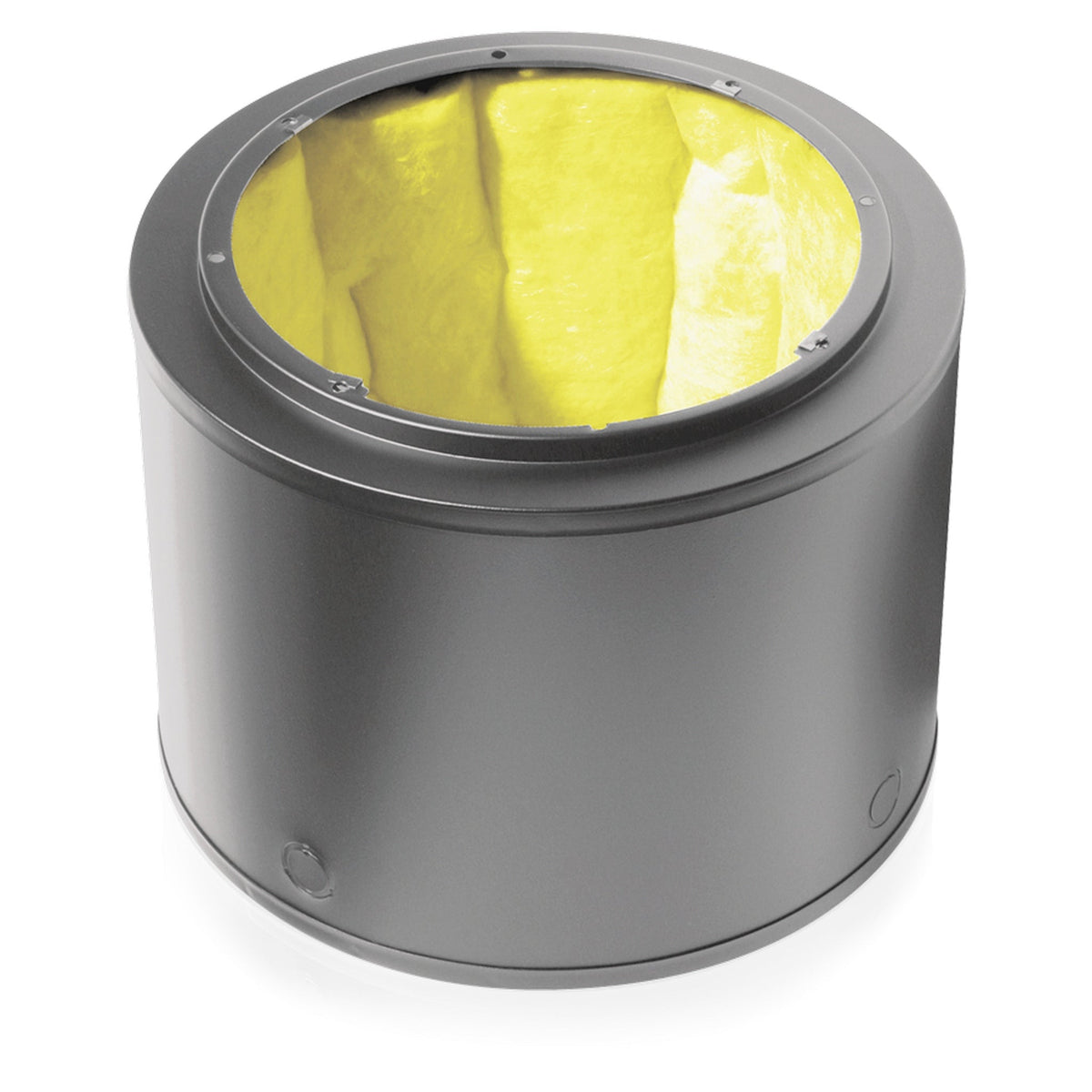

AtlasIED Q408 8-Inch Q-Series Cylindrical Speaker Enclosure
The AtlasIED Q408 is a robust cylindrical enclosure designed to house standard 8″ loudspeakers. With a generous internal volume of 1 cubic foot (0.028 m³) and thick fiberglass lining, it enhances bass response while reducing metallic resonance.
Constructed from welded cold-rolled steel with a galvanized finish and textured black epoxy interior, the Q408 includes a plaster flange and knockout provisions for mounting architecturally styled grilles—ideal for commercial or architectural audio installations.
Key Features
- Internal Volume: 1 ft³ (0.028 m³)
- Construction: Welded CRS with galvanized finish
- Interior Liner: 1½″ (38 mm), 1½ lb/ft³ fiberglass + sound-deadening undercoat
- Mounting System: Plaster flange with multiple grille compatibility
- Finish: Textured black epoxy (interior)
- Applications: Retail, hotels, lounges, meeting rooms, etc.
Technical Specifications
- Speaker Size Compatibility: 8″ (203 mm)
- Diameter: 14 3/8″ (36.51 cm)
- Height: 14.375″ (36.51 cm)
- Depth: 10 1/2″ (26.67 cm)
- Internal Volume: 1 ft³ (0.028 m³)
- Weight (net): 7 lb (3.18 kg)
- Shipping Weight: 8.33 lb (3.78 kg)
- Material: Galvanized cold-rolled steel (CRS)
- Interior Lining: Fiberglass + undercoat
- Knockouts: Four ½″-1″ combination for wiring
- Finish: Textured black epoxy inside
- Safety Listing: UL 1480 compliant
What's Included
- Cylindrical enclosure with plaster flange
- Factory-installed fiberglass and sound-deadening undercoat
