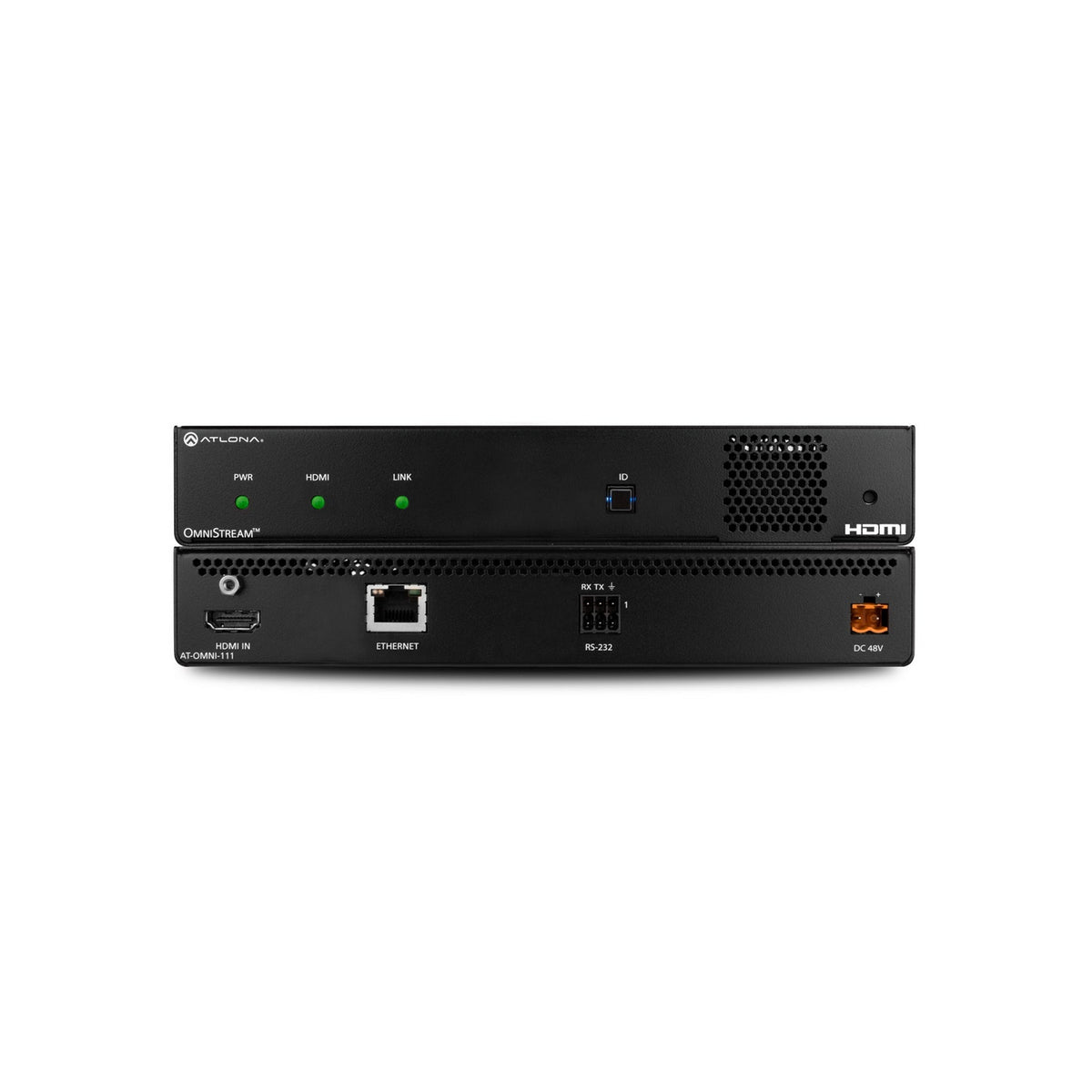

Atlona AT-OMNI-111 Networked AV Encoder

Atlona AT-OMNI-111 Networked AV Encoder

The Atlona AT-OMNI-111 is a professional-grade networked AV encoder designed for high-performance, low-latency 4K/60 4:4:4 video distribution over standard Gigabit Ethernet networks. Part of the -OmniStream™ platform, it delivers exceptional quality and reliability for large-scale AV over IP systems in enterprise, education, and commercial environments. The OMNI-111 encodes HDMI® sources up to 4K/UHD with embedded audio, HDR, and control pass-through (RS-232 or IR), using the advanced -VCx™ codec for artifact-free performance and ultra-low latency of less than one frame.

Engineered for scalability and efficiency, the OMNI-111 supports -dual simultaneous encoding of 4K/60 4:4:4 and 1080p streams, ideal for multiview applications, overflow rooms, and hybrid streaming setups. With features such as -HDCP 2.2 compliance, -Ethernet link testing, and -Velocity™ Device Manager integration for centralized configuration and management, the OMNI-111 ensures seamless AV network deployment and monitoring. The unit supports -PoE powering and advanced network security standards including -IEEE 802.1x authentication.

Key Features

• High-Performance AV over IP: Streams 4K/60 4:4:4 video with HDR10, HLG, and Dolby Vision™ over Gigabit Ethernet.
• Dual Encoding Engines: Simultaneous 4K/60 and 1080p streams for multiview or secondary feed applications.
• VCx™ Codec: Delivers artifact-free presentation for graphics, fast motion, and fine detail with ultra-low latency (<8 ms).
• Advanced Video Features:Integrated scaling, EDID and HDCP management, and customizable logo or slate overlays.
• Control Pass-Through: Bidirectional RS-232 and IR for seamless device integration.
• Flexible Powering: Operates via PoE (IEEE 802.3af) or optional 48V DC power supply.
• Network Security: Supports IEEE 802.1x authentication, HTTPS, SSH, AES-128 encryption, and IGMPv2/v3 multicast.
• Thumbnail Previews: Live stream preview via web GUI or Velocity™ AV control interface.
• Fast Stream Switching: Sub-frame latency for real-time collaboration and live presentation environments.
• OmniStream Ecosystem: Compatible with the Atlona OMNI-121 decoder and other OmniStream products.

Technical Specifications

• Video Input: HDMI (Type A, locking)
• Maximum Resolution: 4096×2160 (DCI) @ 30/24 Hz; 3840×2160 (UHD) @ 60/50/30/25/24 Hz
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 (codec dependent)
• Color Depth: 8-bit, 10-bit, 12-bit
• HDR Support: HDR10, HLG, Dolby Vision™
• Audio Pass-Through: LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X®
• Compression: VCx and VC-2 (SMPTE-2042)
• Bit Rate: Configurable up to 900 Mbps
• Latency: <8 ms (standard), <24 ms (fast switching mode)
• Audio Streaming: RTP and AES67 up to LPCM 7.1 channels
• Network Protocols: RTP, HTTPS, SSH, Telnet, WebSockets with TLS, IGMPv2/v3, QoS (RFC 2475)
• Security: AES-128 encryption, IEEE 802.1x (PEAP/MSCHAPv2 or EAP-TLS)
• Connectors: 1 × HDMI (input), 1 × RJ45 (Ethernet), 1 × 6-pin captive screw (RS-232/IR), 1 × 2-pin power
• Indicators: Power, HDMI, and Link LEDs
• Power: PoE (IEEE 802.3af) or external 48V DC / 0.83A adapter
• Power Consumption: Up to 12 W (40.9 BTU/hr)
• Cooling: Front-to-rear, temperature-controlled fans
• Operating Temperature: 14–122°F (-10–50°C)
• Dimensions (H×W×D): 1.34 × 8.19 × 4.41 in (34 × 208 × 112 mm)
• Weight: 1.5 lb (0.7 kg)
• Certifications: CE, FCC, CB, RoHS, TAA, NDAA-899
