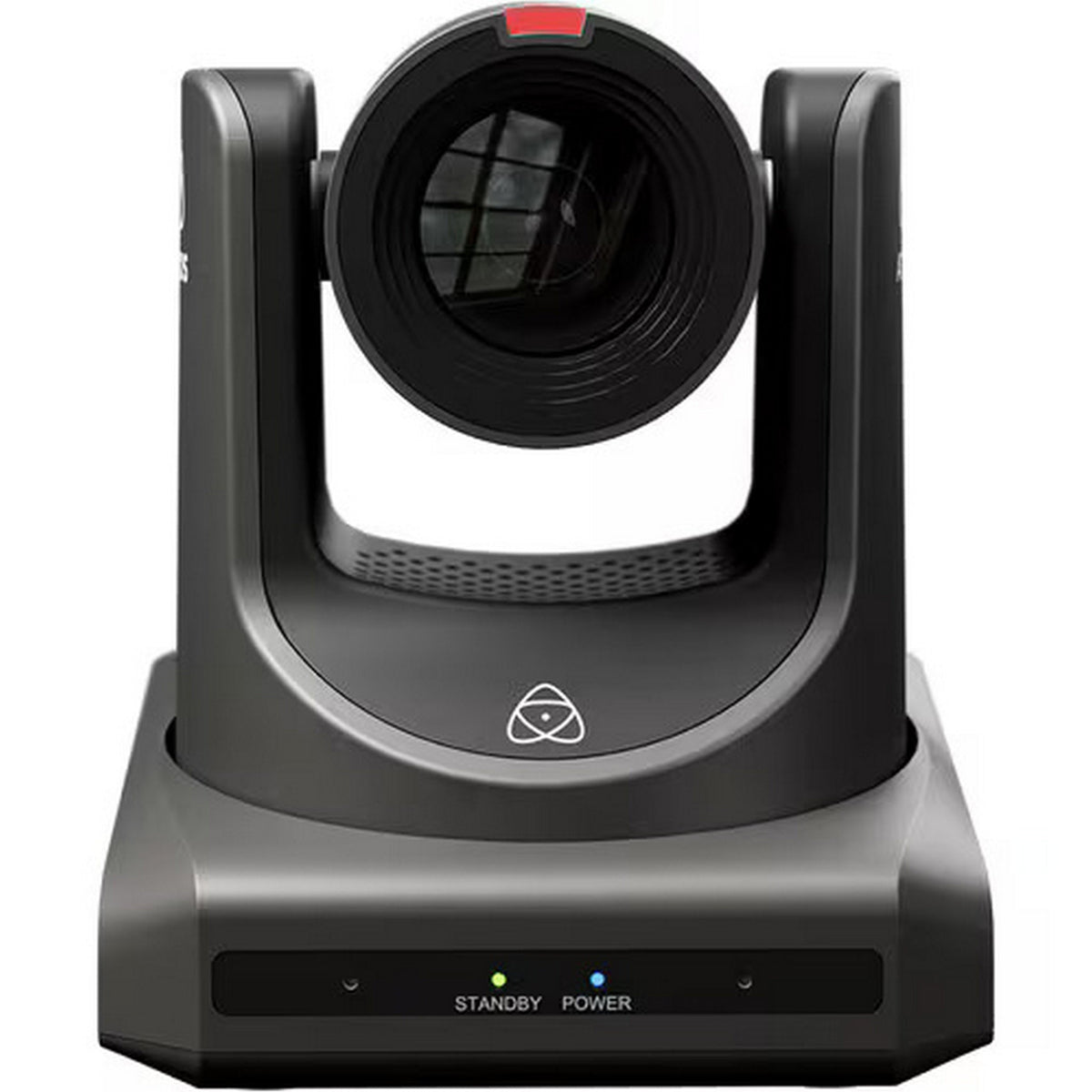

Atomos A-Eye 4K-12X PTZ Camera

Atomos A-Eye 4K 12x PTZ Camera

The Atomos A-Eye 4K 12x PTZ Camera delivers exceptional Ultra HD video quality with smooth pan, tilt, and zoom functionality for professional AV and streaming applications. Featuring a 12x optical zoom lens, this camera captures crisp details even at a distance, making it ideal for corporate events, worship services, educational environments, and live productions. The 4K UHD resolution ensures vibrant and accurate images, while the compact design allows for flexible mounting and discreet positioning.

Designed for seamless integration, the A-Eye 4K 12x offers simultaneous HDMI, 3G-SDI, and IP video outputs, with support for RTSP, RTMP, and SRT streaming protocols. It supports multiple control standards including VISCA, Pelco-D/P, and ONVIF, and is powered by either a DC input or Power over Ethernet (PoE) for simple, single-cable installation. With a wide 73-Degree field of view and support for H.264/H.265 compression, this PTZ camera delivers professional-grade video performance across a variety of platforms and systems.

Key Features

• Ultra HD 4K resolution at 30fps
• 12x optical zoom with wide 73-Degree field of view
• Simultaneous HDMI, 3G-SDI, and IP streaming outputs
• H.264 and H.265 compression support
• Supports VISCA, Pelco-D/P, ONVIF control protocols
• Compatible with RTSP, RTMP, and SRT streaming standards
• Power over Ethernet (PoE) and DC power input options
• Quiet and precise motorized pan/tilt/zoom mechanism

Technical Specifications

• Resolution: 3840 x 2160 (4K UHD at 30fps)
• Optical Zoom: 12x
• Field of View: 73-Degree (Wide)
• Video Outputs: HDMI, 3G-SDI, IP
• Streaming Protocols: RTSP, RTMP, SRT
• Compression Formats: H.264, H.265
• Control Protocols: VISCA, Pelco-D/P, ONVIF
• Power: PoE / DC Power Supply
• Dimensions: 6.4-Inch x 6.6-Inch x 6.5-Inch
• Weight: 2.64 lbs

What’s in the Box

• 1x A-Eye 4K 12x PTZ Camera
• 1x Power Supply
• 1x IR Remote Control
• 1x User Manual
• 1x RS232 Cable
• 1x Mounting Bracket
