Audix M3GDK Dante/AES67 Microphone Interface Kit

Audix M3GDK Dante/AES67 Microphone Interface Kit

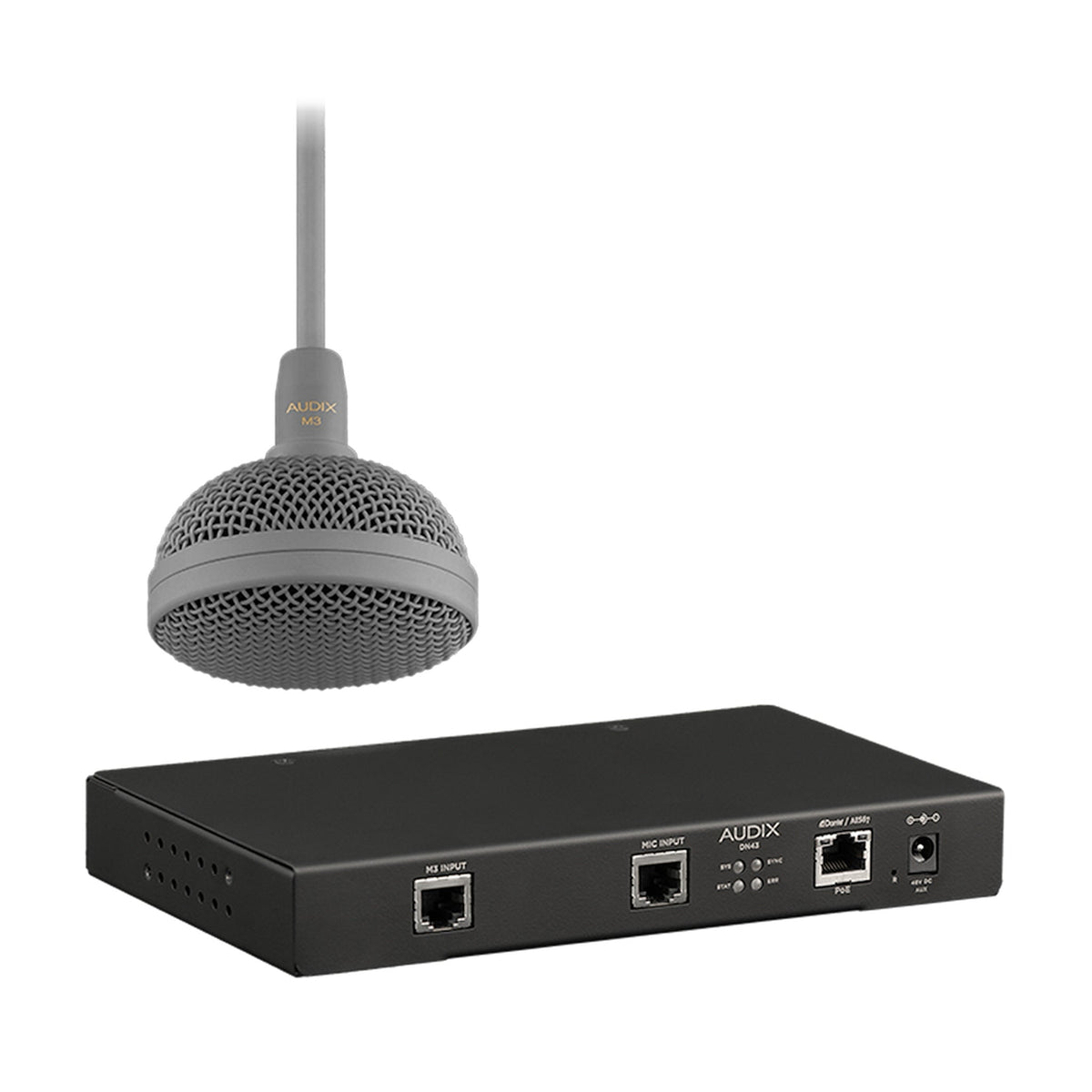

The Audix M3GDK is a comprehensive microphone and interface kit designed to seamlessly integrate into Dante and AES67 audio-over-IP networks. This system combines the Audix M3 tri-element hanging ceiling microphone with the DN43 Dante/AES67 microphone interface, offering a streamlined solution for high-quality audio capture in networked environments. Ideal for applications such as video conferencing, distance learning, courtroom audio, and ambient room monitoring, the M3GDK ensures clear and intelligible sound reproduction.

Featuring a tri-element design, the M3 microphone utilizes three phase-coherent hypercardioid capsules, delivering a tailored frequency response optimized for speech clarity and effective rejection of ambient noise. The accompanying DN43 interface supports 24-bit, 48 kHz audio resolution and offers two microphone ports: one dedicated to the M3 microphone and another for single-element microphones with RJ45 connectors. The interface also provides selectable pre-amp gain, low- and high-pass filters, and supports Power over Ethernet (PoE) for simplified installation.

Key Features

• Integrated System: Combines M3 microphone and DN43 interface for a complete Dante/AES67 solution.
• High-Quality Audio: Supports 24-bit, 48 kHz audio resolution for clear and accurate sound capture.
• Flexible Connectivity: Includes one M3 microphone port and one RJ45-equipped single-element microphone port.
• Adjustable Gain and Filters: Features selectable pre-amp gain and low-/high-pass filters for optimal sound tailoring.
• Power over Ethernet: Operates via PoE, reducing cable clutter and simplifying installation.
• Logic Inputs/Outputs: Provides logic inputs and outputs for LED status indicators and button controls.
• UL2043 Compliance: Evaluated for suitability in above-ceiling applications, adhering to UL2043 standards.

Technical Specifications

• Microphone Type: Condenser, Tri-Element
• Polar Pattern: Hypercardioid
• Frequency Response: 30 Hz – 19 kHz (Tailored)
• Impedance: 150 Ohms
• Sensitivity: 34 mV / Pa @ 1 kHz
• Maximum Input Level: -14 dBu, 155 mV (0 dB Gain)
• Input Impedance (Balanced): 1.15 kΩ
• Interface Frequency Response: 15 Hz – 22 kHz, ±0, -3 dB
• Channel Crosstalk: < -80 dB (1 kHz)
• Dante/AES67 Channels: 4
• Gain Options: 0 dB, +8 dB, +12 dB, +15 dB, +18 dB, +24 dB, +30 dB, +36 dB
• Power Requirements: 48 VDC, 125 mA (External DC Jack or PoE)
• Operating Temperature: 50 °F to 122 °F (10 °C to 50 °C)
• Dimensions (Interface): 1.1 x 8.0 x 4.9 inches (2.8 x 20.2 x 12.5 cm)
• Weight (Interface): 1.39 lbs (0.63 kg)
• Dimensions (Microphone): Diameter: 2 inches (5.08 cm), Length: 1.2 inches (3.05 cm)
• Weight (Microphone): 3.32 oz (94.2 g)

What's in the Box

• 1x M3 Tri-Element Ceiling Microphone (Gray)
• 1x DN43 Dante/AES67 Microphone Interface
• 1x 3 ft. Plenum-Rated CAT6A Shielded Cable
• 2x 1.56 mm / 0.063 inch Seismic and Fire Cable Restraints
• 1x JBM3 Plenum-Rated Junction Box
