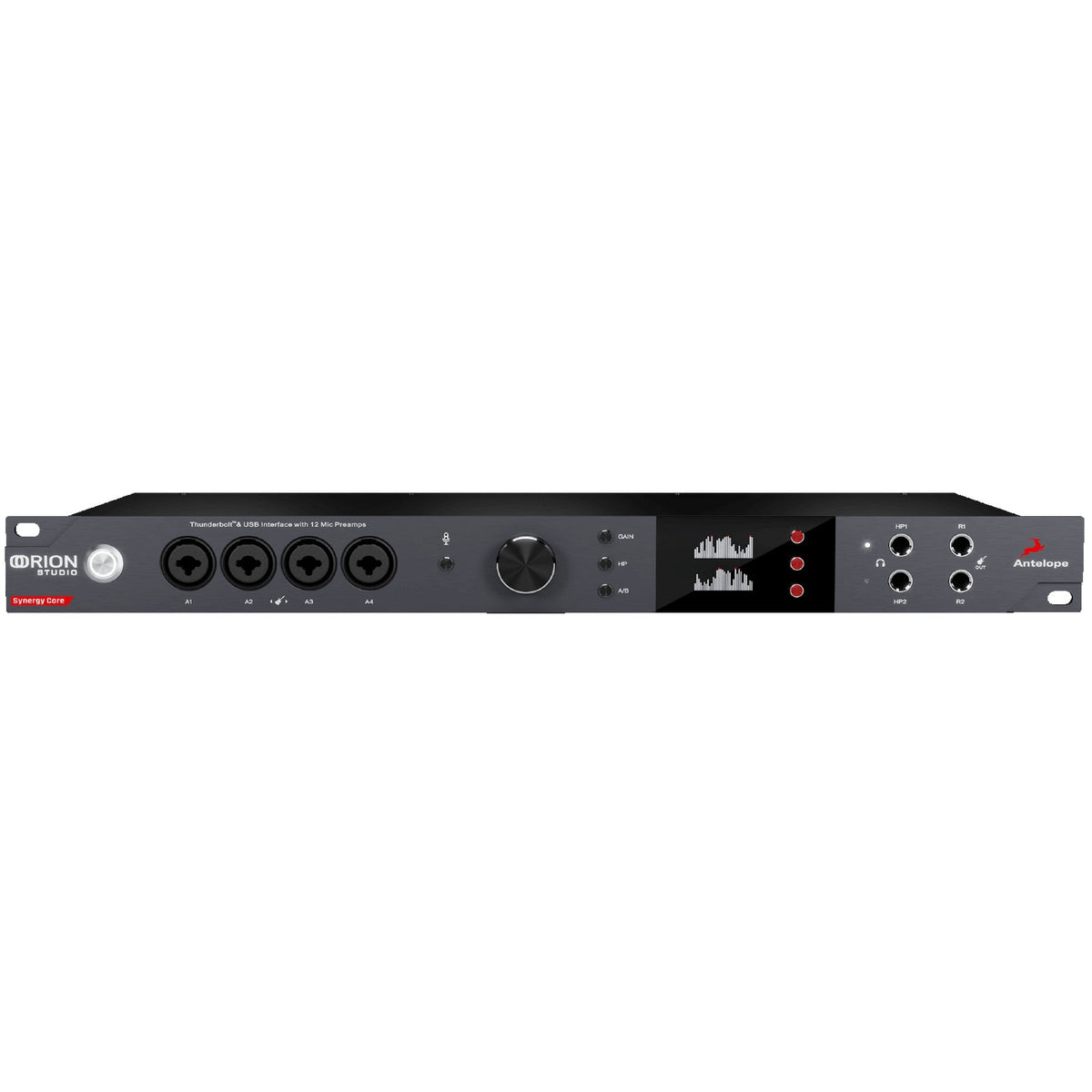

Antelope Audio Orion Studio Synergy Core Audio Interface
In stock SKU: ANTEL-ORIONSTUDIOSYNERGYCORE

ToneCraft Gear

Antelope Audio Orion Studio Synergy Core Audio Interface

$2,246.25

Antelope Audio Orion Studio Synergy Core Audio Interface This is a professional rackmount Thunderbolt 3 and USB 2.0 audio interface designed for Mac and Windows. It offers unmatched sound quality via 12 discrete ultra-linear mic preamps, DC-coupled I/O, and a powerful Synergy...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Antelope Audio Orion Studio Synergy Core Audio Interface

This is a professional rackmount Thunderbolt 3 and USB 2.0 audio interface designed for Mac and Windows. It offers unmatched sound quality via 12 discrete ultra-linear mic preamps, DC-coupled I/O, and a powerful Synergy Core FX engine featuring 2 FPGA + 6 DSP processors for low-latency real-time effects.

Featuring 32 × 32 I/O over Thunderbolt (24×24 over USB), expandable via ADAT/S/PDIF, and equipped with world-class conversion (up to 24-bit/192 kHz with up to 130 dB dynamic range), this device is tailored for immersive and surround monitoring setups. It includes virtual patchbay, low-latency mixers, and a fully customizable control panel.

Key Features

  • Interface Type: Rackmount, Thunderbolt 3 and USB 2.0 connectivity
  • Mic Preamps: 12 discrete ultra-linear preamps with 75 dB gain, Mic/Line/Hi-Z/Direct-In options (front/back panel)
  • Inserts: Two analog inserts on Preamp 1 & 2
  • Sampling: Up to 24-bit/192 kHz resolution
  • Conversion & Clocking: Best-in-class AD/DA converters with up to 130 dB dynamic range and 64-bit Acoustically Focused Clocking jitter management
  • FX Processing: Synergy Core real-time FX with 2 FPGA and 6 DSP processors, includes 50+ legendary audio effects
  • I/O Flexibility: 16 analog line outputs (via DB25), S/PDIF & ADAT expansion, 2 headphone outs, 2 monitor outputs, 2 Re-amp outputs
  • Routing & Monitoring: Virtual patchbay, low-latency mixer, direct monitoring, customizable presets
  • Immersive Audio Ready: Compatible with Atmos-Ready system with room calibration, supports over 23 audio formats (stereo to Dolby Atmos)

Technical Specifications

  • Channels: Up to 32×32 via Thunderbolt, 24×24 via USB
  • Analog Inputs: 12 mic preamps; 4 are Hi-Z compatible for instrument inputs
  • Analog Outputs: 16 line outputs (DB25), 2 monitor (TRS), 2 headphone, 2 Re-amp outputs
  • Digital I/O: 2× ADAT (up to 16 channels in/out), 1× S/PDIF in/out
  • Clock I/O: Word Clock I/O (BNC), 4th gen Acoustically Focused Clocking
  • Sample Rates: 44.1 to 192 kHz
  • FX Units: 2 FPGA + 6 DSP processors
  • Effects Included: 50+ Synergy Core real-time FX
  • Operation: Not bus-powered (external PSU included)
  • Extras: DC-coupled I/O for CV control of modular synths
  • Build: Rackmount 1U, hand-assembled in Europe
  • Processing Integration: AFX2DAW plugin support
