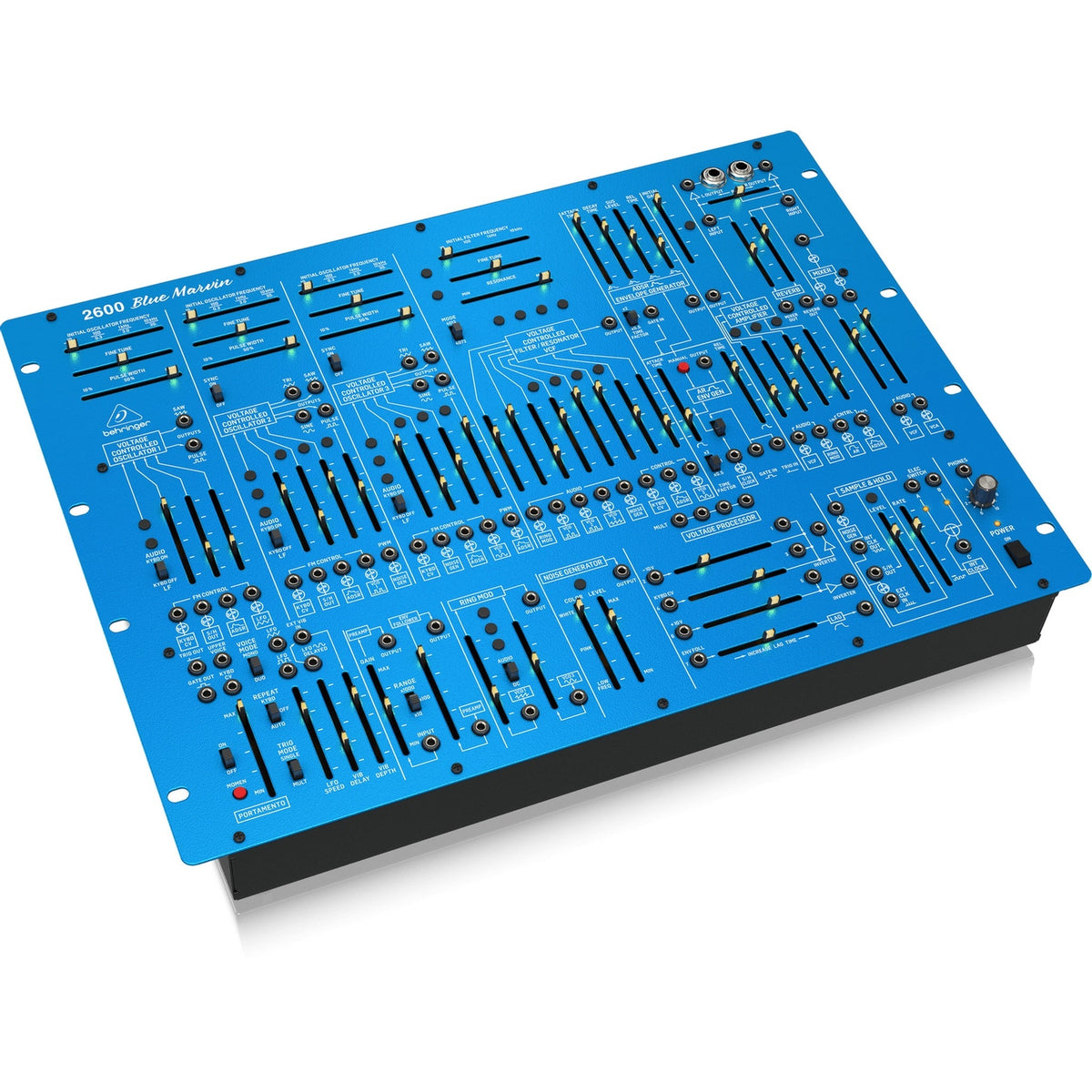

Behringer 2600 Blue Marvin Semi Modular Analog Synthesizer

Behringer 2600 Blue Marvin Semi Modular Analog Synthesizer

Behringer 2600 Blue Marvin is a semi modular analog synthesizer designed for studio production and performance environments. It enables analog sound generation, processing, and modulation for musicians and sound designers, supporting hands-on synthesis workflows. This makes it ideal for creative setups where flexible routing and classic analog architecture are critical.

The synthesizer operates with a semi modular architecture that functions without patching while offering extensive patch points for advanced routing. Multiple oscillators, filters, envelope generators, and modulation sources are integrated into a unified signal path. External audio and control sources can be incorporated through dedicated inputs.

This design supports sound design, performance, and experimental synthesis techniques. It can be used as a standalone instrument or integrated into modular and MIDI based systems. The unit provides extensive real-time control and connectivity.

Key Features

• Classic Semi Modular Design: Operates without patching while supporting extensive external routing
• Triple VCO Architecture: Three analog oscillators with multiple waveform outputs
• Multi Mode Filter Section: Low pass high pass band pass and notch filtering options
• Integrated Spring Reverb: Mechanical spring reverb for analog effects processing
• Extensive Modulation: Includes ring modulator sample and hold envelope follower and LFOs
• Hands On Control: Seventy eight front panel controls and ninety three patch points

Technical Specifications

Inputs
VCO 1 / 2 / 3 frequency modulation control: 11 x 3.5 mm TS jacks, CV range -10 V to +10 V
Pulse width modulation: 2 x 3.5 mm TS jacks, CV range -5 V to +5 V, 1 V per 10 percent
VCF audio: 5 x 3.5 mm TS jacks, 50 kΩ unbalanced
VCF control: 3 x 3.5 mm TS jacks, CV range -10 V to +10 V
S and H clock: 1 x 3.5 mm TS jack, threshold greater than 6 V
Gate in: 1 x 3.5 mm TS jack, threshold +4 V
Trig in: 1 x 3.5 mm TS jack, threshold +5 V
VCA audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
VCA control linear: 1 x 3.5 mm TS jack, CV range -10 V to +10 V
VCA control exponential: 1 x 3.5 mm TS jack, CV range -10 V to +10 V
Mixer and reverb audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
LFO external vibrato input: 1 x 3.5 mm TS jack, 50 kΩ unbalanced
Envelope follower input: 1 x 3.5 mm TS jack, 100 kΩ unbalanced
Ring modulator inputs: 2 x 3.5 mm TS jacks, 100 kΩ unbalanced
Voltage processor inputs: multiple 3.5 mm TS jacks, max input level +10 V
Sample and hold inputs: noise generator and external clock inputs
Back panel interval latch: 1 x 1/4 inch TRS
Portamento footswitch: 1 x 1/4 inch TRS

Outputs
VCO outputs saw pulse triangle and sine via multiple 3.5 mm TS jacks
VCF output: 1 x 3.5 mm TS jack, 1 kΩ unbalanced
Envelope generator outputs: 2 x 3.5 mm TS jacks, CV range 0 V to +10 V
VCA output: 1 x 3.5 mm TS jack, 1 kΩ unbalanced
Mixer and reverb outputs: multiple 3.5 mm TS jacks and 1/4 inch TS outputs
LFO outputs: triangle square and delayed sine outputs
Envelope follower outputs: multiple gain scaled outputs up to +60 dBu
Ring modulator output: 1 x 3.5 mm TS jack, -10 V to +10 V
Noise generator output: 1 x 3.5 mm TS jack, -10 V to +10 V
Sample and hold outputs: internal clock and S and H outputs
Keyboard and portamento outputs: CV gate and trigger outputs
Headphones output: 1 x 1/8 inch TRS jack, stereo

Power Requirements
Voltage: 12 V DC

Physical
Eurorack format: 8U rack mount
Eurorack width: 80 hp
