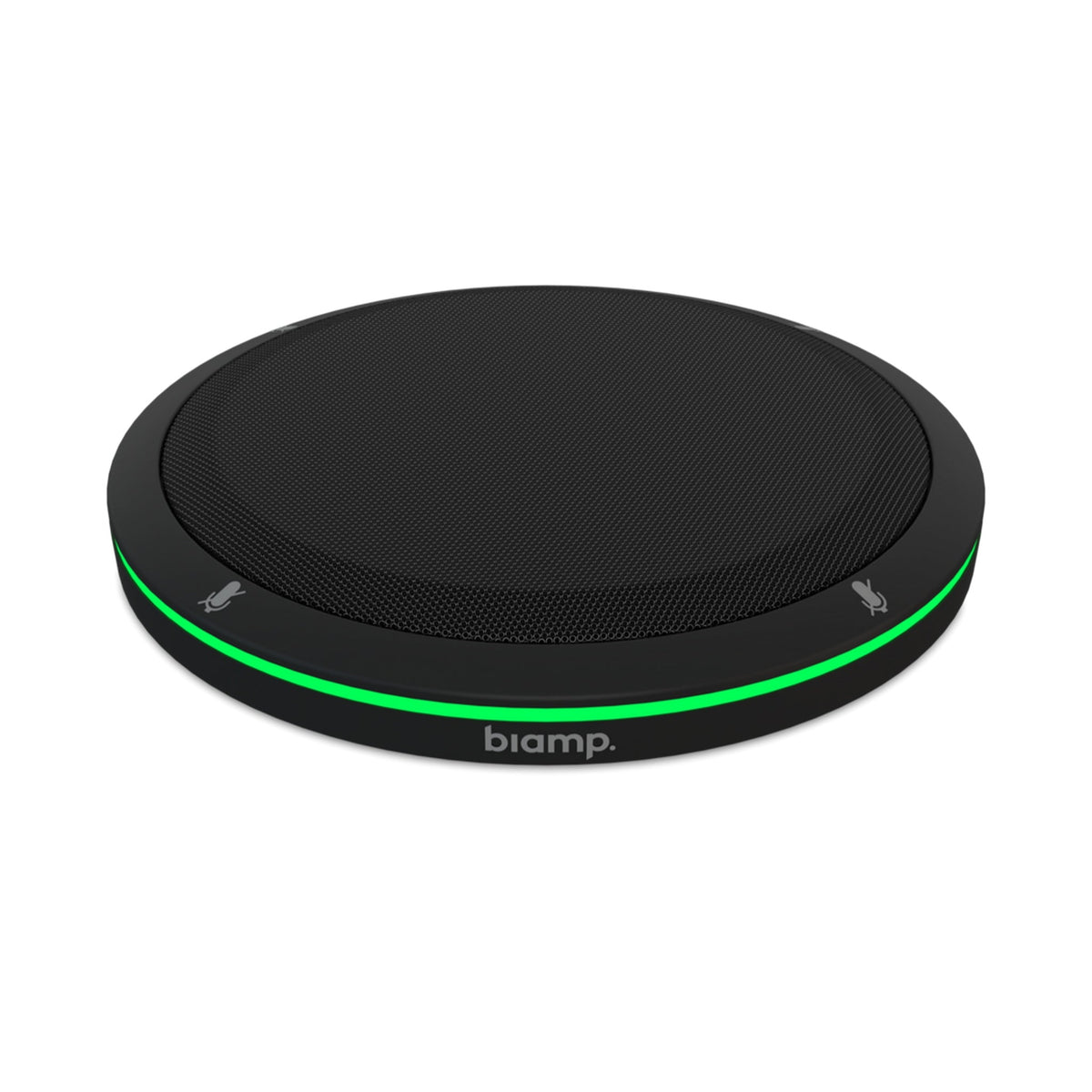

Biamp Parle TTM-X Tabletop Beamtracking Microphone

The Parlé TTM-X is a low-profile Beamtracking tabletop microphone engineered for seamless integration into Biamp Tesira systems. Designed to blend unobtrusively into conferencing environments, it delivers exceptional clarity with full 360-degree pickup coverage using advanced Beamtracking technology.

This microphone actively tracks and intelligently mixes conversations across four 90-degree zones, ensuring remote participants experience natural dialogue pickup from anywhere around the table. Built with an integrated DSP module through its included network box, the TTM-X requires no manual lobe aiming or mapping for consistent performance out of the box.

Ideal for boardrooms, conference spaces, and collaborative environments, the TTM-X is powered via PoE, offers simple single-cable setup, and supports daisy-chaining with a TTM-XEX unit for expanded coverage, making it a versatile solution for modern AV deployments.

Key Features

• Low-profile tabletop Beamtracking microphone with 360-degree coverage
• Four 90-degree pickup zones for accurate conversation tracking
• Integrated DSP module in the included network box
• Single cable (PoE) setup with additional RJ-45 port for TTM-XEX expansion
• LED mute status indicator for visual feedback
• Available in black or white finishes
• Covered by a 5-year warranty

Technical Specifications

• Microphone Technology: 16-element digital array
• Frequency Response: 150 Hz – 16 kHz (± 3 dB)
• Maximum SPL: 109 dB (0.5% THD)
• Dimensions: 4.3 in × 0.7 in (Ø × H) microphone
• Power: PoE (IEEE 802.3at Class 3), 15.4W
• Sensitivity: >74 dB (94 dB SPL, 1 kHz)
• Connectivity: RJ-45, custom/proprietary interface
• Operating Temperature: 32 – 104°F (0 – 40°C)
• Certifications: UL, CE, FCC Part 15B, RoHS compliant
