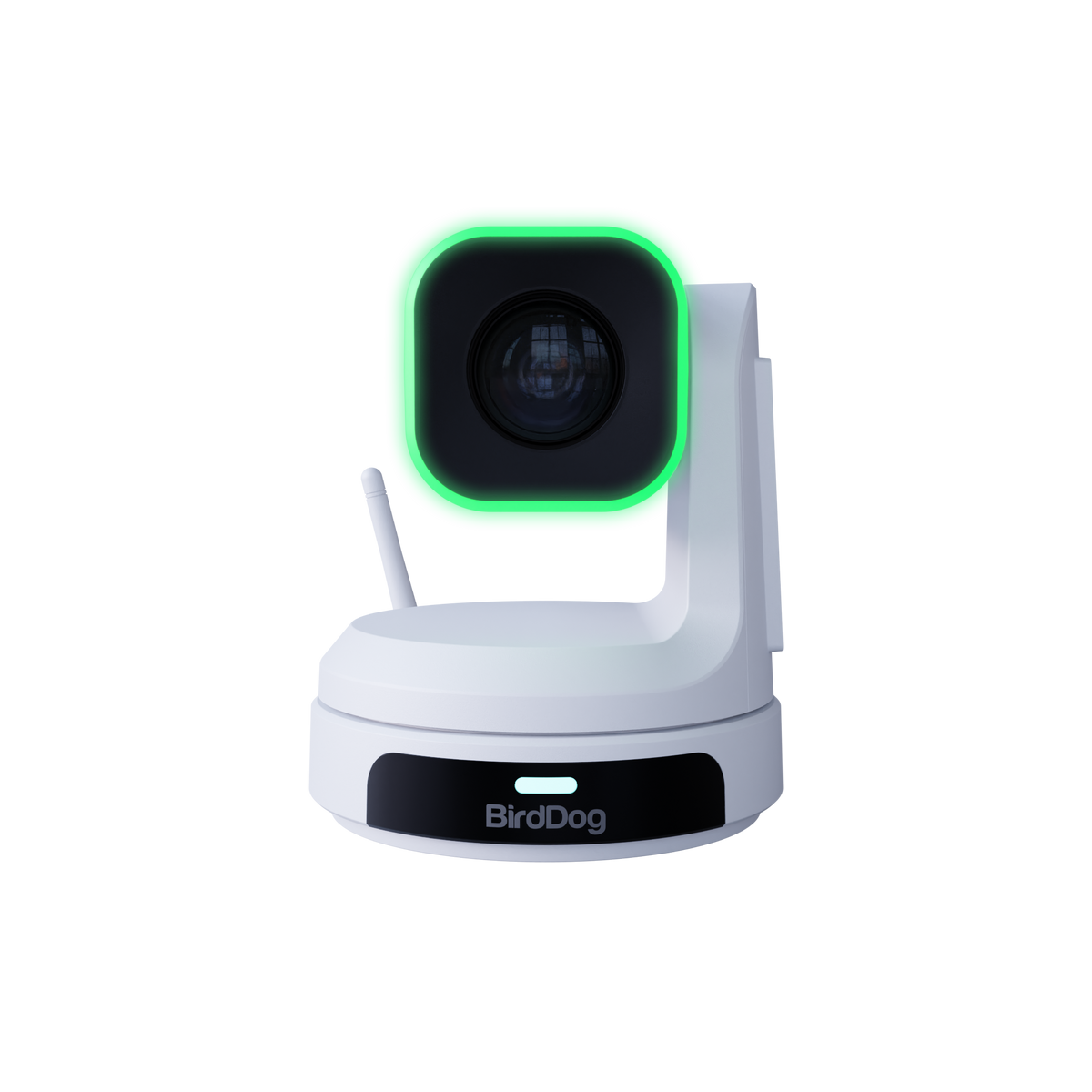

BirdDog X1 20x HD PTZ Camera (White)
In stock SKU: BIR-BDX1W

ToneCraft Gear

BirdDog X1 20x HD PTZ Camera (White)

$671.25

BirdDog X1 20x HD PTZ Camera (White)The BirdDog X1 is a 20x Full HD PTZ camera, finished in white, aimed at content creators and AV teams who want professional camera movement without complexity. It slots into NDI, baseband, or wireless Wi-Fi workflows...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

BirdDog X1 20x HD PTZ Camera (White)

The BirdDog X1 is a 20x Full HD PTZ camera, finished in white, aimed at content creators and AV teams who want professional camera movement without complexity. It slots into NDI, baseband, or wireless Wi-Fi workflows and carries capabilities usually found on higher-end models, including AI tracking, Halo Tally, built-in NDI|HX decoding, and an industry-first E-Ink display.

Behind the 20x optical zoom sits a Sony 1/2.8-inch CMOS sensor producing 1080p at up to 60 fps over HDMI, USB-C UVC, and the network port. Streaming protocols include NDI|HX2, NDI|HX3, SRT, RTSP, and RTMP with H.264/H.265 compression. Iris cloud software adds browser-based remote control, AI-powered framing, and centralized monitoring from anywhere, and the camera powers over PoE (802.3af) or DC 12V with VISCA, VISCA-IP, and NDI control.

Key Features

  • 20x optical zoom with Sony 1/2.8-inch Full HD CMOS sensor
  • 1080p output up to 60 fps via HDMI, USB-C UVC, or network
  • NDI|HX2/HX3, SRT, RTSP, and RTMP encoding with built-in NDI|HX decoding
  • AI subject tracking and daylight-visible Halo Tally system
  • Iris cloud enablement for browser-based remote production
  • PoE 802.3af, Wi-Fi 802.11ac, RS232/RS485, and VISCA control
  • E-Ink display and 255 camera presets

Specifications

  • Image Sensor: Sony 1/2.8” CMOS • FULL HD
  • Lens: f=5.5mm ~ 110mm
  • Optical Zoom: 20x
  • Video Format 1080p @ 60/59.94/50/30/29.97/25fps
  • 720p @ 60/50/30/25fps
  • Horizontal angle of view: 55.8° (W) – 3.2° (T)
  • Vertical angle of view: 32.2° (W) – 1.8° (T)
  • Diagonal angle of view: 61° (W) – 3.64° (T)
  • Aperture: F1.6 ~ 3.5
  • Focus: Auto, Manual
  • Exposure: Auto, Shutter Priority, Iris Priority, Manual
  • Backlight Compensation: Yes
  • Digital Noise Reduction: 2D and 3D Noise Reduction
  • SNR: >50dB
  • Effective Pixels: 2.07 MP
  • Filter Ring (52mm): N/A
  • Pan/Tilt Rotation: ±175°, -90°～+90°
  • Pan Control Speed: 0.1 -80°/sec
  • Tilt Control Speed: 0.1 -60°/sec
  • Preset Number: 255 presets
  • Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
  • Video Compression Format: H.264, H.265
  • Network Interfaces: 100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
  • Encoder Network Protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
  • HDMI Decoder Network Protocols: NDI|HX2, NDI|HX3
  • Control Interfaces: 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
  • Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
  • 3rd Party Control Protocols: Support for Q-sys, Crestron and BitFocus Companion modules is scheduled for August 2024
  • Input Voltage: DC 12V, POE IEEE802.3af
  • Input Current: 2.0A (Max.)
  • Power Consumption: 13W (Max.)
  • Working Temperature: -10℃ ～ +40℃
  • Working Humidity: 20% ～ 80%
  • Dimension (W*H*D): 171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)
  • Net and Gross Weight: 1.35kg/2.05kg (Net/Gross weight)
  • IMAGING
  • MECHANICAL
  • I/O INTERFACE
  • GENERAL PARAMETER

What's Included

  • X1 PTZ Camera
  • Remote Controller
  • DC 12V Power Supply
  • Welcome Pack
  • Rear Silicon Numbers
  • USB Cable
  • Limited 5-Year Manufacturer Warranty
