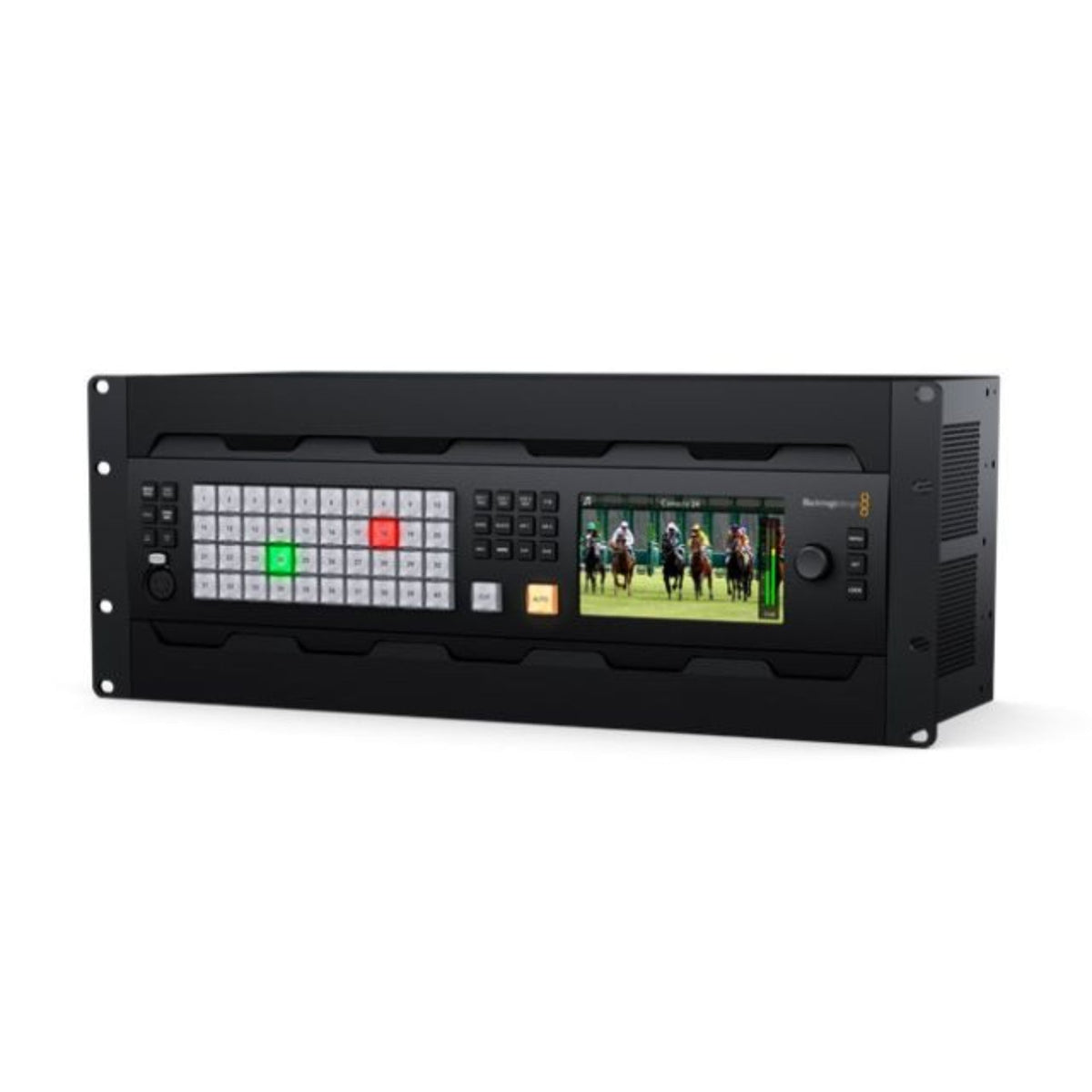

Blackmagic Design ATEM 4 M/E Constellation 4K Plus Switcher
In stock SKU: BMD-BMDSWATEMSCN22ME44KP

ToneCraft Gear

Blackmagic Design ATEM 4 M/E Constellation 4K Plus Switcher

$10,941.75

Blackmagic Design ATEM 4 M/E Constellation 4K Plus Live Production Switcher The Blackmagic Design ATEM 4 M/E Constellation 4K Plus is a massive Ultra HD live production switcher featuring 80 standards-converted 12G-SDI inputs and 48 12G-SDI auxiliary outputs. Built for the largest...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Blackmagic Design ATEM 4 M/E Constellation 4K Plus Live Production Switcher

The Blackmagic Design ATEM 4 M/E Constellation 4K Plus is a massive Ultra HD live production switcher featuring 80 standards-converted 12G-SDI inputs and 48 12G-SDI auxiliary outputs. Built for the largest broadcast facilities, mobile production trucks, and live event venues, this flagship switcher handles the most demanding multi-camera productions with 4 independent mix/effect banks, 16 ATEM Advanced Chroma Keyers, 4 DVEs, 2 SuperSource processors, and a 156-channel Fairlight audio mixer with EQ and dynamics on every input.

Every SDI input includes a dedicated standards converter that automatically adapts any input to the switcher's operating format, enabling seamless integration of cameras operating at different resolutions and frame rates. The 4 independent Ultra HD multi-view outputs, MADI digital audio connections, built-in talkback, and RS-422 serial control make this switcher the centerpiece of world-class broadcast infrastructure.

Key Features of the ATEM 4 M/E Constellation 4K Plus

  • 80 x 12G-SDI Inputs: Connects a massive number of cameras and sources with automatic standards conversion on every input.
  • 48 x 12G-SDI Outputs: Provides extensive routing for program feeds, recording, streaming, and auxiliary monitoring.
  • 4 M/E Banks with 16 Keyers: Four independent mix/effect systems with ATEM Advanced Chroma Keyers for complex live compositing.
  • 156-Channel Fairlight Audio Mixer: Professional audio mixing with 6-band parametric EQ, compressor, limiter, and expander on each input.
  • 2 SuperSource Processors: Advanced multi-source compositing with picture-in-picture, side-by-side, and complex layouts.
  • MADI Audio I/O: Digital audio connections for integration with external audio mixing consoles and recording systems.
  • Built-In Talkback: 5-pin XLR headset and RJ12 for ClearCom and RTS talkback system integration.

Technical Specifications

  • Video Inputs: 80 x 12G-SDI with standards conversion
  • Video Outputs: 48 x 12G-SDI
  • Mix/Effect Banks: 4
  • Keyers: 16 upstream (ATEM Advanced Chroma Keyer)
  • DVEs: 4
  • SuperSource: 2
  • Multi-View: 4 independent Ultra HD outputs
  • Audio Mixer: 156-channel Fairlight with EQ and dynamics
  • MADI: 4 outputs, 2 inputs
  • Talkback: 5-pin XLR, RJ12
  • Control: Ethernet, RS-422, front panel, USB-C
  • Format Support: SD, HD, Ultra HD 4K up to 2160p60
