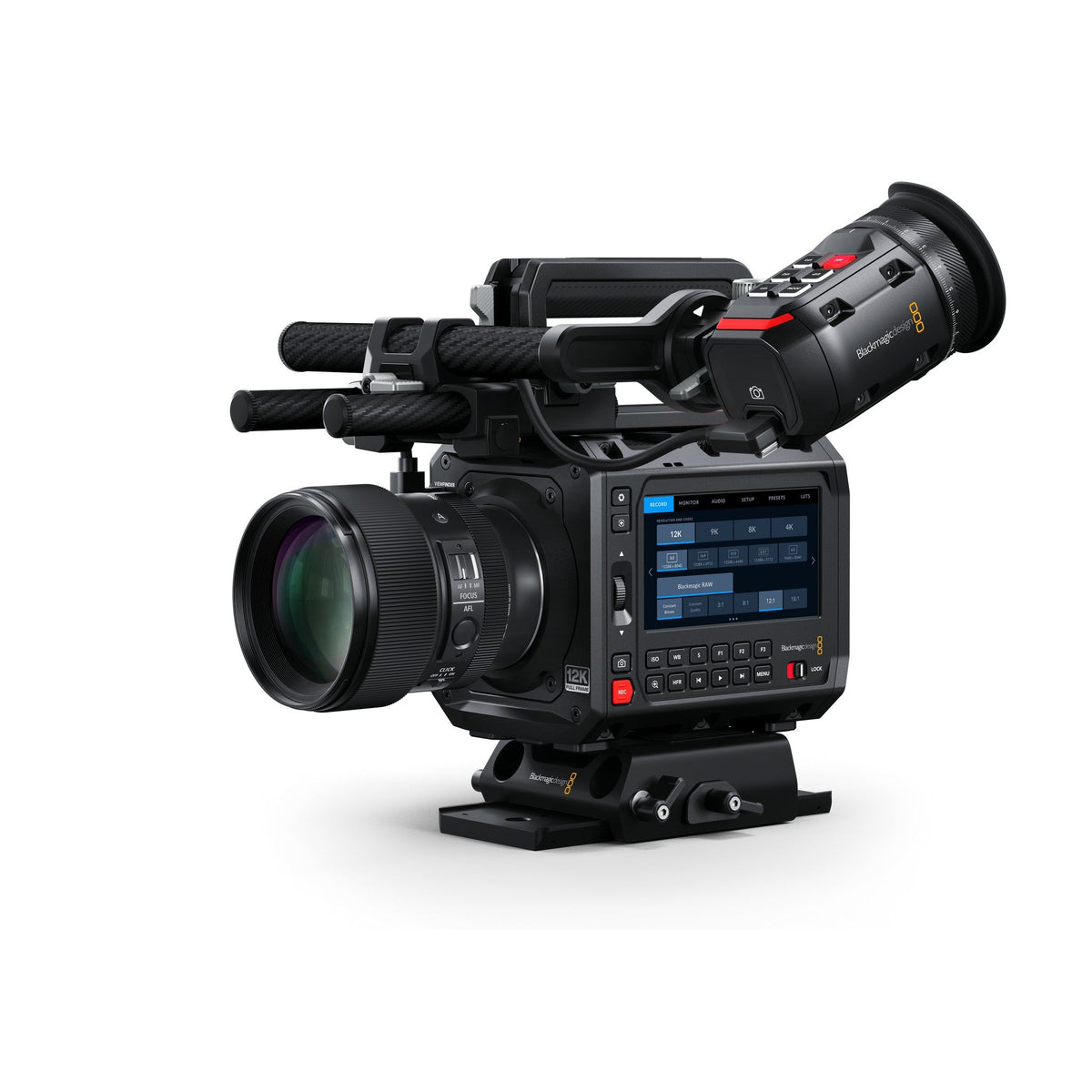

Blackmagic Design PYXIS 12K L-Mount Full Frame Cinema Camera

Blackmagic Design PYXIS 12K L-Mount Full Frame Digital Cinema Camera

The Blackmagic Design PYXIS 12K cinema camera features a 12,288 x 8,040 full frame RGBW sensor with 16 stops of dynamic range, an integrated optical low pass filter, and Generation 5 Blackmagic color science — delivering image quality comparable to the most expensive digital cinema cameras available. The PYXIS 12K records 12-bit Blackmagic RAW natively, shoots up to 40 fps at full 12K open gate, and includes a full license of DaVinci Resolve Studio.

For independent filmmakers, commercial directors, and documentary crews comparing the best full frame cinema camera under $6,000, the PYXIS 12K stands apart with its dual CFexpress media slots, built-in 5G/4G mobile streaming, and Blackmagic Cloud integration for real-time remote collaboration. Whether you're building a lightweight gimbal rig or a fully accessorized ENG configuration, the CNC-machined aerospace aluminum body and flexible L-Mount platform adapt to virtually any production demand — including anamorphic work uncropped at true 6:5 in 9.6K.

Trusted on feature film and episodic sets worldwide, Blackmagic Design's Generation 5 color science handles RAW image processing at the sensor level, preserving color and dynamic range data as metadata for natural, film-like response to grading in DaVinci Resolve. The L-Mount interface opens access to the full Leica, Panasonic, and Sigma lens ecosystem, while third-party adapters extend compatibility to vintage and cinema glass — giving cinematographers unlimited creative latitude on any budget.

Key Features of the Blackmagic PYXIS 12K L-Mount

• 12,288 x 8,040 Full Frame RGBW Sensor: Captures images nearly three times the area of a Super 35 sensor, enabling shallow depth of field, uncropped anamorphic work, and extraordinary detail in any format or aspect ratio.
• 16 Stops of Dynamic Range: Preserves detail in the brightest highlights and deepest shadows simultaneously — critical for mixed-light environments, exteriors, and high-contrast scenes without the need for HDR lighting setups.
• Generation 5 Blackmagic Color Science: Delivers accurate skin tones and rich organic color via a new 12-bit dynamic gamma curve engineered for maximum highlight and shadow data retention in post production.
• Dual CFexpress Media Slots with Hot Swap: Enables uninterrupted recording across long takes — swap full cards without stopping the camera, ensuring no critical moment is ever missed on set.
• 12-Bit Blackmagic RAW + H.264 Proxy Recording: Records camera originals and lightweight proxy files simultaneously, enabling instant Blackmagic Cloud uploads and remote editorial access from anywhere in the world.
• 4" HDR Touchscreen + Physical Controls: A 1,500-nit full HD display with scroll wheel, customizable function buttons, and lockable controls puts ISO, white balance, shutter, and focus tools within immediate reach in any shooting condition.
• DaVinci Resolve Studio Included: The industry-standard software for editing, color grading, audio post, and VFX is bundled at no additional cost — the same tool used on Hollywood feature films and episodic television.
• Built-In Hardware Streaming Engine: Supports RTMP and SRT live streaming to YouTube, Facebook, X, and Blackmagic ATEM Streaming Bridge via Ethernet or connected 4G/5G mobile device.

Technical Specifications

• Sensor: Full Frame RGBW, 36 x 24mm
• Maximum Resolution: 12,288 x 8,040
• Dynamic Range: 16 stops
• ISO Range: 200–3,200 (optimized at ISO 800)
• Lens Mount: L-Mount (fixed)
• Frame Rates: Up to 40 fps at 12K 3:2 open gate; up to 60 fps at 12,288 x 5,112 (2.4:1); up to 112 fps at 8,192 x 3,408 (8K)
• Anamorphic Support: True 6:5 at 9,648 x 8,040 (9.6K)
• Recording Formats: 12-bit Blackmagic RAW; H.264 proxy
• Media Slots: 2x CFexpress (Type B)
• Expansion Port: USB-C (up to 10 Gb/s)
• Display: 4" HDR touchscreen, 1,500 nits, full HD resolution
• Monitor Output: 12G-SDI (HDR and Ultra HD supported)
• Audio Inputs: Mini XLR with 48V phantom power; 3.5mm microphone input
• Audio Output: 3.5mm headphone jack; built-in speaker
• Connectivity: Ethernet; USB-C; Timecode BNC input; Reference input; Locking DC power
• Wireless: Bluetooth (up to 30 ft); 4G/5G mobile tethering via USB-C
• Streaming: RTMP and SRT (YouTube, Facebook, X, ATEM Streaming Bridge)
• LUT Support: 17-point and 33-point 3D LUT files; built-in LUTs included
• Battery: BP-U series (not included)
• Body Construction: CNC-machined aerospace aluminum
• Operating System: Blackmagic OS
• Software Included: DaVinci Resolve Studio (full license)
• Language Support: 13 languages
• SKU: BMD-CINECAMCPYXM12LFL

What's in the Box

• Blackmagic PYXIS 12K L-Mount Camera Body
• Standard Side Plate (aircraft-grade aluminum)
• SSD Side Plate
• International Socket Adapters
• DaVinci Resolve Studio License
