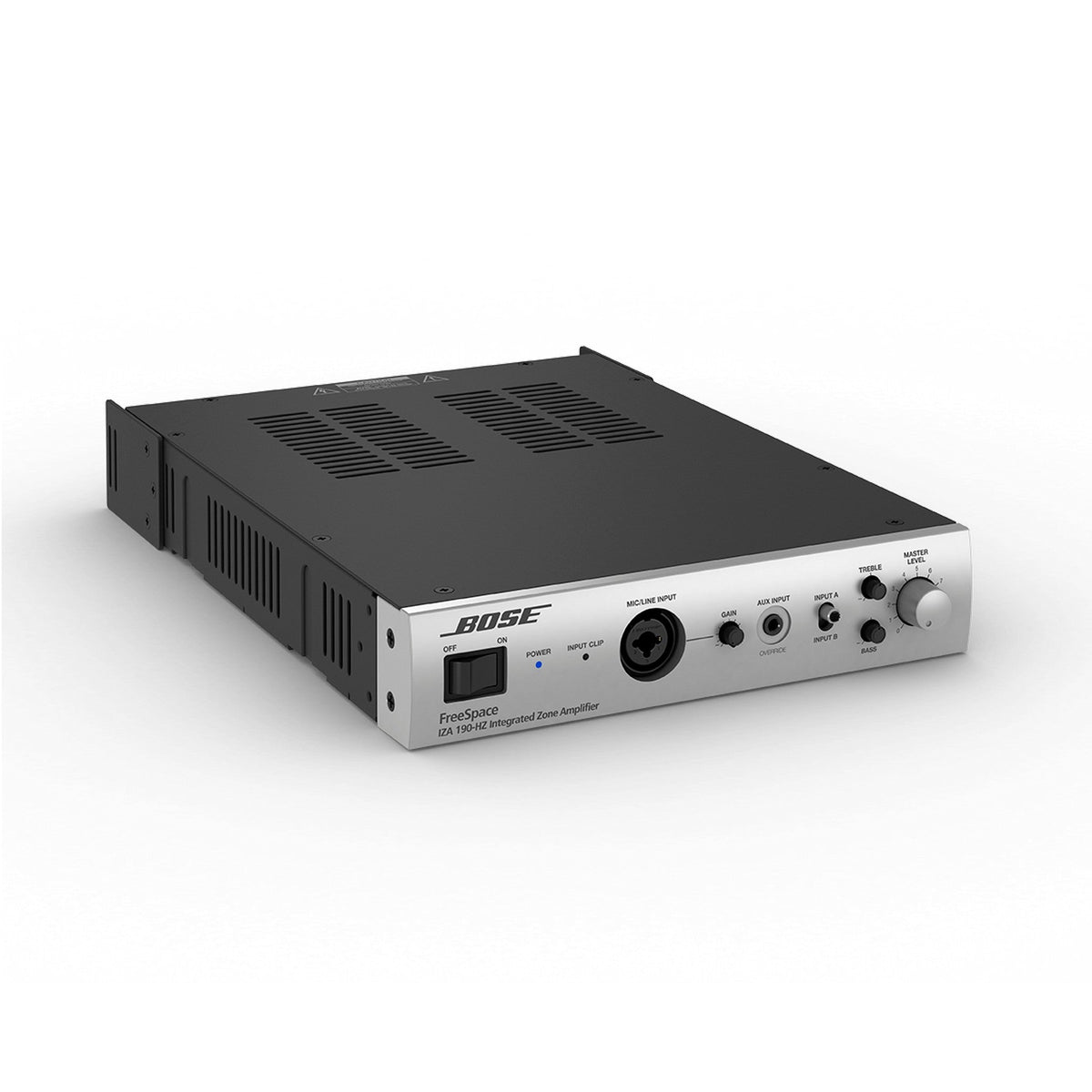

Bose Freespace IZA 190-Hz Integrated Zone Amplifier

The Bose FreeSpace IZA 190-HZ is an integrated zone amplifier designed for a wide range of commercial applications. Offering high-quality amplification with a Class-D power output, it optimizes sound performance and ensures smooth transitions between music and paging signals. It is ideal for use in retail stores, hospitality venues, schools, and more. The unit's compact design makes it easy to install in various environments, and its intuitive interface simplifies setup and control.

Key Features:

• Rated Power: 90W at 70V/100V
• Frequency Response: 60 Hz – 20 kHz (+0 dB/-3 dB)
• Power Class: Class D
• Dynamic Range: 88 dB
• Number of Channels: 2
• Automatic Paging: Opti-Voice
• Cooling: Natural Convection
• Rack Mountable: Optional Rack Mount Kit

Technical Specifications:

Amplifier Power: 90W at 70V, 100V
Frequency Response: 60 Hz – 20 kHz (+0 dB/-3 dB) at 1W, 1 kHz
Dynamic Range: 88 dB
THD+N: ≤ 1% at full rated power
Input Impedance: 20 kΩ (line) / 2 kΩ (mic/line)
Current Draw: 7.6 A at 120 VAC / 13.9 A at 230 VAC
Voltage: 100–240 VAC, 50/60 Hz
Dimensions (H×W×D): 1.8 in × 8.4 in × 12.2 in (45 mm × 214 mm × 310 mm)
Weight: 7.0 lb (3.2 kg)

Package Contents:

• Power Cord
• Four Feet with Pins
• 4-pin Euroblock Connector
• 3-pin Euroblock Connector
• FreeSpace IZA 190-HZ Amplifier
