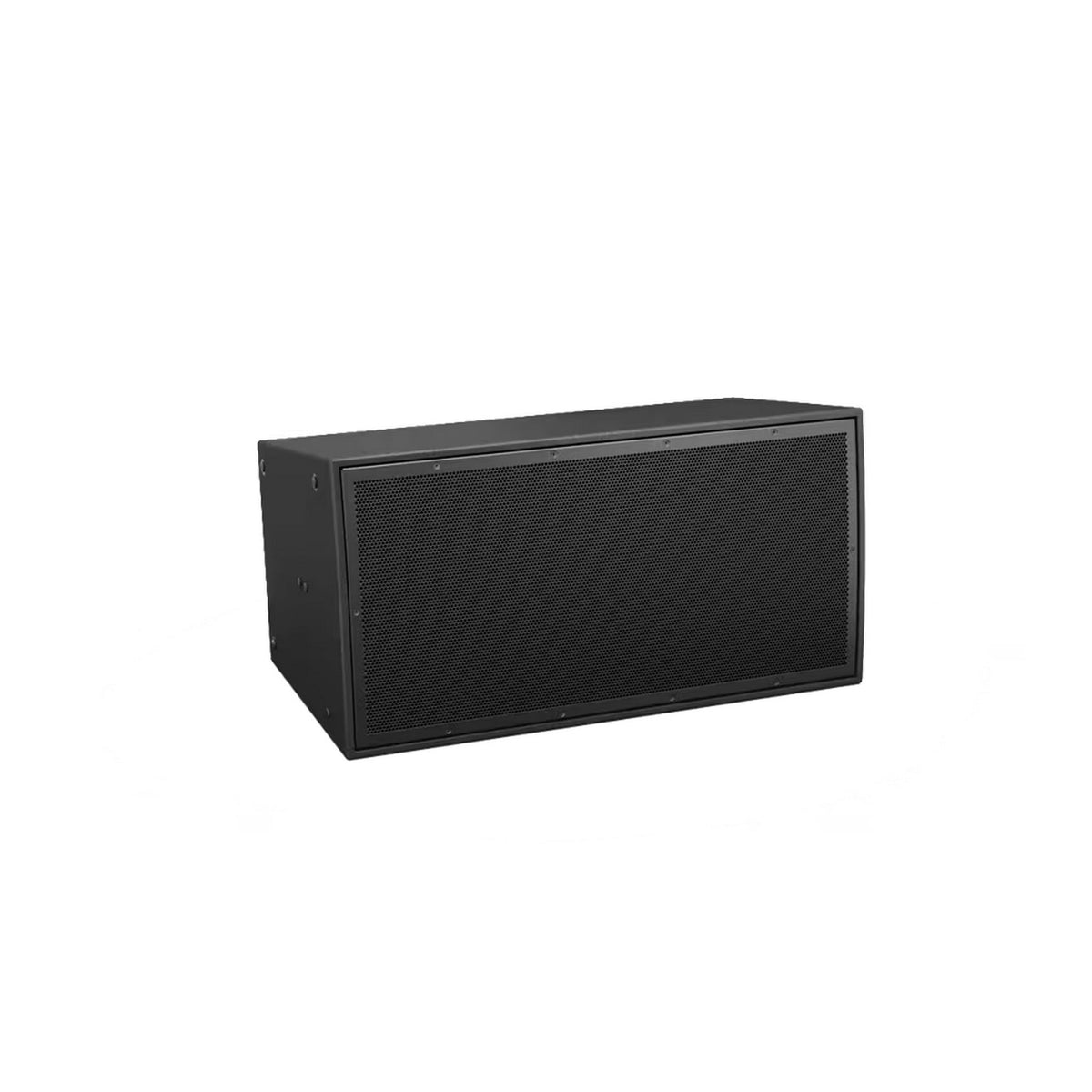

Bose Professional ArenaMatch DeltaQ Outdoor Array Loudspeaker (Each)

Bose Professional ArenaMatch DeltaQ Outdoor Array Loudspeaker (Each)

Bose Professional ArenaMatch is a DeltaQ array loudspeaker designed for outdoor sound reinforcement in stadiums, arenas, and large entertainment venues. It enables controlled audience coverage by varying directivity across array modules for consistent sound distribution across wide seating areas. This makes it ideal for permanent outdoor installations where intelligibility, coverage accuracy, and environmental durability are critical.

The loudspeaker operates as part of a modular array system with configurable vertical and horizontal coverage using model-specific geometries and replaceable waveguides. It supports passive or bi-amp operation and integrates with system processing through compatible Bose Professional DSP platforms. The enclosure and components are engineered for direct-exposure outdoor environments.

The ArenaMatch system supports scalable system designs that reduce the number of required modules while maintaining precise coverage control. Multiple coverage options allow system designers to adapt arrays to different audience geometries and throw distances. Integrated mounting and system compatibility support efficient installation and long-term operation.

Key Features

• DeltaQ Array Technology: Variable directivity per module to precisely match audience coverage
• Multiple Coverage Options: Available with 10°, 20°, or 40° vertical coverage
• Replaceable Waveguides: Supports 60°, 80°, or 100° horizontal coverage configurations
• Outdoor-Rated Construction: Designed for direct-exposure outdoor installations
• High-SPL Performance: Supports long-throw music reproduction and speech intelligibility
• Flexible System Configuration: Supports passive, bi-amp, and 70/100V transformer operation
• Standards Compliance: EN 54-24 certified for voice alarm systems

Technical Specifications

System Type
DeltaQ array loudspeaker module

Frequency Range (-10 dB)
55 Hz - 18,000 Hz

Nominal Impedance
Passive: 8 Ω
Bi-amp: 8 Ω + 8 Ω

Power Handling, Long-Term Continuous
Low Frequency: 600 W
High Frequency: 150 W
Passive: 750 W

Power Handling, Peak
Low Frequency: 2400 W peak
High Frequency: 600 W peak
Passive: 3000 W peak

Recommended Power Amplification
Bi-amp LF: 600 W - 1200 W
Bi-amp HF: 150 W - 300 W
Low-Z Passive: 750 W - 1500 W

Transformer Taps, 100V
200 W, 400 W

Transformer Taps, 70V
100 W, 200 W, 400 W

Enclosure Material
Exterior-grade birch plywood

Grille
Three-layer stainless steel grille with acoustic foam and powder-coated finish

Ingress Protection
IP55 per EN60529
IP33C per EN 54-24

Compliance
EN 54-24 Certified

Warranty Period
5 years / 2 years

What’s in the Box

(1) ArenaMatch loudspeaker module
(1) Input panel cover
(8) Input cover screws
(1) Installation guide
