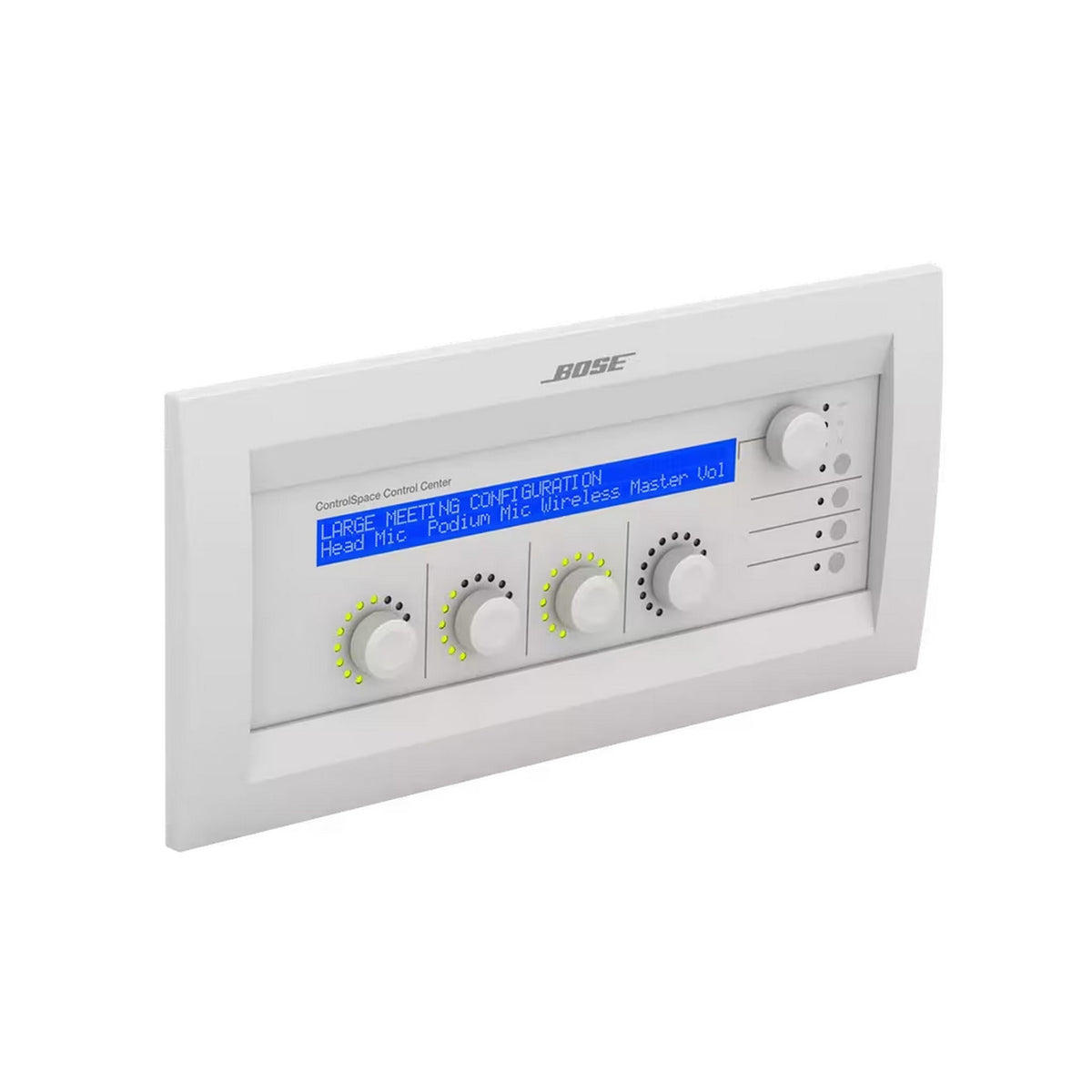

Bose Professional ControlSpace CC-64 Control Center

Bose Professional ControlSpace CC-64 Control Center

The Bose Professional Professional ControlSpace CC-64 control center is a programmable, networked wall-mounted controller designed to provide intuitive user control of installed sound systems using ControlSpace ESP processors and network-enabled PowerMatch amplifiers.

Its fully programmable design allows system integrators to customize available controls, simplifying operation for end users while maintaining precise system management. The CC-64 features four rotary gain/selector encoders with LED rings and a dedicated master scene/preset encoder for flexible system interaction.

A large backlit LCD display provides clear, dynamic labeling of system elements, while bank-switch buttons allow access to up to 16 programmable controls. Designed for permanent indoor installations, the CC-64 fits into a standard 5-gang electrical wall box and integrates seamlessly into ControlSpace networks.

Key Features

• Programmable Control Interface: Fully customizable control surface for ControlSpace systems
• Rotary Encoder Controls: Four gain/selector knobs with LED rings plus master scene encoder
• Bank Switching: Four bank buttons provide access to up to 16 controls
• Backlit LCD Display: 2-line, 40-character screen with dynamic labeling
• Scene and Preset Recall: Supports easy selection of programmed scenes
• Software Lockout: Programmable lockout prevents unauthorized changes
• Wall-Mount Design: Fits standard 5-gang electrical wall boxes

Technical Specifications

Product Type
Programmable networked control center

Compatible Systems
Bose Professional ControlSpace ESP processors
Network-enabled PowerMatch amplifiers

Maximum Controllers per Network
16

Cable Requirements
Cat 5 unshielded twisted-pair (UTP)

Maximum Cable Length
328 ft (100 m)

Connectors
(1) RJ-45 port
(1) 2-pin Euroblock

Power Requirements
15–24 VDC, 300 mA

Front Panel Controls
(4) Gain/Select rotary push encoders
(4) Bank-switch buttons
(1) Master scene/preset rotary push encoder

Display
2-line × 40-character backlit LCD (blue)

LED Indicators
(4) Volume LED rings
(4) Bank selection LEDs
Network, transmit, and receive LEDs

Mounting
5-gang electrical wall box (North America)

Available Color
White

Product Dimensions (H x W x D)
137 × 282 × 51 mm
5.4 × 11.1 × 2.0 in

What's in the Box

(1) ControlSpace CC-64 Control Center
(1) Installation Guide
(1) Cat 5 Power Adapter
