BZBGEAR BG-MFVS61-G2 6-Input SDI/HDMI Switcher with USB-C Capture

BZBGEAR BG-MFVS61-G2 6-Input 3G-SDI/HDMI Live Production Switcher

Product Overview

The BZBGEAR BG-MFVS61-G2 is a compact, multi-format video mixer and production switcher built for reliable 1080p workflows in mobile or fixed production environments. With six total inputs (4x 3G-SDI and 2x HDMI), it’s designed to simplify multi-camera switching for live events, streaming, and recording setups that need flexible connectivity.

This switcher supports up to 1080p@60Hz and includes an integrated scaler for broad display compatibility, plus dedicated multiview outputs to monitor all sources, preview, and program on a single screen. An integrated USB-C output lets you connect a PC to record or livestream the program feed, while audio can be de-embedded from inputs, mixed with analog sources, and embedded back into program output for a clean, production-ready signal path.

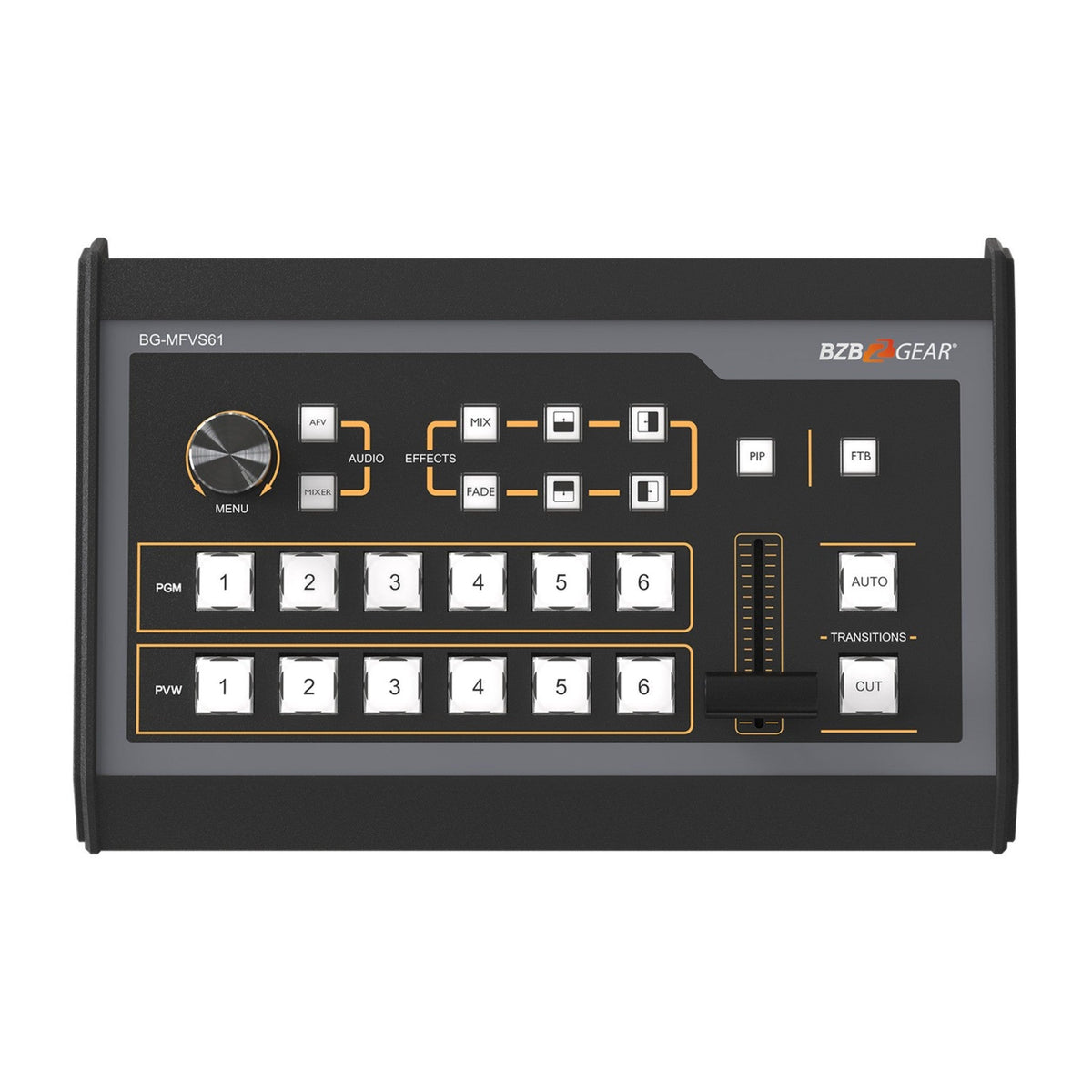

For hands-on control, the BG-MFVS61-G2 features a T-bar slider along with auto and cut buttons for smooth transitions using mix, wipe, and fade effects. Picture-in-Picture (PIP) mode supports easy resizing and repositioning, helping operators create professional-looking layouts with an intuitive control surface.

Key Features for Live Production & Streaming

• 6 Multi-Format Inputs: Four 3G/HD/SD-SDI inputs plus two HDMI inputs for flexible camera and source connectivity.
• Integrated USB-C Capture Output: Connect a PC to record or livestream the program output via USB-C.
• Multiview Monitoring: Dual multiview outputs (3G-SDI and HDMI) display all inputs, preview, program, and menu on one screen.
• Multiple Program Outputs: Program outputs over SDI and HDMI to feed recorders, encoders, or displays.
• Built-In Audio Mixing: De-embed audio from video inputs and mix with 3.5mm stereo and RCA (L/R) analog sources.
• Transition Controls & Effects: T-bar, auto, and cut controls for mix, wipe, and fade transitions.
• Picture-in-Picture (PIP): Adjustable PIP window size and position for polished live layouts.
• Tally/GPIO Support: Tally port for integration with compatible tally systems.
• LAN Port: RJ45 LAN connection for firmware updates.

Technical Specifications

• Video Inputs: 4× 3G/HD/SD-SDI, 2× HDMI
• SDI Input Formats: 1080p (60/59.94/50/30/29.97/25/24/23.98), 1080psF (30/29.97/25/24/23.98), 1080i (60/59.94/50), 720p (60/59.94/50/30/29.97/25/24/23.98)
• HDMI Input Formats: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976), 1080i (50/59.94/60), 720p (60/59.94/50/30/29.97/25/24/23.98), 576i 50, 576p 50
• SDI Video Rate: Auto detection, SD/HD/3G-SDI
• SDI Compliance: SMPTE 259M / SMPTE 292M / SMPTE 424M
• Color Space & Precision: SDI: YUV 4:2:2 (10-bit); HDMI: RGB 4:4:4 (8/10/12-bit), YUV 4:4:4 (8/10/12-bit), YUV 4:2:2 (8/10/12-bit)
• PGM Output Format: 1080p (60/50/30/25/24); 1080i (50/60)
• Multiview Outputs: 1× 3G-SDI, 1× HDMI Type A
• Multiview Output Format: 1080p@60
• Audio Input: 1× 3.5mm stereo, 1× RCA (L/R)
• Audio Output: 1× 3.5mm stereo, 1× RCA (L/R)
• GPIO: Tally
• LAN: RJ45
• Power: DC 12V, 1.8A
• Power Consumption: ≤ 22W
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature: -22°F to 158°F (-30°C to 70°C)
• Operating Humidity: 20% to 70% RH
• Dimensions (W×D×H): 13.0 × 9.6 × 2.64 in
• Weight: 2.2 lb

What's Included

• 1× BG-MFVS61-G2
• 1× Power Supply (DC 12V 2A)
• 1× 3 ft USB-C to USB-A Cable
• 1× Padded Carrying Case
• 1× User Manual
