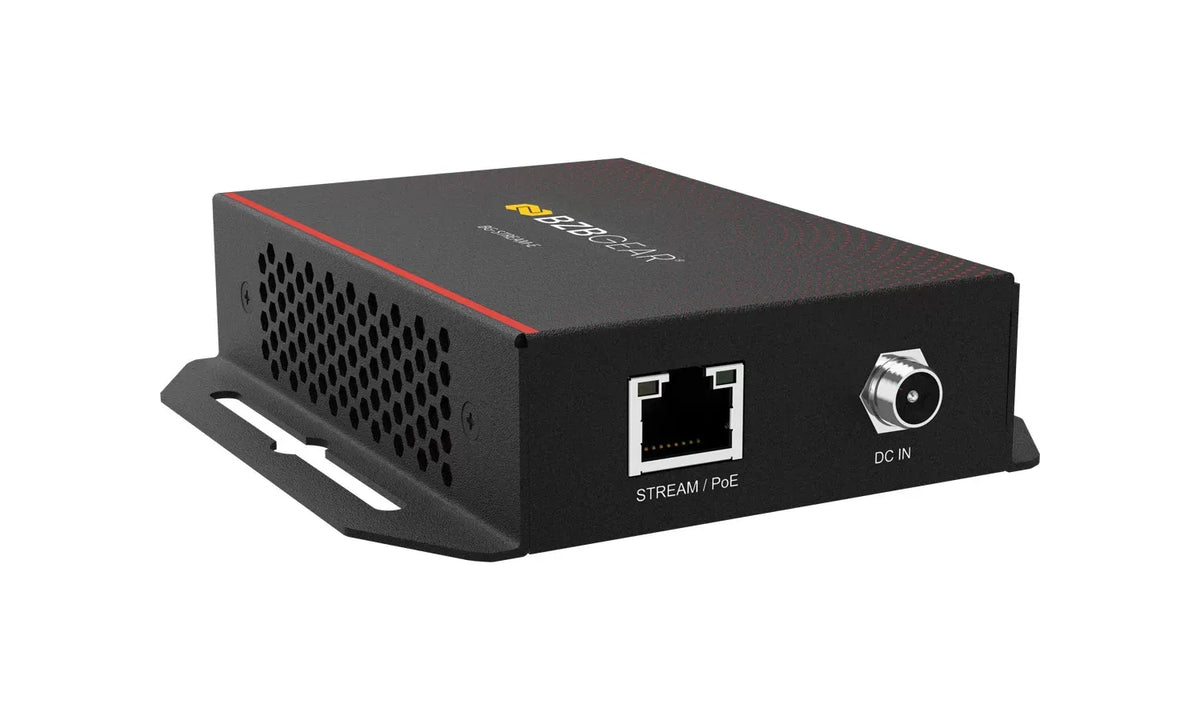

BZBGEAR BG-STREAM-E HDMI to IP UVC PoE Streaming Encoder
In stock SKU: BZB-BGSTREAME

ToneCraft Gear

BZBGEAR BG-STREAM-E HDMI to IP UVC PoE Streaming Encoder

$524.25

BZBGEAR BG-STREAM-E HDMI to IP UVC PoE Streaming Encoder Professional HDMI to IP and USB Streaming Encoder The BZBGEAR BG-STREAM-E is a professional-grade HDMI to IP streaming encoder designed for modern AV-over-IP, live streaming, and USB capture workflows. It converts an HDMI...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

BZBGEAR BG-STREAM-E HDMI to IP UVC PoE Streaming Encoder

Professional HDMI to IP and USB Streaming Encoder

The BZBGEAR BG-STREAM-E is a professional-grade HDMI to IP streaming encoder designed for modern AV-over-IP, live streaming, and USB capture workflows. It converts an HDMI video source into IP-based streams while simultaneously providing a UVC-compliant USB output, making it ideal for broadcast, conferencing, education, worship, and corporate AV environments.

Supporting advanced H.264 and H.265 compression, the BG-STREAM-E delivers efficient, high-quality video transmission over standard Ethernet networks. With PoE capability and a compact metal enclosure, it simplifies installation while maintaining reliable performance in permanent or mobile AV setups.

Key Features

  • HDMI to IP and USB Encoding: Converts HDMI video into IP streams and UVC USB output for flexible integration.
  • Multi-Protocol Streaming Support: Compatible with RTSP, RTMP, HLS, TS over IP, SRT, NDI HX, and Dante AV-H (licenses required).
  • High-Efficiency Video Compression: Supports H.265 and H.264/AVC encoding for reduced bandwidth usage.
  • UVC Device Compatibility: Functions as a USB video capture device for conferencing and streaming software.
  • Power over Ethernet Support: Enables simplified single-cable installation using PoE.
  • Web-Based Management: Built-in web UI allows easy configuration, monitoring, and firmware updates.

Technical Specifications

  • Video Input: 1 × HDMI
  • Video Outputs: 1 × RJ45 (IP streaming), 1 × USB 3.0 Type B (UVC)
  • Video Encoding: H.265 / H.264 / AVC (Baseline, Main, High Profile)
  • Maximum Resolution: 1920 × 1080p at 60/50 fps
  • Supported HDMI Resolutions: 1920×1080p/i, 1280×720p, 1280×1024p, 1280×960p, 1024×768p, 800×600p, 640×480p, 720×480p, 720×576p
  • Audio Support: AAC-LC, 32–384 Kbps, 48 kHz, 16-bit
  • Ethernet: 1 × RJ45, 10/100/1000 Mbps, DHCP Client
  • Streaming Protocols: RTSP (UDP/TCP/Multicast/HTTP), RTMP, TS over IP, HLS, SRT, NDI HX*, Dante AV-H*
  • Additional Functions: UVC device support, web UI configuration, firmware upgradable
  • Power: DC input with PoE support
  • Dimensions (W × D × H): 4.1 × 2.8 × 1.0 inches

What’s Included

  • 1 × BG-STREAM-E HDMI to IP Encoder
  • 1 × DC Power Adapter
