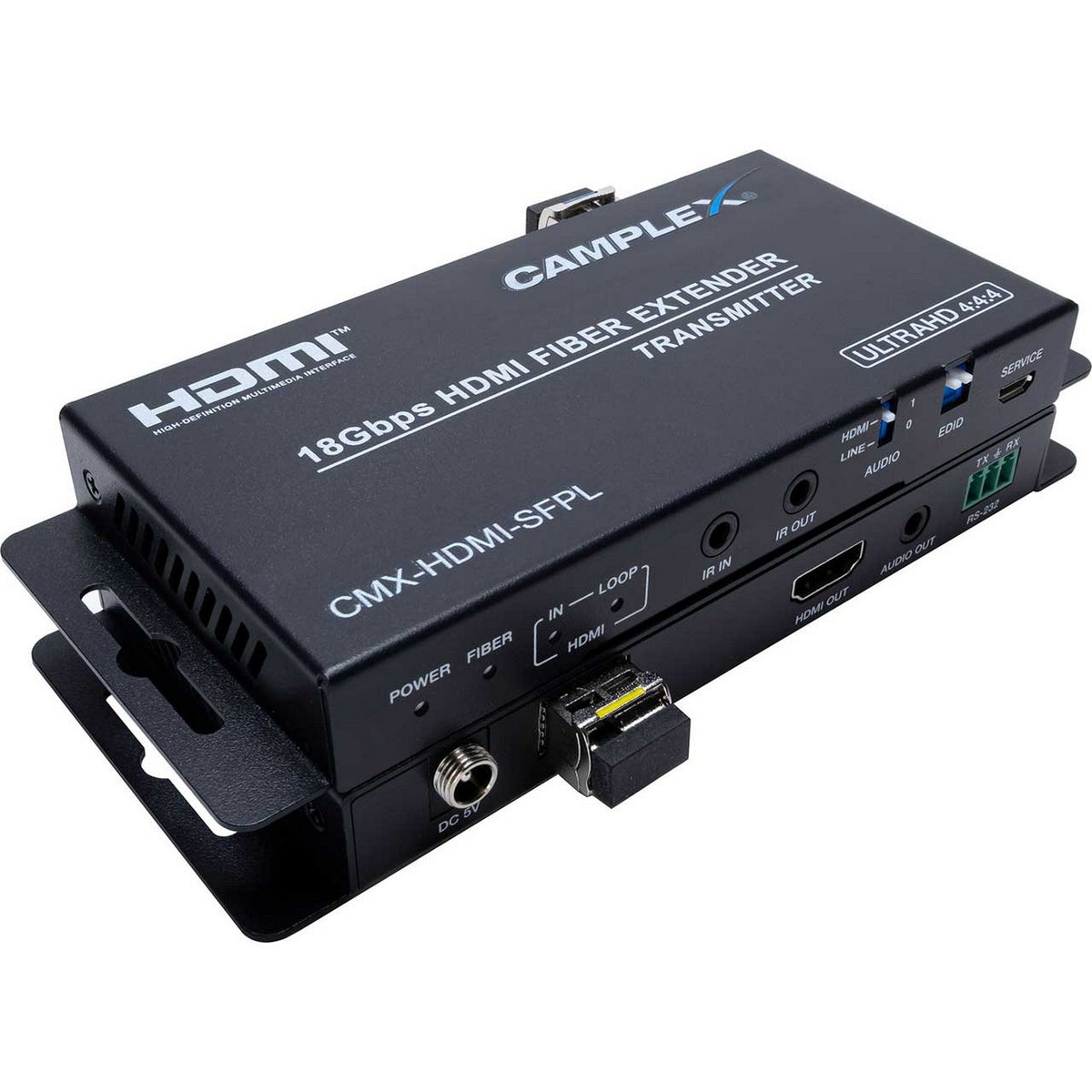

Camplex 18 Gb/s HDMI over Single-Mode Fiber Extender Kit with Audio Extracting

Camplex 18 Gb/s HDMI over Single-Mode Fiber Extender Kit with Audio Extracting

The Camplex CMX-HDMI-SFPL HDMI Fiber Extender with Audio Extracting sends HDMI signals up to 4K2K@50/60Hz over single mode fiber up to 6.2 miles. It supports HDMI 2.0b, HDCP 2.2, 18Gbps video bandwidth, audio embedding, audio extraction, IR control, RS-232, and EDID management.

Designed for professional AV systems, broadcast facilities, education spaces, houses of worship, conference rooms, and control environments, this HDMI over fiber extender set helps move high-resolution HDMI video and multichannel audio across long-distance fiber infrastructure. The transmitter provides HDMI loop out for local monitoring, while the receiver supports audio extraction for routing sound to external systems.

The CMX-HDMI-SFPL supports 4K2K@60Hz video, multiple HDMI audio formats, bi-directional infrared control, and bi-directional RS-232 transmission for integrated system control. Two SFP modules are included, and the rugged black powder-coated metal housing with LED indicators supports dependable installation in professional racks, field systems, and permanent AV deployments.

Key Features

• Extends HDMI signals up to 6.2 miles over single mode fiber
• Supports video resolutions up to 4K2K@50/60Hz
• HDMI 2.0b and HDCP 2.2 compliance support modern 18Gbps video workflows
• Supports audio embedding on the transmitter and audio extraction on the receiver
• Bi-directional infrared control supports 20KHz to 60KHz IR devices
• Bi-directional RS-232 transmission supports passthrough and system control
• EDID management helps maintain proper display communication
• HDMI loop out supports local monitoring at the transmitter
• LED indicators show power, optical, and HDMI status
• Rugged black powder-coated metal housing supports professional installation use

Technical Specifications

Model: CMX-HDMI-SFPL
Product Type: HDMI Over Fiber Extender with Audio Extracting
Compliance: HDMI 2.0b (18Gbps), HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolutions: Up to 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital / Plus / EZ, Dolby TrueHD, DTS, DTS-EX, DTS-HD Master Audio, DSD
Transmission Distance: Up to 6.2 miles over single mode fiber
IR Frequency: 20KHz-60KHz
RS-232 Baud Rate: 4800-115200bps
TX Input: 1-HDMI Type A, 1-Line In (3.5mm Stereo Mini Jack), 1-IR In (3.5mm Stereo Mini-Jack), 1-RS-232 (3.81mm Phoenix Connector)
TX Output: 1-HDMI Out (Type A 19-Pin Female), 1-Optical Fiber Out (LC Female), 1-IR Out (3.5mm Stereo Mini-Jack)
RX Input: 1-Optical Fiber In (LC Female), 1-IR In (3.5mm Stereo Mini-Jack)
RX Output: 1-HDMI Out (Type A 19-Pin Female), 1-IR Out (3.5mm Stereo Mini-Jack), 1-RS-232 (3.81mm Phoenix Connector)
Power Consumption: 3W
Power Input: AC100 - 240V 50/60Hz
Dimensions: 5.28" x 2.68" x 0.71" each unit
Weight: TX: 0.62 lbs, RX: 0.61 lbs
SFP Module Specifications: Single LC Fiber
Laser Classification: Class 1 Laser
Compliance Certifications: ROHS, FCC, CE Compliant
