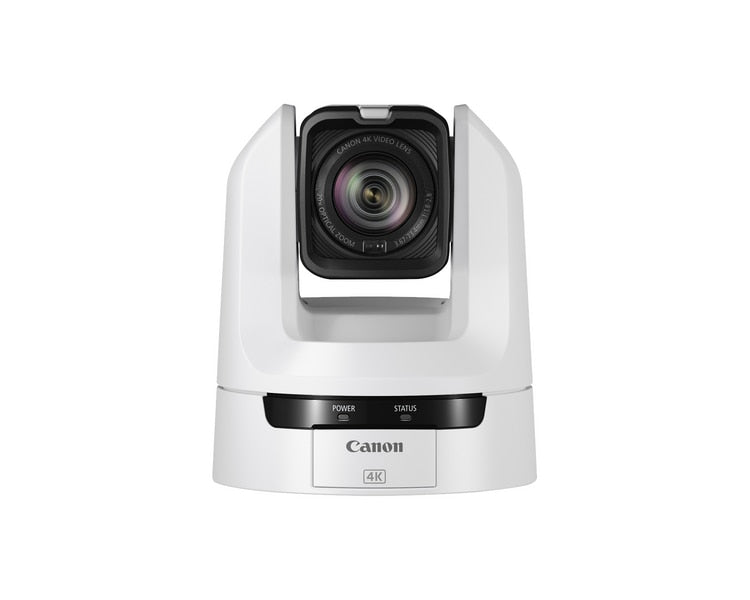

Canon CR-N100 20x NDIHX PTZ Camera - White

Canon CR-N100 20x NDIHX PTZ Camera - White

Finished in white, the Canon CR-N100 is a compact 4K PTZ camera with a 20x stabilized optical zoom, advanced autofocus, and broad IP protocol support, including built-in Auto Tracking via Canon's app. It integrates cleanly into corporate meeting rooms, classrooms, houses of worship, and live event spaces where a light-colored housing blends with the surroundings.

The 1/2.3-type CMOS sensor and DIGIC DV6 processor record up to 4K UHD 30p in 4:2:2 10-bit, with oversampled HD derived from the full 4K readout. Hybrid AF keeps subjects sharp even in low light, IP support spans NDI|HX 2, SRT, RTSP/RTP, and RTMP/RTMPS, and connectors include HDMI, LAN with PoE+, USB-C, and a 3.5mm audio jack, all in a 2.2 kg chassis.

Key Features

• 4K UHD capture up to 30p in 4:2:2 10-bit
• 20x optical zoom covering 29.3-601mm equivalent with image stabilization
• Hybrid AF for quick, accurate focusing even in low light
• NDI|HX 2, SRT, RTSP/RTP, and RTMP/RTMPS streaming protocols
• Free Auto Tracking App RA-AT001 (Lite) with latest firmware; paid version adds versatility
• Pan and tilt movement as slow as 0.2 degrees per second for smooth on-air motion
• Compact 2.2 kg chassis with HDMI, LAN (PoE+), USB-C, and 3.5mm audio connections

Specifications

• Image Sensor: Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Effective Pixels: approx. 8.29 megapixels (3840 x 2160)
• Lens: f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
• Optical Zoom: 20x optical zoom
• Digital Zoom: 20x digital zoom
• Focal Length: 3.67 – 73.4 mm, f/1.8 – 2.8,
• 35mm equivalent focal length:
• [4K UHD] approx. 29.3 (W) – 601 mm (T)
• [Full HD] approx. 30.5 (W) – 627 mm (T)
• Angle of View: [4K UHD]
• Horizontal: 65.6 (W) – 3.6° (T)
• Vertical: 39.8° (W) – 2.0° (T)
• [Full HD]
• Horizontal: 63.5 (W) – 3.4° (T)
• Vertical: 38.4° (W) – 1.9° (T)
• Minimum Subject Illumination
• Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Shutter Speed: 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: 0.0 dB – 36 dB
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• Night Mode (IR Cut Filter Off): NoWhite Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2), color temperature setting (2,000 K – 15,000 K), Manual
• Focus: Focus mode: Manual, Continuous AF, Face AF, Tracking
• AF type: Hybrid AF, Contrast AF
• Gamma: Normal1 (Standard), Normal3 (BT.709)
• Pan and Tilt Pan operation range: Horizontal ±170°
• Pan operation speed: 0.2° – 300°/sec.
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.2° – 180°/sec.
• Video Output Format: HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• Video Output Format: IP [Frame frequency 59.94 Hz]
• 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 29.97 Hz]
• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 50.00 Hz]
• 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 25.00 Hz]
• 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 23.98 Hz]
• 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
• Resolution: 1280 x 720
• When frame frequency is 59.94/29.97 Hz: 14.99 fps,
• When frame frequency is 50.00/25.00 Hz: 12.50 fps,
• When frame frequency is 23.98 Hz: 11.99 fps
• Video Output Format: USB Motion JPEG:
• 1920 x 1080
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• 1280 x 720
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• 640 x 360
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• YUV:
• 640 x 360
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• Video Transmission Protocol: Protocol: XC (Canon's original), RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
• Preset: Number of presets: Max. 100 (including home position)
• Communication Control: LAN, Serial, IR
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• GEN-LOCK Terminal: No
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Audio INPUT 1/INPUT 2 Terminals: No
• MIC Terminal: ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
• Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• USB Terminal: Type-C (USB 3.1) x 1
• Operating Environment Temperature: 0°C – +40°C (+32°F – +104°F)
• Operating Environment Humidity: 10% – 90% (without condensation)
• Power Supply: PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) PoE cannot be used
• External power source: 24 V DC (using included AC adaptor)
• Power Consumption PoE+ Input: Approx. 16.2 W3 max. (body only)
• DC Input: Approx. 15.0 W max. (body only)
• Dimensions (W x H x D): Approx. 154 x 178 x 164 mm (excluding protrusions)
• Weight: Approx. 2.2 kg (4.86 lb.) (body only)
• Noise: NC35 or less
• Camera
• Server
• Interface
• Physical Features

What's Included

• CR-N100 Main Unit
• Mounting Plate with Screw
• Safety Wire
• AC Adapter
• AC Cable
• Infrared Remote Controller with Battery
• Installation Guide
• Warranty Card
