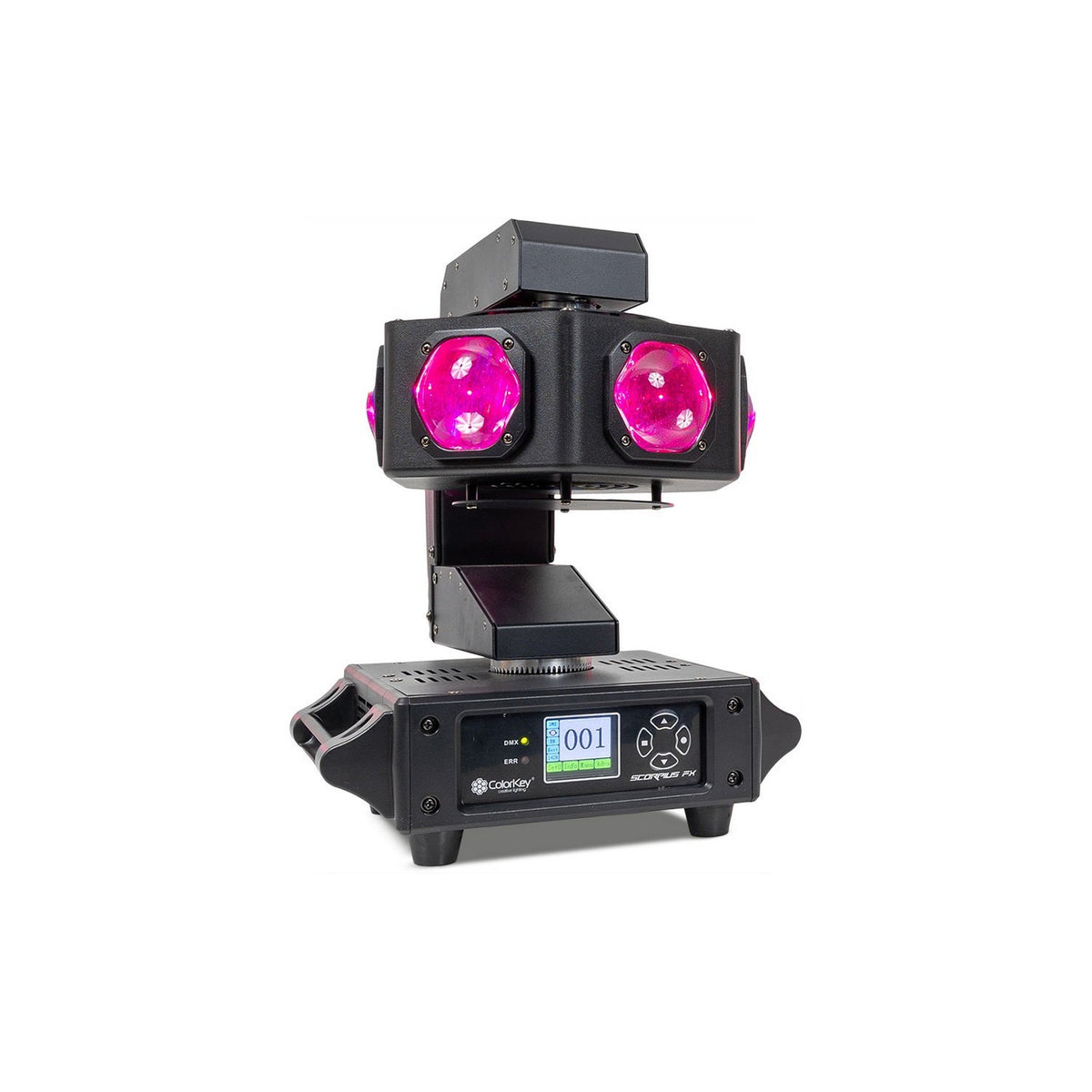

ColorKey Scorpius FX Moving Head Effect Light

The ColorKey Scorpius FX is a high-performance LED effect fixture featuring six 40W 4-in-1 RGBW LEDs, delivering up to 240W of output. It is engineered for dynamic lighting effects, capable of projecting razor-sharp beams, color mixing, and intense visual displays for events, stage productions, and installations.

This fixture offers infinite rotation of the LED head and 320° tilt, letting you aim light beams in nearly any direction. It supports control via DMX512 (14 or 16 channels), Auto, Master/Slave, and Sound Active modes. With smooth 0–100% dimming and strobe speeds up to 20 Hz, you can dial in precise effects.

With robust construction, a 1.77-inch color LCD, and wide AC voltage support (100–240V), the Scorpius FX is built for reliability in rental, touring, or club environments. Its moderate size and weight make it suitable for various mounting setups while still packing pro-level output.

Key Features

• 240W Output: 6 x 40W RGBW 4-in-1 LEDs
• Beam Angle: ~2° tight beam for dramatic effects
• Continuous Movement: Infinite pan, 320° tilt for expansive coverage
• Control Modes: DMX512, Auto, Master/Slave, Sound Active
• Dimming & Strobe: 0–100% linear dimming, 0–20 Hz strobe range
• Display Interface: 1.77" color LCD for menu navigation
• Universal Power: AC input 100–240V, 50/60 Hz

Technical Specifications

• Model / SKU: Scorpius FX (CKU‑1074)
• LED Count & Type: 6 x 40W RGBW 4‑in‑1 LEDs
• Power Consumption: 240W
• Beam Angle: ~2°
• Pan / Tilt: Infinite pan, 320° tilt
• DMX Channels: 14CH / 16CH modes
• Dimming: 0–100% linear
• Strobe Speed: 0–20 Hz
• Voltage Range: AC 100–240V, 50/60 Hz
• Weight: ~12.8 lbs (5.8 kg)
• Dimensions: 13.3 in x 10.4 in x 8.2 in

What’s in the Box

• 1x Scorpius FX moving head unit
• 1x Power cable
• Quick release mounting bracket
• User manual / warranty documentation
