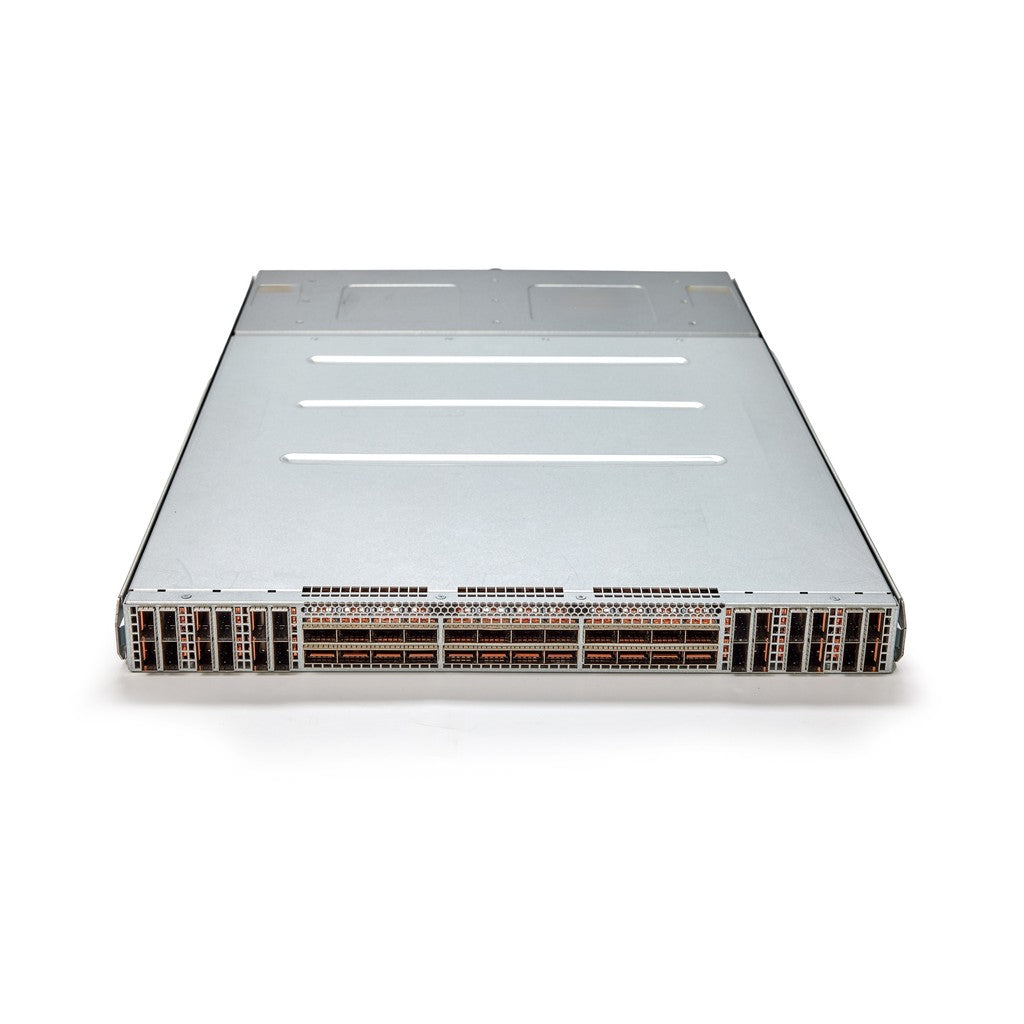

Cornelis CN5SWE48G2AF CN5000 48-Port 400G Omni-Path Switch

Cornelis CN5SWE48G2AF CN5000 48-Port 400G Omni-Path Switch

The Cornelis CN5SWE48G2AF CN5000 Omni-Path switch provides 48 QSFP112 ports with 400Gbps performance per port for artificial intelligence and high-performance computing clusters. Its lossless, congestion-free fabric architecture supports demanding scale-out networks while maintaining low tail latency, reliable packet delivery, and efficient communication between compute nodes.

Designed for AI training, real-time inference, and mission-critical HPC applications, this 48-port 400G network switch delivers 38.4Tbps of aggregate bidirectional bandwidth. Fine-grained adaptive routing, incast-aware flow control, and configurable virtual lanes help optimize message rates and reduce congestion across highly parallel workloads.

The air-cooled 1.7RU chassis uses fan-to-port airflow and dual 240/277 VAC power supplies for data-center deployment. Hot-swappable fans and power supplies simplify maintenance, while secure boot, integrated management, real-time telemetry, and in-band or out-of-band administration support dependable operation within scalable Cornelis CN5000 Omni-Path environments.

Key Features

• 48-Port 400G Fabric: Provides 48 QSFP112 ports with 400Gbps performance per connection.
• 38.4Tbps Aggregate Bandwidth: Supports intensive data movement across large AI and HPC clusters.
• Lossless Networking: Uses credit-based flow control and link-level retransmission to prevent packet loss.
• Adaptive Routing: Dynamically selects efficient paths to reduce congestion and maintain low tail latency.
• Configurable Virtual Lanes: Supports one to four traffic lanes plus a dedicated management lane.
• Advanced Telemetry: Delivers real-time network visibility for workload and traffic-flow optimization.
• Hot-Swappable Components: Allows field replacement of fans and power supplies with minimal disruption.
• Secure Management: Includes secure boot, secure key storage, and integrated OpenBMC-based administration.

Technical Specifications

• Product Type: 400G Omni-Path network switch
• Manufacturer: Cornelis Networks
• Product Family: CN5000
• Manufacturer Part Number: CN5SWE48G2AF
• Fabric Ports: 48 x 400G QSFP112
• Bandwidth per Port: 400Gbps
• Aggregate Bidirectional Bandwidth: 38.4Tbps
• Port Subdivision: 32 ports independently support 2 x 200G operation
• Virtual Lanes: One to four configurable virtual lanes plus one management lane
• Configurable MTU: 2KB, 4KB, 8KB, or 10KB
• Maximum Multicast Table Size: 16,384 entries
• Cabling Interface: QSFP112
• Management Platform: Integrated OpenBMC-based management
• Management Interfaces: In-band and out-of-band
• Ethernet Management: 10/100/1000BASE-T
• Security: Secure key EEPROM and secure boot
• Chassis: 1.7RU rackmount
• Cooling: Air-cooled
• Airflow Direction: Fan-to-port
• Power Supplies: Dual power supplies
• Input Power: 200–240/277 VAC, 50/60Hz
• Typical Power Consumption with DACs: 710W
• Maximum Power Consumption with DACs: 865W
• Typical Power Consumption with AOCs: 1115W
• Maximum Power Consumption with AOCs: 1285W
• Dimensions: 26.1" x 17.2" x 1.7"
• Weight: 30.8 lbs
• Operating Temperature: 50°F to 95°F
• Storage Temperature: -40°F to 158°F
• Operating Humidity: 5% to 85%, non-condensing
• Storage Humidity: 5% to 95%, non-condensing
• Operating Altitude: Up to 9,843 ft
• Storage Altitude: Up to 39,370 ft
• Compliance: FCC Class A, CAN ICES-3(A), EN55032, EN55035, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR 32 Class A, RoHS, and REACH
