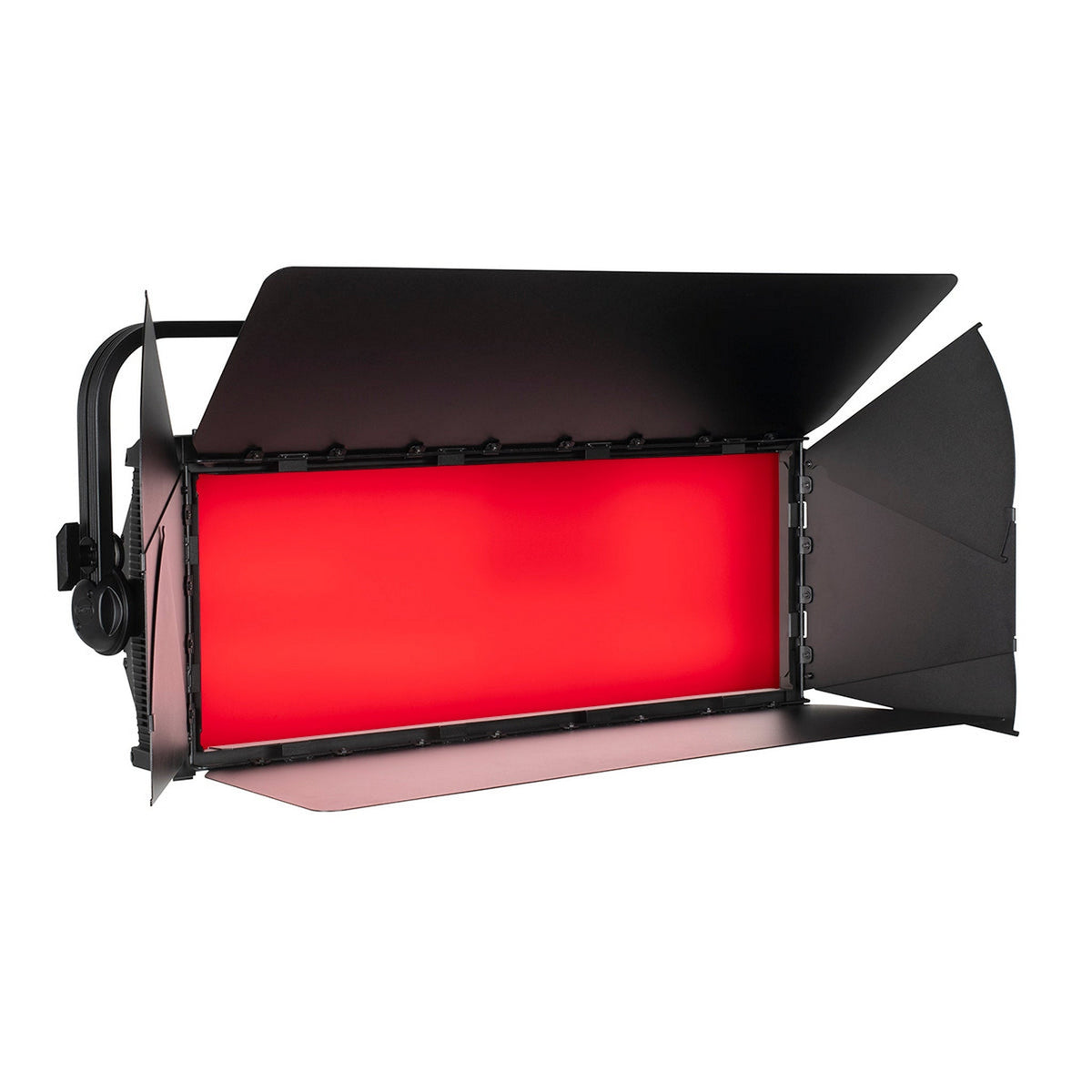

Elation KL Panel XL Full-Color-Spectrum LED Soft Light

Elation KL Panel XL Full-Color-Spectrum LED Soft Light

The Elation KL Panel XL is a full-color-spectrum LED soft light built for Film and Television applications that demand high output and precise color control. It is designed as a key and fill light source for sets, studios, and location work where consistent color quality matters.

This fixture incorporates a highly efficient 6-in-1 LED package that produces up to 44,000 field lumens at a 100° half-peak angle. It delivers full-spectrum color rendering with CCT adjustment from 2000 to 10000K and supports creative control features like section control, a virtual gel library, and high speed electronic shutter and strobe.

Compact and portable, the KL Panel XL can be mounted on a stand or suspended using standard clamps and the included Junior pin adapter. It supports AC power and 24-36 VDC battery operation, with onboard control via encoders and an OLED display plus integrated E-FLY internal extended range wireless DMX transceiver for flexible operation.

Key Features

• Full-Color-Spectrum Soft Light: Provides high output with precise color temperature control and full-spectrum color rendering for Film and Television.
• High Output Performance: Produces up to 44,000 field lumens at a 100° half-peak angle.
• 6-in-1 LED Engine: Uses a 6-in-1 full spectrum LED array for RGBWLC output.
• Flexible Power Options: Operates on AC 100-240V - 50/60Hz and supports 24-36 VDC battery operation battery not included.
• Onboard and Wireless Control: Includes stand-alone control with 3 encoders and OLED display plus E-FLY internal extended range wireless DMX transceiver.

Technical Specifications

Light Source
6-in-1 Full Spectrum LED Array

Total Lumen Output
up to 44,000 Total Lumen Output

Beam Angle
101°

LED Array
544W RGBWLC Red Green Blue White Lime Cyan LED Array

CRI
CRI 95

CCT Range
2000K - 10000K

Power Input
AC 100-240V - 50/60Hz

Battery Operation
24-36 VDC battery operation - battery not included

Max Power Consumption
544W

LED Life
50,000 Hour Average LED Life

Dimensions
33.8" L x 6.1" W x 12.1" H
Height with yoke 16.8"

Weight
37.9 lbs. Weight, Junior Pin 1.02 lbs.

Operating Temperature Range
14°F to 113°F -10°C to 45°C

Thermal Output
BTU/hr +/- 10% 1708.2

What’s in the Box

Barn Doors
Diffuser
Junior Pin (1 1/8" - 28mm)
