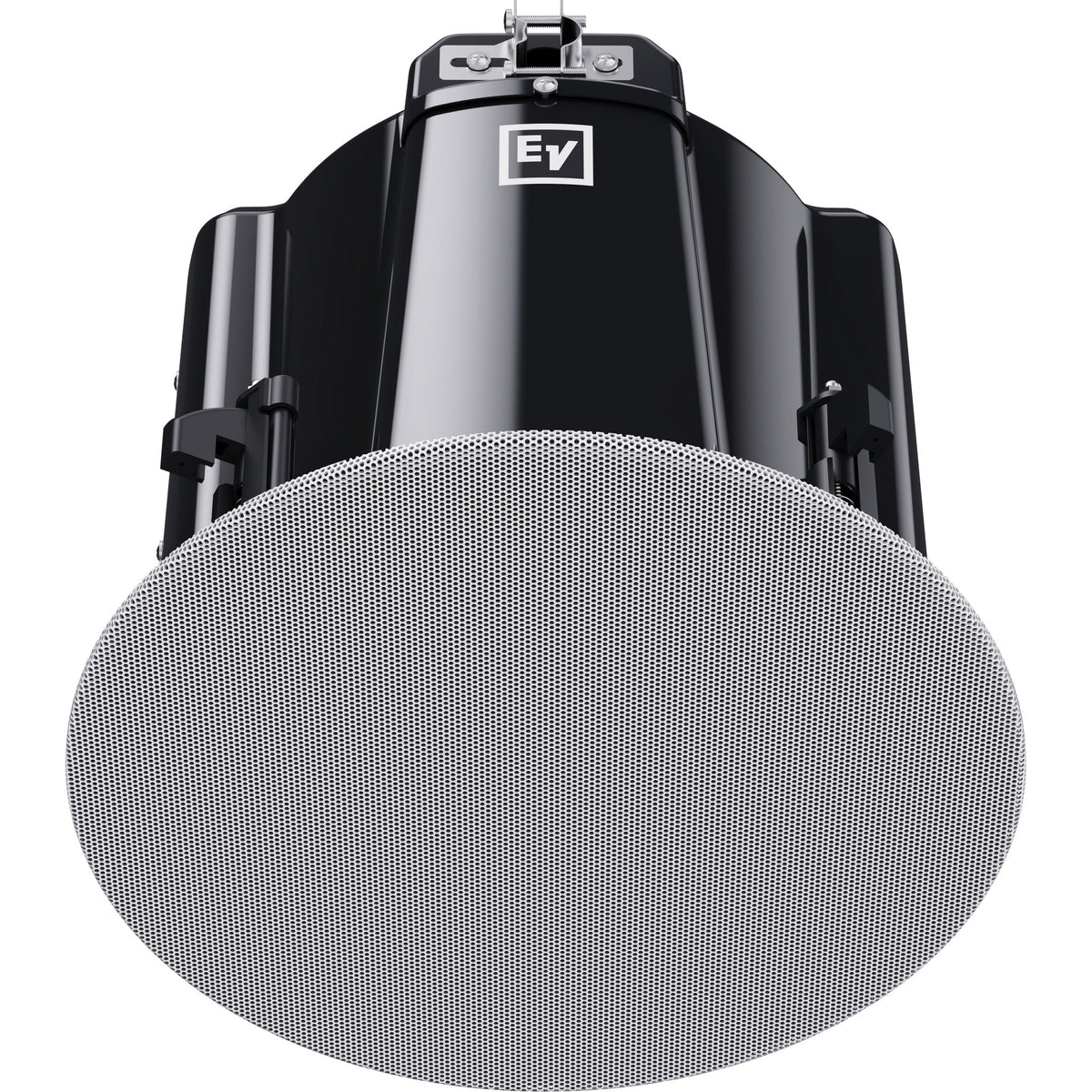

Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair
In stock SKU: EV-EVIDC82G2-F01U417783

ToneCraft Gear

Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair

$478.50

Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair The Electro-Voice EVID-C8.2-G2 is a powerful 8-inch coaxial ceiling speaker designed for large-scale commercial installations. Delivering strong bass extension, high-output performance, and excellent speech intelligibility, it is ideal for environments such as auditoriums, schools, retail...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair

The Electro-Voice EVID-C8.2-G2 is a powerful 8-inch coaxial ceiling speaker designed for large-scale commercial installations. Delivering strong bass extension, high-output performance, and excellent speech intelligibility, it is ideal for environments such as auditoriums, schools, retail stores, restaurants, and houses of worship. Its bezel-less magnetic grille ensures a clean ceiling appearance that blends seamlessly with modern architecture.

This ceiling speaker features selectable transformer taps for 70V/100V distributed audio systems, along with an 8-ohm bypass for direct low-impedance operation. The front-baffle tap switch makes adjustments quick and simple during installation. Built for durability and safety, the EVID-C8.2-G2 carries UL and CSA certifications and includes an EZ-Install system for secure mounting.

With its larger 8-inch woofer compared to smaller models, the EVID-C8.2-G2 offers extended low-frequency response and greater headroom, making it the go-to option for spaces that require both full-range music reproduction and clear voice announcements.

Key Features

  • 8-inch coaxial two-way design with 1-inch tweeter for full-range performance
  • Selectable transformer taps for 70V/100V operation plus 8-ohm bypass
  • Handles 90 W continuous power and up to 360 W peak power
  • 90-degree conical coverage ensures wide and even sound distribution
  • Bezel-less magnetic grille for sleek, unobtrusive ceiling integration
  • Front-baffle tap switch for easy system adjustments
  • UL and CSA certified for plenum spaces and commercial safety standards

Technical Specifications

  • Driver Size: 8 in woofer with 1 in tweeter
  • Frequency Response (-10 dB): 50 Hz – 20 kHz
  • Sensitivity (1 W/1 m): 90 dB SPL
  • Power Handling (Continuous/Peak): 90 W / 360 W
  • Nominal Impedance: 8 ohm (bypass)
  • Transformer Taps (70V): 3.8, 7.5, 15, 30, 60 W
  • Transformer Taps (100V): 7.5, 15, 30, 60 W
  • Coverage Angle: 90-degree conical
  • Cutout Diameter: 10.7 in
  • Overall Diameter × Depth: 11.9 in × 9.8 in
  • Mounting Depth: 9.6 in
  • Color: White (RAL 9003 Signal White)
  • Weight: 13.20 lb
