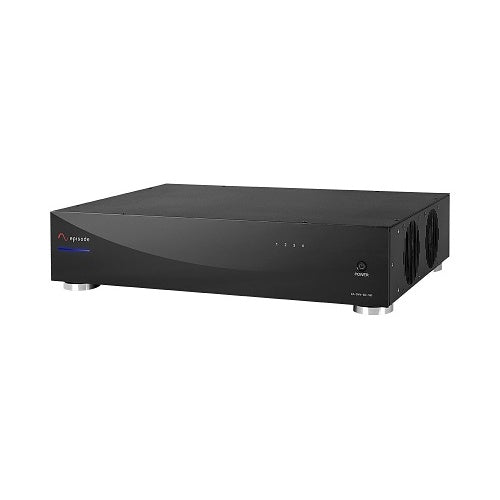

Episode EA-DYN-8D-100 Dynamic Series 8-Channel Class-D Multi-Zone Amplifier

The Episode EA-DYN-8D-100 Dynamic Series Class-D amplifier delivers clean, efficient multi-zone power for whole-home and light commercial audio systems. Eight amplifier channels provide up to 100 watts per channel (4 ohms; 50W RMS at 8 ohms), and any pair of channels can be bridged for 200 watts into 8 ohms when a larger room or higher-output speakers demand more headroom. Built on efficient Class-D amplification, the EA-DYN-8D-100 runs cool and quiet in the rack while achieving a signal-to-noise ratio greater than 103 dB and vanishingly low distortion.

Flexible input routing makes system design simple: each channel has its own analog input, and two global analog inputs plus global optical and coaxial (SPDIF) digital inputs let you distribute any two-channel source across any or all zones. Every zone also includes a dedicated subwoofer output with a 200 Hz crossover, so you can add low-end reinforcement anywhere without redesigning the system. Loop outputs allow easy expansion to additional amplifiers as the installation grows.

Installer-friendly touches round out the package: audio-sensing auto standby with 12V trigger in/out saves energy when no signal is present, per-channel gain controls make room balancing painless, and built-in surge protection (ESD tested to 15,000V, surge tested to 2,400V) protects the investment in real-world rack environments. The 2U chassis includes rack ears for a clean, professional installation, backed by Episode's 2-year limited warranty.

Features

• 8-channel Class-D multi-zone amplifier — 100W per channel at 4 ohms, 50W RMS at 8 ohms
• Bridgeable outputs: combine any two channels for 200W RMS into 8 ohms
• Global inputs: 2x analog plus optical and coaxial SPDIF digital, distributable to any or all zones
• Dedicated analog input per channel with adjustable gain for easy room balancing
• Subwoofer output for every zone (200 Hz crossover)
• Analog and optical/SPDIF loop outputs for system expansion
• Audio-sensing auto standby plus 3.5mm 12V trigger input and output
• Built-in surge protection — ESD tested to 15,000V, surge tested to 2,400V
• Rack-mountable 2U chassis with included rack ears

Technical Specifications

• Channels: 8
• Power Output: 100W per channel @ 4 ohms; 50W RMS per channel @ 8 ohms; 200W RMS bridged @ 8 ohms
• THD: < 0.05% @ 1W & 50W, 1 kHz
• Signal-to-Noise Ratio: > 103 dB
• Frequency Response: 20 Hz – 20 kHz (±2 dB at 1/8 power)
• Inputs: 1x analog per channel, 2x global analog, 1x global optical, 1x global coaxial SPDIF, 1x 3.5mm 12V trigger
• Outputs: speaker outputs x8, 1x analog subwoofer output per zone, 2x analog loop outputs, 1x optical/SPDIF loop output, 1x 3.5mm 12V trigger
• Rack Size: 2U full rack (rack ears included)
• Dimensions: 17.2 in W x 4.05 in H x 12.2 in D (437 x 103 x 310 mm)
• Weight: 14 lb
• Certifications: UL, CE, FCC
• Warranty: 2-year limited

What's Included

• EA-DYN-8D-100 8-Channel Class-D Amplifier
• Rack ears
• Power cord
• Installation manual
