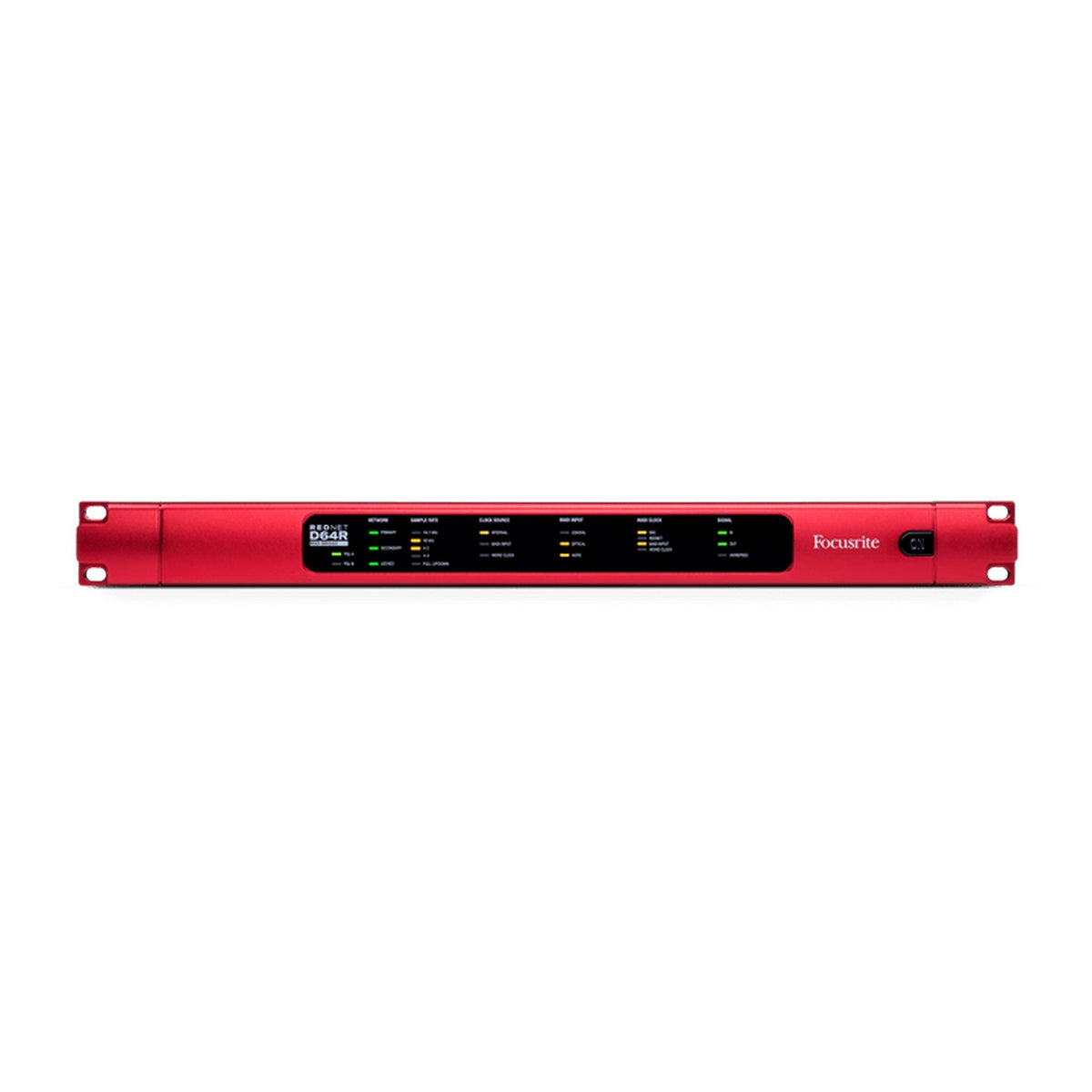

Focusrite RedNet D64R 64-Channel Dante Enabled MADI Bridge, 1RU

Focusrite RedNet D64R 64-Channel Dante Enabled MADI Bridge, 1RU

The RedNet HD32R seamlessly connects Pro Tools | HD systems to Dante audio-over-IP networks, offering 32 channels of high-performance I/O in a rugged 1U rackmount form. With dual DigiLink ports, network and power redundancy, flexible clocking, and front-panel indicators, it enables reliable, low-latency workflows across modern Dante systems.

Key Features

• I/O Integration: Acts as a 32 × 32 digital gateway (or 16 × 16 at 192 kHz) between Pro Tools | HD and Dante systems via dual Mini DigiLink connectors
• Redundancy: Dual etherCON network ports and dual internal power supplies (auto-switching), providing robust failover protection
• Clocking: Supports internal clock, Word Clock, Loop Sync, or Dante master clock with full pull-up/pull-down rate adjustments
• Sample Rates: Operates from 44.1 kHz up to 192 kHz (16 channels at highest rates), with pull-up/down for precise alignment
• LED Indicators: Front panel displays for PSU status, network lock, sample rate, and signal indicators
• Software Integration: Fully controllable via RedNet Control and Dante Controller, preserving familiar Pro Tools workflows while expanding Dante integration
• Build & Reliability: Rugged, roadworthy 1U chassis equipped for studio, live, or broadcast use—backed by a 3-year warranty

Technical Specifications

• Dimensions: 19" W × 10.3" D × 1.7" H (48.3 × 26.3 × 4.4 cm)
• Weight: 3.9 kg (8.6 lb)
• Power Consumption: ~30 VA; dual internal power inputs (100–240 V AC)
• Channel Count: 32×32 digital I/O (or 16×16 at 192 kHz)
• Clock Sources: Internal, Word Clock, Loop Sync, or Dante Network Master
• Network I/O: Dual etherCON Dante ports (redundant/switched modes)

What's Included

• 1 RedNet HD32R unit
• 2x IEC power cables + retaining clips
• 1x Safety & Quick Start documentation
• Access to RedNet Control software and Dante Controller
• 3-year Focusrite manufacturer’s warranty
