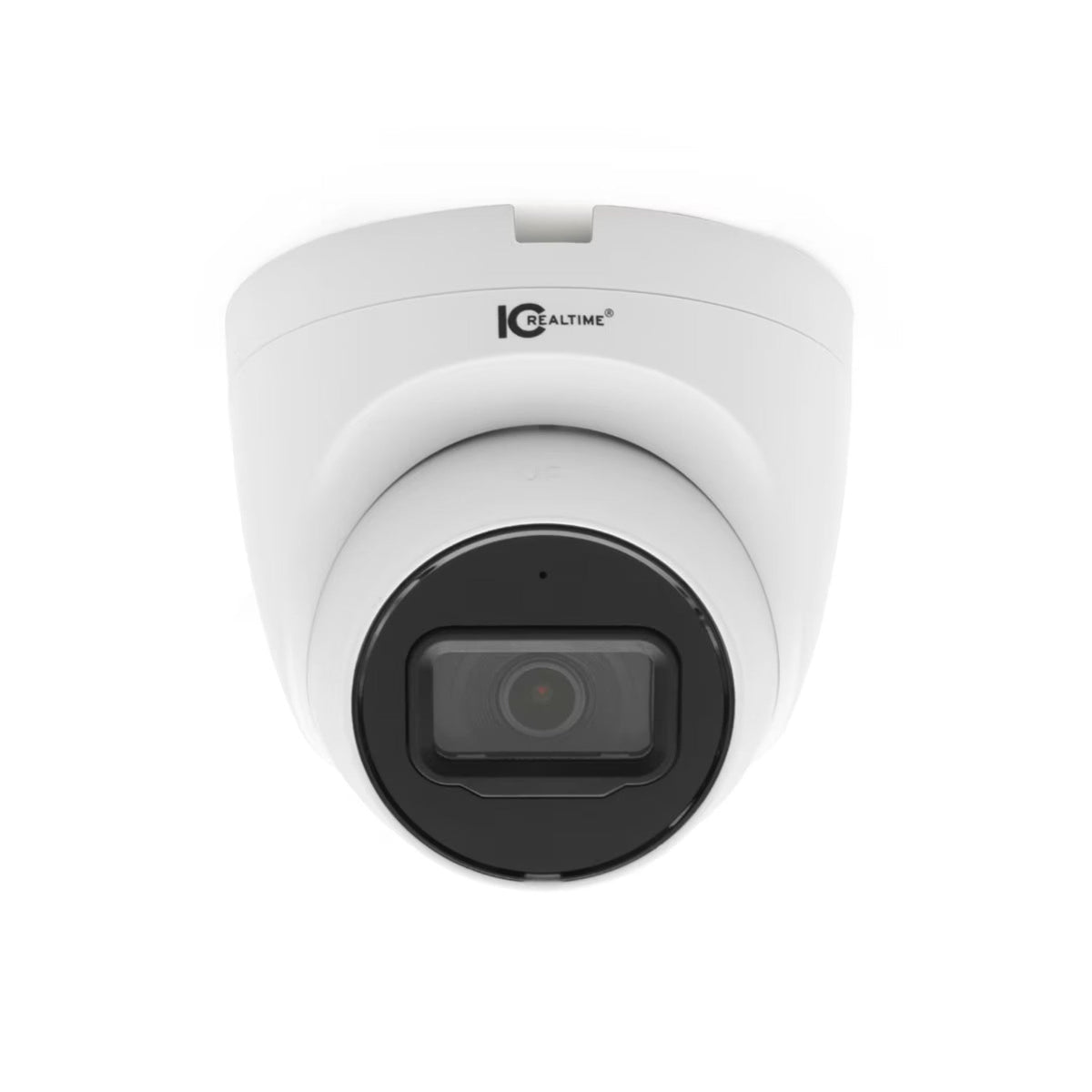

IC Realtime IPEG-E80F-IRW2 8MP 4K IP Eyeball Dome Security Camera

IC Realtime IPEG-E80F-IRW2 8MP 4K IP Eyeball Dome Security Camera

The IC Realtime IPEG-E80F-IRW2 is a compact, small-form 8MP (3840×2160) 4K IP security camera from the Edge series, engineered for reliable indoor and outdoor surveillance. Powered by a 1/2.8" progressive CMOS sensor and Starlight low-light technology, it delivers sharp, detail-rich footage down to 0.007 lux — making it equally effective in daylight lobbies and unlit parking lots. PoE connectivity and a fixed 2.8mm lens (106° horizontal field of view) make installation straightforward in virtually any fixed-coverage application.

Security integrators and facilities managers comparing the best 4K IP dome camera with AI analytics will find the IPEG-E80F-IRW2 punches well above its compact size. FlexSmartAI deep learning algorithms enable on-board intelligent motion detection and perimeter protection, dramatically reducing nuisance alerts from environmental triggers like shadows and foliage. For deployments where continuous audio monitoring matters — retail loss prevention, reception areas, or school hallways — the built-in microphone eliminates the need for a separate audio device. This outdoor 4K eyeball dome camera with IP67 weatherproofing handles rain, dust, and temperature swings from –40°F to +140°F without additional enclosures.

Triple-stream H.265/H.264 encoding optimizes both storage consumption and network bandwidth — a meaningful advantage in multi-camera NVR deployments where disk space and switch throughput are shared resources. With support for up to 256GB microSD on-board storage, the IPEG-E80F-IRW2 also functions as a standalone edge recorder for sites where continuous NVR connectivity isn't guaranteed. ONVIF compatibility ensures it integrates cleanly into mixed-brand VMS environments, and 120dB Wide Dynamic Range handles the harshest backlit scenes — entrances, windows, and outdoor transitions — without blowing out highlights or crushing shadows.

Key Features of the IC Realtime Edge Series 8MP Eyeball Dome

• 4K 8MP CMOS Sensor: A 1/2.8" progressive CMOS sensor captures 3840×2160 resolution, providing the pixel density needed for facial recognition workflows and court-admissible digital watermarked footage.
• Starlight Low-Light Technology: Achieves a minimum scene illumination of 0.007 lux at F1.4, enabling color-accurate imaging in near-darkness before switching to IR night vision mode.
• FlexSmartAI On-Board Analytics: Deep learning-powered intelligent motion detection and perimeter protection minimize false alarms, allowing operators to act on real threats rather than filter through noise.
• Smart IR LEDs — 98 ft Range: Dual IR LEDs automatically adjust intensity based on subject distance, preventing overexposure on close subjects while maintaining coverage at the edge of the detection zone.
• H.265 Triple-Stream Encoding: Reduces file sizes versus H.264 by up to 50%, extending NVR storage capacity and easing bandwidth demands on the network switch — critical in large camera deployments.
• IP67 Weatherproof & Vandal-Resistant: Rated for full dust ingress protection and sustained water immersion, the rugged aluminum housing stands up to outdoor installation without additional protective enclosures.
• Built-In Microphone & 256GB MicroSD Support: Onboard audio capture and local edge storage provide a complete surveillance solution without additional peripheral hardware.

Technical Specifications

• Model: IPEG-E80F-IRW2
• Image Sensor: 1/2.8" 8MP Progressive CMOS
• Effective Pixels: 3840 (H) × 2160 (V)
• Lens: 2.8mm Fixed
• Horizontal Field of View: 106°
• Max Frame Rate: 8MP @ 25/30 fps (AI disabled); 8MP @ 20 fps (AI enabled)
• Compression: H.265 & H.264 Triple-Stream
• Low-Light Technology: Starlight
• Minimum Illumination: 0.007 Lux @ F1.4
• IR LED Range: 98 ft (30 m)
• IR LEDs: 2
• Wide Dynamic Range: 120 dB
• Image Processing: WDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC/HLC
• Electronic Shutter: Auto/Manual, 1/3 s – 1/100,000 s
• S/N Ratio: > 56 dB
• Audio: Built-In Microphone
• On-Board Storage: MicroSD, up to 256GB
• Network Protocol: ONVIF Compatible
• Analytics: Intelligent Motion Detection, Perimeter Protection (4-Zone Rectangle)
• Privacy Masking: Yes
• Power Supply: PoE / 12V DC
• Power Consumption: Basic: 2.6W (12V DC) / 3.3W (PoE); Max: 6.9W (12V DC) / 7.9W (PoE)
• Weather Rating: IP67
• Operating Temperature: –40°F to +140°F (–40°C to +60°C)
• Operating Humidity: Less than 95% RH (non-condensing)
• Mount Type: Ceiling, Wall
• Rotation: Horizontal: 0°–360°; Vertical: 0°–78°; Rotation: 0°–360°
• Dimensions (W × H): 3.9" × 4.8" (99.1mm × 121.9mm)
