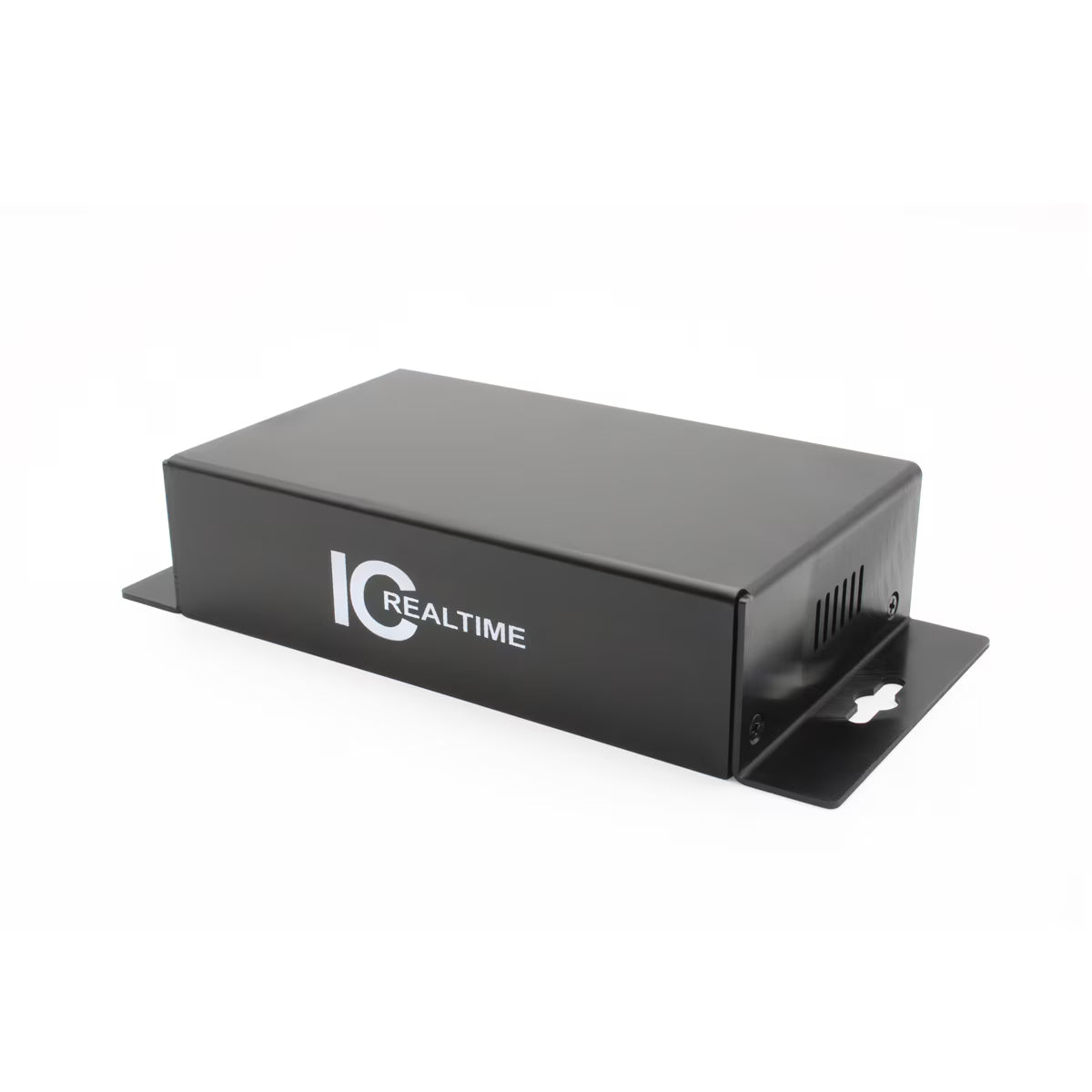

IC Realtime NVS-EG16-1U4K1 16 Channel and H.265 Network Video Streamer for IP Camera Decoding

IC Realtime NVS-EG16-1U4K1 16 Channel and H.265 Network Video Streamer for IP Camera Decoding

The IC Realtime NVS-EG16-1U4K1 is a professional 16-channel IP camera streaming box designed to convert network camera streams directly to HDMI or VGA displays. It delivers a simple, always-on live viewing solution for security stations, lobbies, and monitoring environments without requiring a PC or full NVR interface.

This IP decoder supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding with support for resolutions up to 12MP. A 4K HDMI output enables clear, detailed multi-camera viewing, while ONVIF Profile T, S, and G compatibility ensures interoperability with third-party IP cameras.

Built in a compact small form factor enclosure, the NVS-EG16-1U4K1 is ideal for rack shelves and space-constrained installations. It is well suited for guard desks, retail monitoring, reception areas, and commercial facilities that require reliable real-time camera display.

Key Features

• 16-Channel Live Viewing: Displays up to 16 IP camera streams simultaneously
• 4K HDMI Output: Supports high resolution HDMI output up to 3840 x 2160 at 30fps
• Multi-Format Decoding: Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG
• ONVIF Compatibility: Supports ONVIF Profile T, Profile S, and Profile G
• Flexible Layouts: Supports 1, 4, 8, 9, and 16 channel display modes
• Compact Design: Small form factor with two mounting points

Technical Specifications

• Maximum Channels: 16 IP camera streams
• Video Outputs: HDMI and VGA
• Maximum Output Resolution: 3840 x 2160 at 30fps
• Network Interface: Gigabit Ethernet RJ-45
• Supported Protocols: ONVIF, TCP/IP, RTSP, RTP
• Display Layouts: 1, 4, 8, 9, and 16 split views
• Power Input: 12V DC
• Operating Temperature: -10 C to +55 C

What’s in the Box

• Included Accessories: Power adapter and quick-start guide
