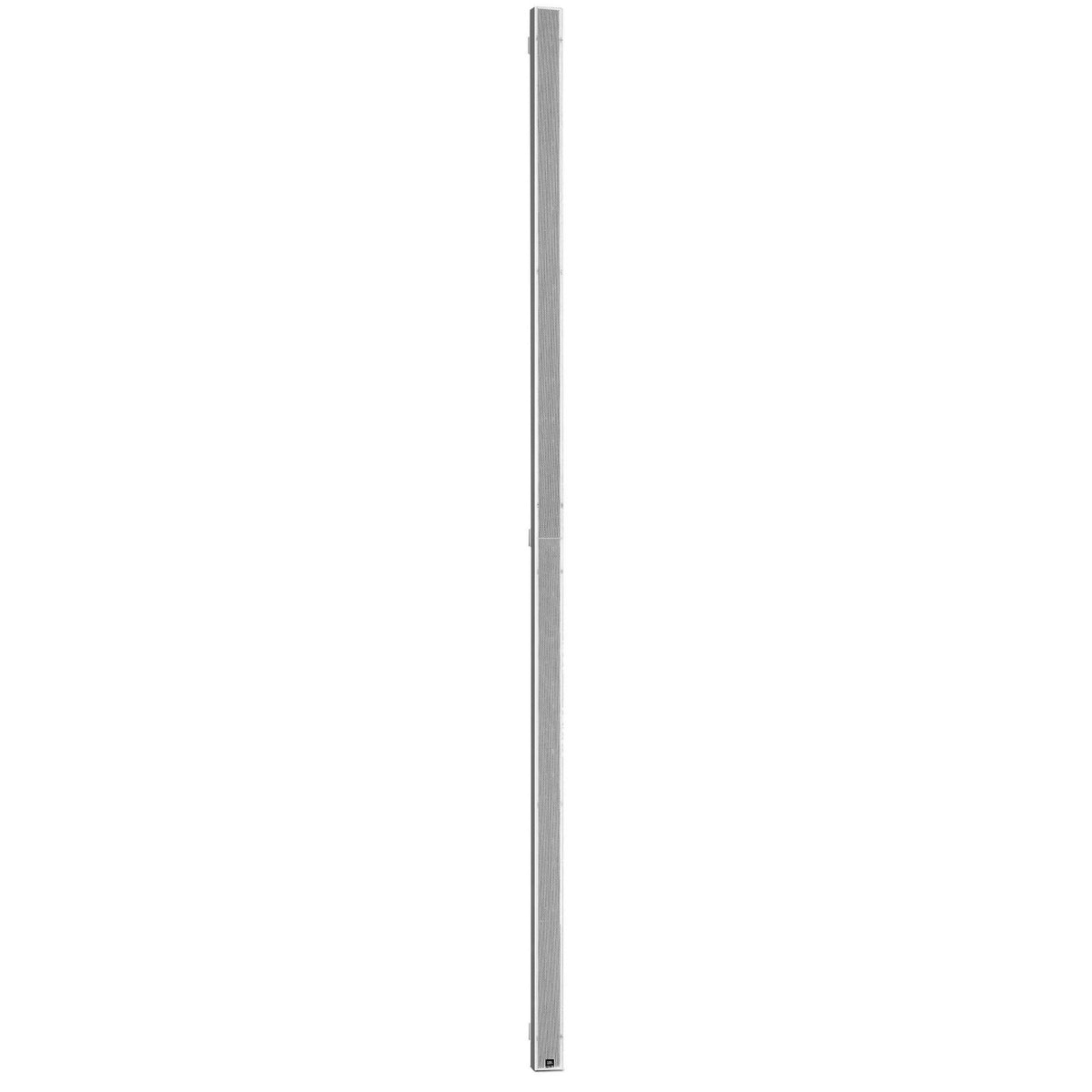

JBL Intellivox-DSX500 Active Beam Shaping, Self Powered Column Array Loudspeaker

The JBL Intellivox DSX500 is a cutting-edge digital steerable array loudspeaker designed to deliver superior audio performance with exceptional clarity and precision. Ideal for a variety of applications including auditoriums, conference rooms, and public venues, the DSX500 ensures that sound is directed exactly where it is needed, minimizing unwanted reflections and enhancing speech intelligibility. With its advanced beam-steering technology, the DSX500 provides unparalleled control over sound distribution, making it a perfect choice for environments where clear and focused audio is critical.

Equipped with state-of-the-art digital signal processing and multiple beam-steering options, the DSX500 can be customized to fit the acoustics of any space. Its sleek and modern design allows it to blend seamlessly into any architectural setting while delivering powerful and precise audio. Whether you're setting up a new sound system or upgrading an existing one, the JBL Intellivox DSX500 offers the performance and flexibility needed to achieve optimal sound quality.

Key Features

• Advanced digital beam-steering technology for precise sound coverage
• High-quality audio performance with exceptional clarity and intelligibility
• Versatile mounting options for easy installation in various environments
• Sleek, modern design that integrates seamlessly with architectural aesthetics
• Customizable audio settings to suit specific acoustic requirements

Technical Specifications

Frequency Response
90 Hz - 20 kHz
Max SPL
115 dB
Horizontal Coverage Angle
60°
Vertical Coverage Angle
15°
Dimensions (HxWxD)
60.2 x 6.3 x 6.3 inches (1526 x 160 x 160 mm)
Weight
34.2 lbs (15.5 kg)
Power Consumption
120 W
Input Connectors
2 x XLR, 1 x RJ45
Output Connectors
2 x XLR
