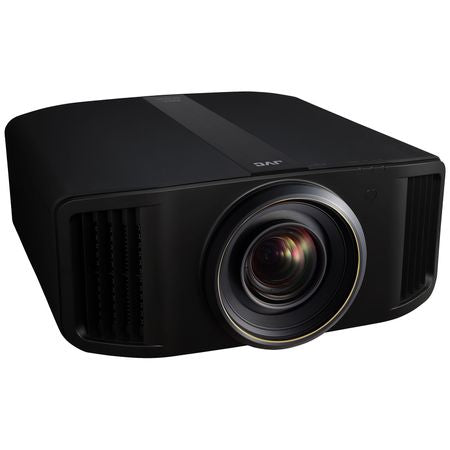

JVC DLA-RS4200 Reference D-ILA Laser 8K e-shift 3,300 Lumens Projector

JVC DLA-RS4200 Reference D-ILA Laser 8K e-shift 3,300 Lumens Projector

The JVC DLA-RS4200 is a flagship Reference D-ILA laser projector built for serious home theater installations that demand the highest image fidelity. Outputting 3,300 lumens through a 100mm all-glass lens, it is engineered for large-screen, light-controlled environments where image depth and accuracy are the primary concern.

The RS4200 supports 8K/60 and 4K/120 content via 8K e-shift processing and delivers a native contrast ratio of 150,000:1 with infinite dynamic contrast. A 1.35-to-2.75:1 throw ratio with 100% vertical and 43% horizontal lens shift allows flexible placement, while a maximum image size of 300 inches, 12V trigger, RS232 control, and LAN connectivity round out its integration credentials. Power supply accepts 110-240V for international installations.

Key Features

• 3,300-lumen laser light source with 100mm all-glass lens
• 8K/60 and 4K/120 support via 8K e-shift processing
• 150,000:1 native contrast ratio with infinite dynamic contrast
• 1.35-to-2.75:1 throw ratio with 100% vertical / 43% horizontal lens shift
• Maximum image size up to 300 inches
• 12V trigger, RS232, LAN, and 3D sync connectivity
• Universal 110-240V power supply

Specifications

• Power Consumption: 110v 4.5 amps
• Power Supply: 110-240v
• IR Receivers: internal
• 12V Trigger: yes
• Connectors: HDMI, 3 pin power, Lan USB, RS232, 3d sync, 12v 3.5mm mono
• Contrast Ratio: 150,000:1 Native. Infinite Dynamic
• Dimensions (W x H x D): 26 1/4x16 15/32x25 7/16
• Features: Laser, HDR,8K,4K120 High Contrast
• IR Inputs: receiving port only
• Weight: 55.7
• Lens Shift: 100% Vert 43% Hor
• Lightsource: Laser
• Lumens: 3,300
• Maximum Image Size: 300 in dia.
• Throw Ratio: 1.35 to 2.75:1
• Zoom Ratio: 1.35 to 2.75:1
• Aspect Ratio: 17:9
• Inputs: 2 HDMI
• Supported Resolutions: All
