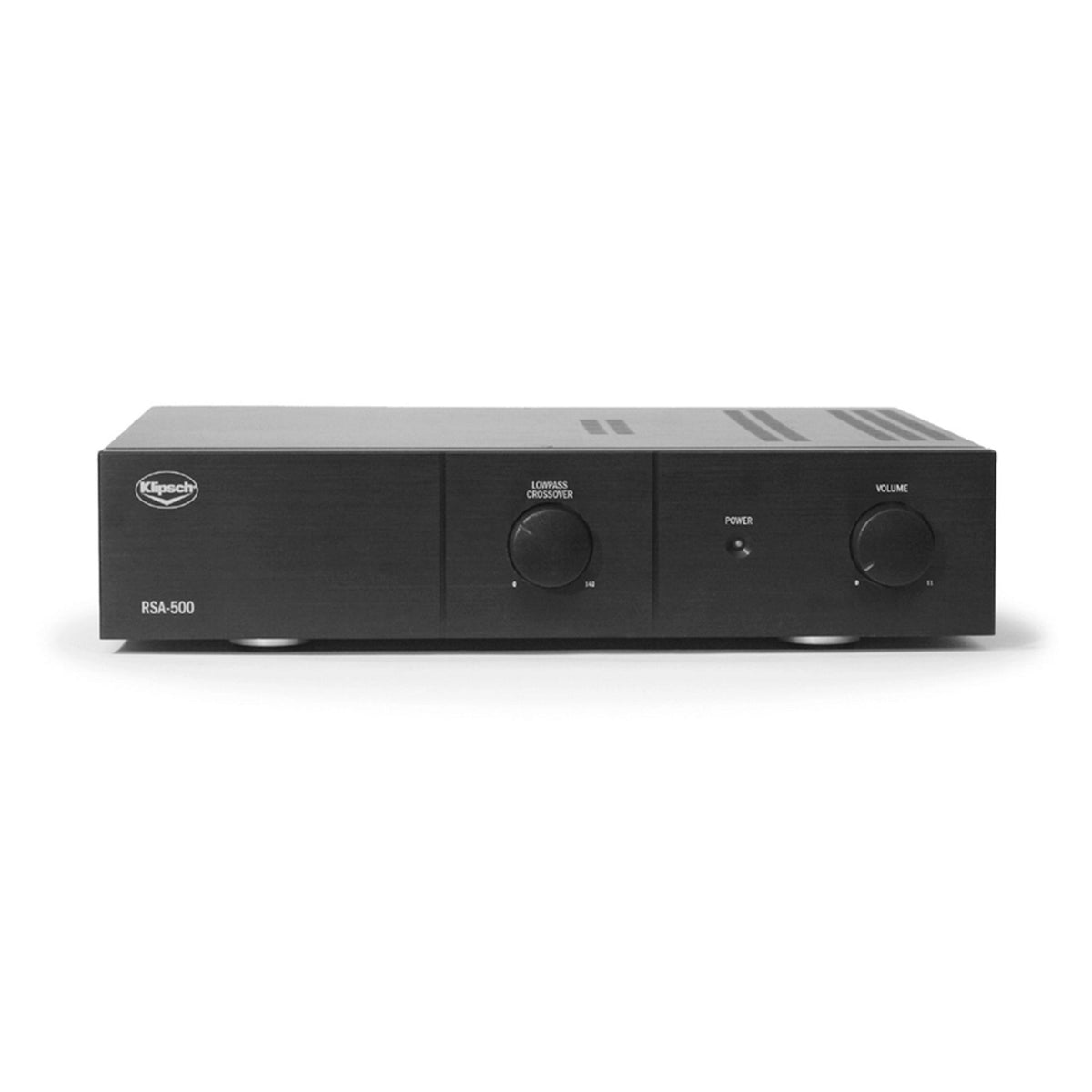

Klipsch RSA-500 Reference Premiere Series Subwoofer Amplifier

Klipsch RSA-500 Reference Premiere Series Subwoofer Amplifier

The Klipsch RSA-500 is a high-performance subwoofer amplifier engineered to deliver powerful and precise bass for custom audio installations. Designed to complement Klipsch's passive in-wall and outdoor subwoofers, this amplifier provides robust power output and versatile connectivity options, ensuring seamless integration into various audio setups.

Featuring a black anodized aluminum faceplate and a compact form factor, the RSA-500 fits elegantly into any rack-mounted system. Its advanced features, including selectable EQ settings and auto-on/off circuitry, offer enhanced control and efficiency, making it an ideal choice for both residential and commercial audio applications.

Key Features

• Power Output: 300W RMS into 8 ohms; 500W RMS into 4 ohms
• EQ Settings: Selectable EQ switch for optimized performance with various subwoofers
• Auto-On/Off: Selectable signal-sensing or voltage-triggered activation
• Inputs: Line-level RCA and speaker-level inputs for flexible connectivity
• Outputs: Gold-plated RCA outputs for high-quality signal transmission
• Phase Control: Switchable between 0 ° and 180 ° for precise bass alignment
• Rack Mountable: Includes rack ears for easy integration into standard equipment racks

Technical Specifications

• Frequency Response: 20Hz – 1kHz ±3dB
• Voltage: 110/120 VAC, 60Hz
• Finish: Black anodized aluminum faceplate
• Dimensions (W x H x D): 16.8" x 3.5" x 12.6"
• Weight: 18 lbs

What's Included in the Box

• Klipsch RSA-500 Subwoofer Amplifier
• 8' AC power cord
• 2 rack mount brackets
• 4 machine screws
• Owner's manual
