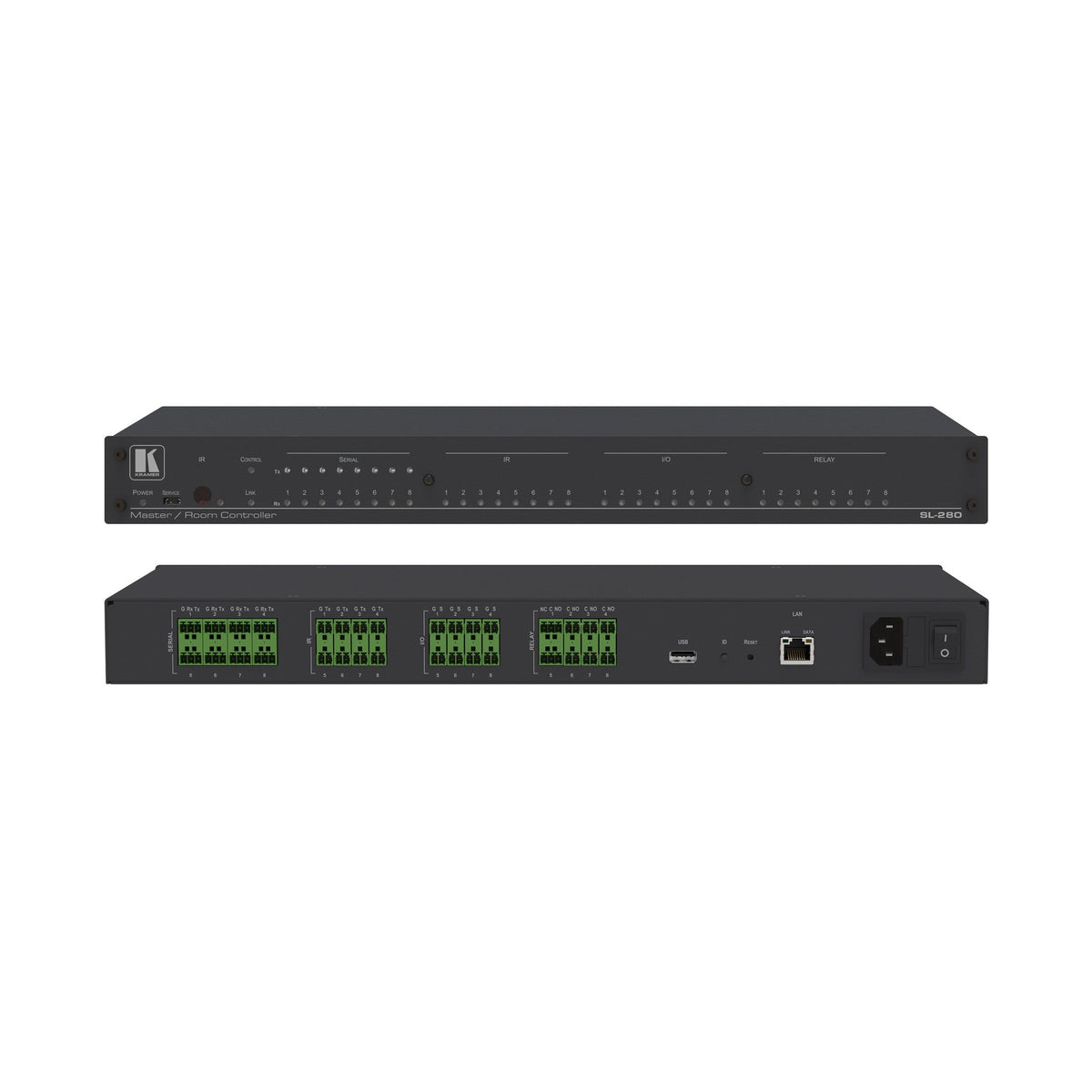

Kramer 32-Port Master / Room Controller

The Kramer SL-280 is a versatile control system designed for small to large spaces in commercial, educational, and government sectors. It provides comprehensive control through multiple bidirectional ports, including RS-232, GPI/O, Ethernet, and micro-USB. With 8 IR outputs and 8 relays, this system offers flexible control for a variety of applications. Its 1GHz processor and 512MB RAM ensure smooth operation, while the user-friendly interface and LED indicators make it easy to manage and monitor functions.

The SL-280 is an excellent solution for controlling AV equipment, lighting, and other systems in commercial or educational environments, providing a streamlined way to manage devices with high efficiency. It supports firmware upgrades via the micro-USB port, ensuring it remains up to date with the latest features and improvements.

Key Features:

• 8 RS-232 serial ports (3-pin terminal blocks)
• 8 GPI/O ports (2-pin terminal blocks)
• 1 Ethernet port (RJ-45 connector)
• 1 micro-USB port for P3K commands and firmware upgrades
• 1 built-in IR sensor (for learning)
• 8 IR outputs and 8 relays (2-pin terminal block connectors)
• LED indicators for each port and function
• 1GHz processor and 512MB RAM, 4GB Flash
• Power consumption: 100-240V AC, 200mA

Technical Specifications:

Applications: Controls small to large spaces in commercial, education, and government sectors
Bidirectional Ports: 8 RS-232, 8 GPI/O, 1 Ethernet, 1 micro-USB
Inputs: 1 built-in IR sensor (for learning)
Outputs: 8 IR outputs, 8 relays
Processor Speed: 1GHz
Memory: 512MB RAM, 4GB Flash
Power Consumption: 100-240V AC, 200mA
Product Dimensions: 19" x 7.20" x 1U (43.6cm x 18.30cm x 4.36cm)
Product Weight: 1.7kg (3.6lbs)
Shipping Dimensions: 21.65" x 10.87" x 4.21" (55.00cm x 27.60cm x 10.70cm)
Shipping Weight: 2.6kg (5.7lbs)

Package Contents:

• Kramer SL-280 Control System
• Power supply
