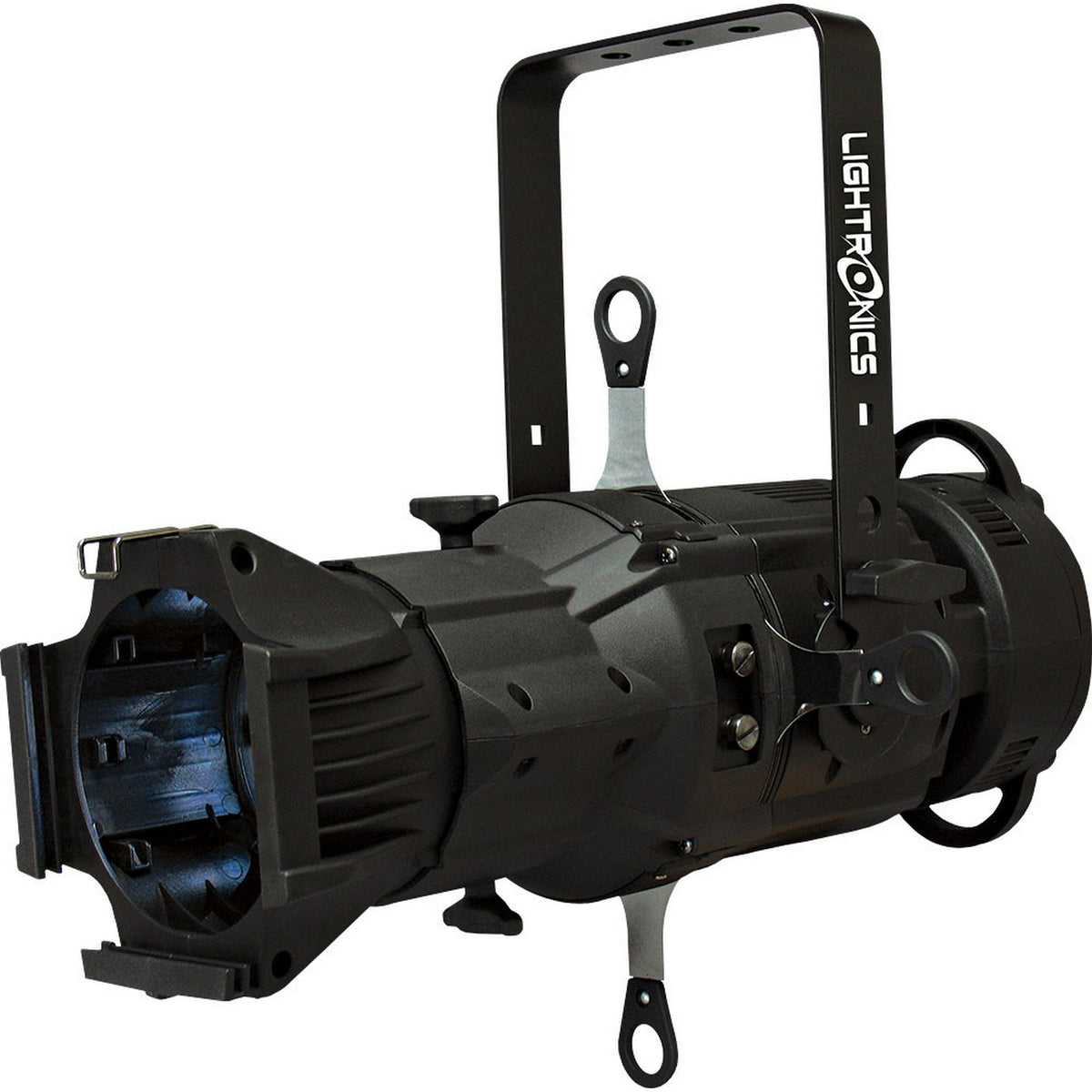

Lightronics FXLE1260W LED Ellipsoidal Lighting Fixture

Lightronics FXLE1260W LED Ellipsoidal Lighting Fixture

Lightronics FXLE1260W is a dimmable LED ellipsoidal lighting fixture designed for stage, theater, church, and event environments. It enables controlled white light output for lighting operators and technicians, supporting front lighting and focused illumination workflows. This makes it ideal for venues where consistent beam control and efficient operation are critical.

The fixture operates using an Edison-based LED array and supports standalone, master slave, and DMX control modes. An electronic dimmer and strobe system allows controlled light output through a simple two channel control structure. The optical system uses a glass reflector to maintain defined beam projection.

This fixture is suited for permanent installations and portable lighting systems that require reliable output with low power consumption. Its plastic housing supports indoor use while reducing overall fixture weight. Multiple beam spread options allow adaptation to different throw distances and coverage needs.

Key Features

• LED Ellipsoidal Design: Provides focused white light for theatrical and architectural use
• Multiple Beam Options: Available beam spreads support varied projection distances
• DMX and Standalone Control: Operates with external controllers or independent modes
• Electronic Dimming: Supports smooth intensity adjustment and strobe operation
• Lightweight Housing: Plastic construction suitable for indoor installations

Technical Specifications

Power Supply
AC100V-240V, 50/60Hz

Power Consumption
Max. 150W

Switch Power Supply
Built in and Auto Switching

LED
120W Edison

LED Color Temp.
5500K

LED Lifespan
>50,000 Hours

Control
Auto, Master Slave and DMX

DMX Channels
2 Channels

Electronic Strobe
0-20Hz

Electronic Dimmer
0-100%

DMX In/Out
3-Pin XLR

Display
LED Display

Cooling Method
3 Fans

IP Rating
IP20

Housing
High Impact Plastic

Dimensions (LxWxH)
23.9" x 10.7" x 11.1"

Weight
12 pounds
