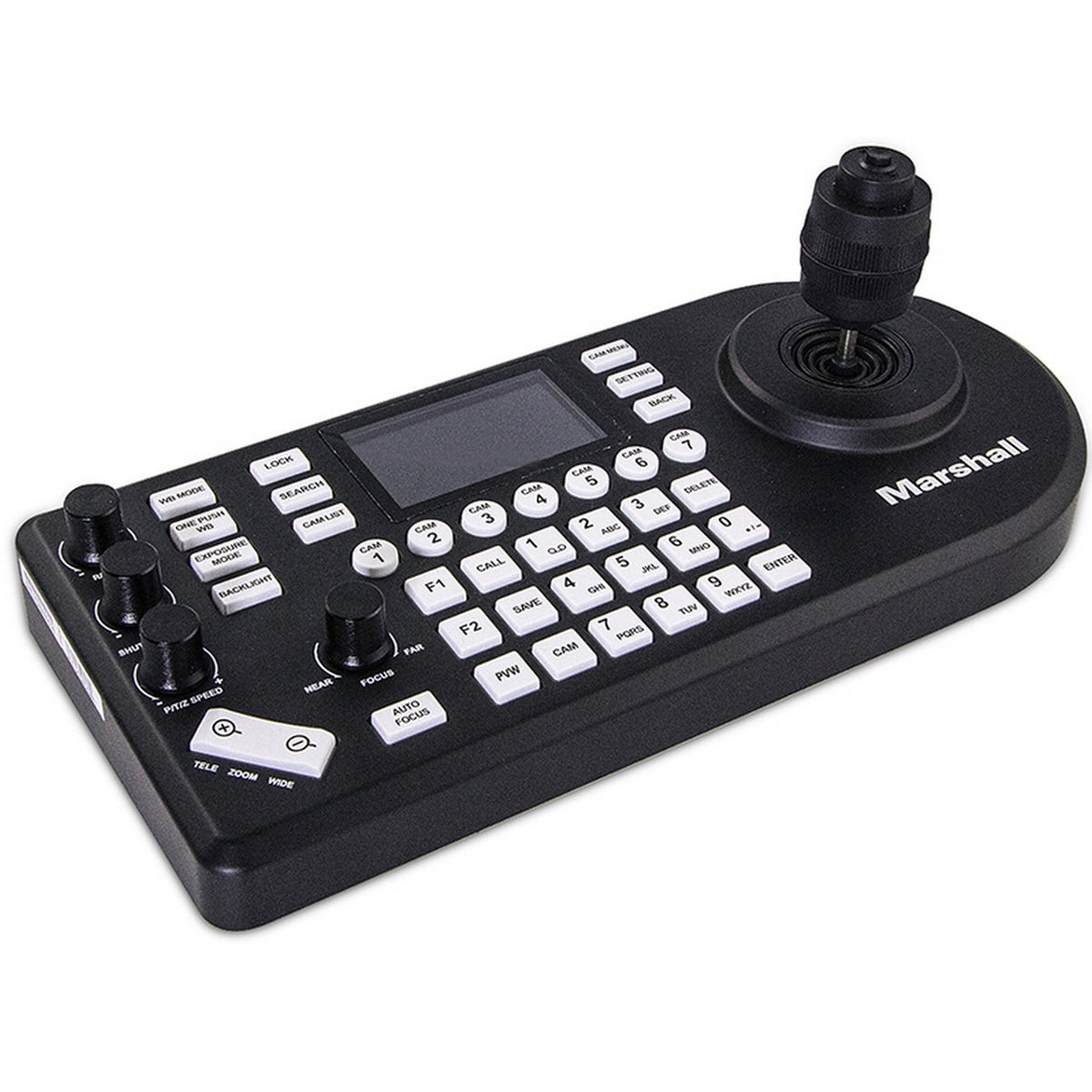

Marshall Electronics VS-PTC-300 PTZ IP/NDI Camera Controller

The Marshall VS-PTC-300 is a professional-grade PTZ camera controller designed for seamless integration across various camera protocols, including IP, NDI®, RS-232, and RS-422. Equipped with a high-quality 4-axis joystick and a tactile zoom rocker, it allows for precise pan, tilt, and zoom operations, making it ideal for live event production, broadcasting, houses of worship, education, and other professional AV applications.

Featuring a 3" LCD screen with RTSP and NDI preview capabilities, the controller supports automatic discovery and assignment of IP/NDI cameras within a network. It offers comprehensive control over camera settings such as exposure, shutter speed, iris, white balance, focus, and movement speeds. With support for up to 255 cameras via IP, 14 via RS-422, and 7 via RS-232, the VS-PTC-300 provides a versatile solution for complex multi-camera setups.

Key Features:

• Supports control of up to 255 cameras via IP, 14 via RS-422, and 7 via RS-232
• Compatible with protocols: VISCA, VISCA over IP, PELCO D/P, ONVIF, and NDI
• High-quality 4-axis joystick for pan, tilt, and zoom control
• Professional zoom rocker for smooth zoom adjustments
• 3" LCD screen (640x360) with RTSP and NDI preview support
• Automatic IP/NDI camera discovery and IP address assignment
• Dedicated knobs for iris, shutter speed, gain, focus, and movement speed
• Multi-color illuminated buttons for intuitive operation
• Stores up to 256 camera presets with image setting parameters
• Firmware upgradeable via USB or product webpage

Technical Specifications:

Display: 3" LCD, 640x360 resolution
Joystick: 4-axis (pan/tilt/zoom)
Zoom Control: Seesaw lever
Control Interfaces: RS-232 (RJ45), RS-422 (RJ45), Ethernet (RJ45 with PoE), USB-A (firmware updates)
Supported Protocols: VISCA, VISCA over IP, PELCO D/P, ONVIF, NDI
Camera Presets: 255 via IP, 7 via RS-232
Power Supply: 12V DC or PoE (802.3af), 5W power consumption
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Housing: Metal with plastic buttons
Security: Kensington lock slot

Package Contents:

• Marshall VS-PTC-300 PTZ Camera Controller
• Power Adapter
• Power Cable
• User Manual
