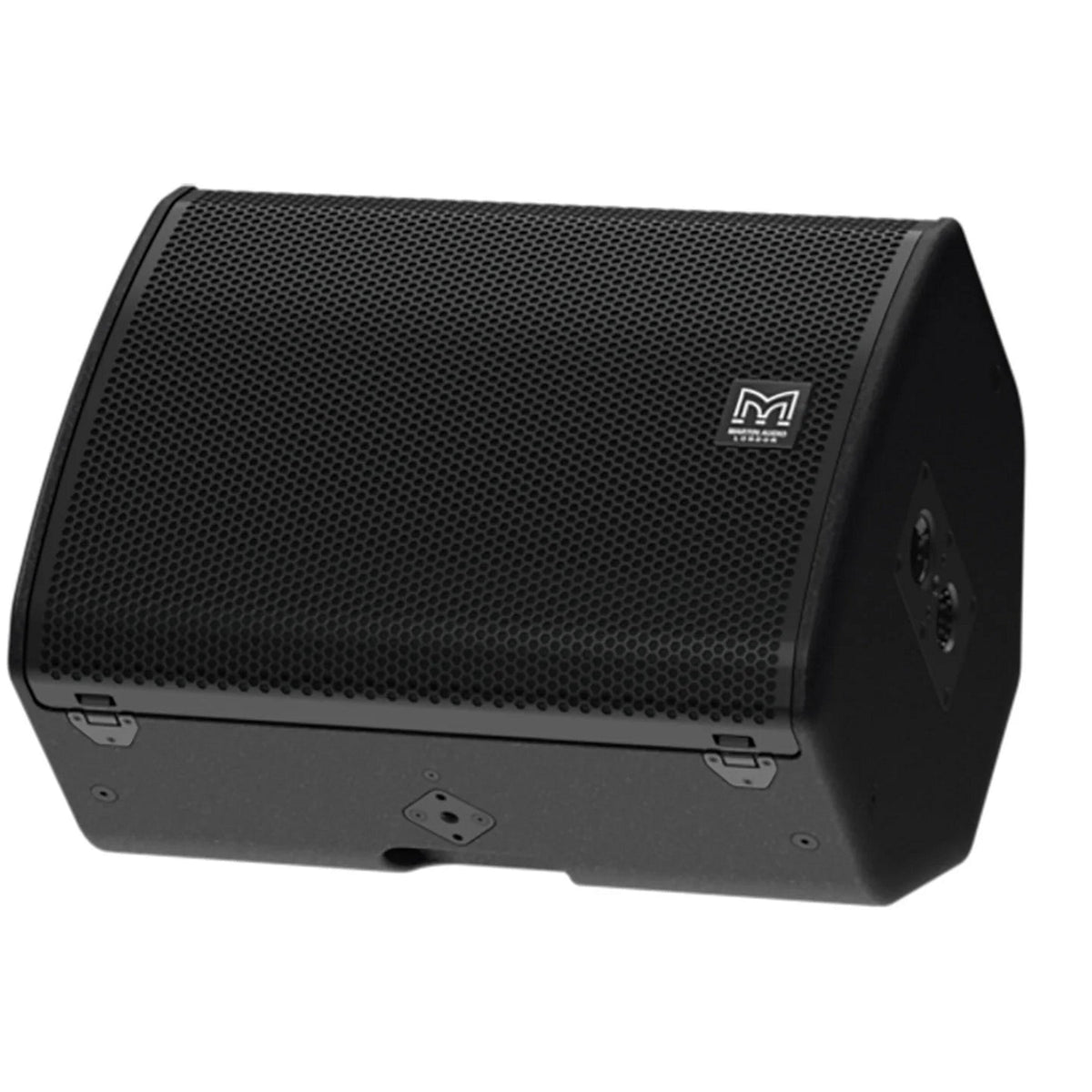

Martin Audio FP12 12-Inch Passive 2-Way FlexPoint Loudspeaker

Martin Audio FP12 12-Inch Passive 2-Way FlexPoint Loudspeaker

Professional Grade Sound Reinforcement

The Martin Audio FP12 is a high-performance 12-inch passive 2-way loudspeaker designed to deliver exceptional audio clarity and output for a wide range of professional applications. Featuring a coaxial point source configuration, this loudspeaker integrates a 12” low-frequency driver with a 3” voice coil and a 1.4” exit high-frequency driver with a 3” titanium diaphragm. Its compact, multi-angle design allows for flexible positioning, making it ideal for live sound, theater installations, stage monitoring, and DJ use.

Engineered with a robust plywood enclosure finished in a hardwearing textured black paint, the FP12 is built for durability in demanding environments. The enclosure includes a quick-release steel grille with a triple-layer polyester backing and an IP54 rating, ensuring reliable protection against dust and water ingress. Designed for use with iKON or VIA amplifiers and compatible with Display 3 modeling software, the FP12 combines versatility, power, and premium performance in a compact footprint.

Key Features

• Coaxial Point Source Configuration: 12" LF driver and 1.4" HF exit driver with 3" titanium diaphragm
• Multi-Angle Enclosure: Suitable for both portrait and landscape orientation
• High Output: Capable of 128 dB peak SPL for impactful sound
• Durable Construction: Plywood enclosure with IP54-rated grille for dust and water resistance
• Mounting Flexibility: Multiple M10 and M8 fixings, dual pole-mount, and handle pockets

Technical Specifications

• Type: Coaxial passive 2-way
• Frequency Response: 55 Hz – 20 kHz ±3 dB; -10 dB at 44 Hz with preset
• Crossover Frequency: 1.5 kHz
• Sensitivity: 97 dB (2.83V @ 1m)
• Nominal Impedance: 8 Ohms
• Power Handling: 350 W AES, 1400 W peak
• Maximum SPL: 122 dB continuous, 128 dB peak
• Dispersion: 90° horizontal x 60° vertical (-6 dB)
• Connectors: 2 x Neutrik speakON NLT4MPXX-BAG
• Input Pin Connections: 1+ / 1-
• Link Pin Connections: 1+/-, 2+/-
• Fittings: 4 x M10, 17 x M8, dual pole-mount socket, 2 x handle pockets
• Dimensions (W x H x D): 20.5" x 15.4" x 13.6"
• Weight: 38.6 lbs
• Enclosure Volume: 33.5 liters

What’s Included

• Martin Audio FP12 12" Passive 2-Way FlexPoint Loudspeaker
