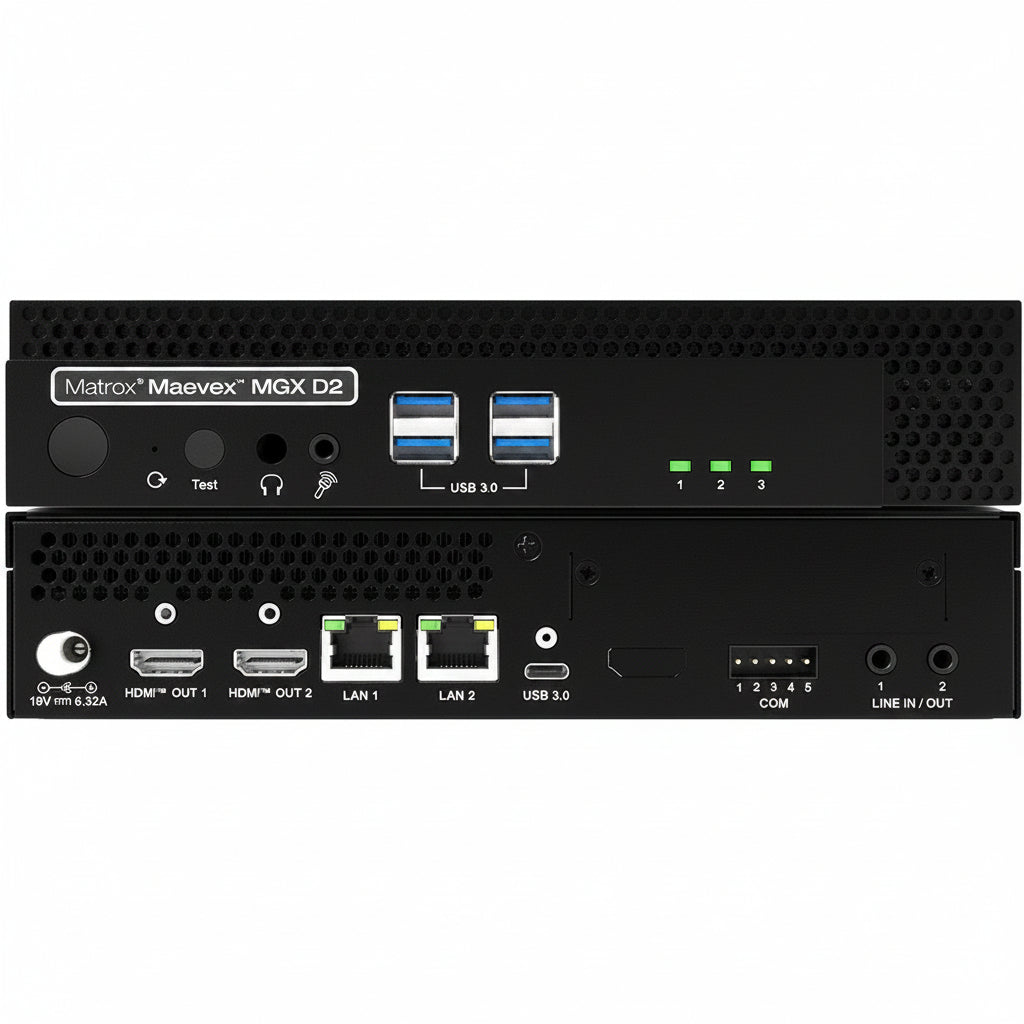

Matrox Maevex MGX D2 Dual 4K60 AV-over-IP Decoder

Matrox Maevex MGX D2 Dual 4K60 AV-over-IP Decoder

The Matrox Maevex MGX D2 Dual 4K60 AV-over-IP Decoder receives professional H.265 and H.264 network video and delivers up to two simultaneous 4K60 outputs. It also decodes as many as eight 1080p60 streams, supports H.265 4:4:4 color, and integrates IPMX and Matrox IQ Mode for flexible low-latency video distribution.

Built for enterprise AV, control rooms, medical environments, remote workstations, and mission-critical installations, the MGX D2 combines dual 4K60 decoding with Picture-in-Picture, Picture-by-Picture, and 1080p quadrant compositing. Buyers needing a dual-output 4K60 AV-over-IP decoder can also use integrated video scaling and preview functions without adding a dedicated multiview processor.

Dual 2.5GbE-capable network interfaces support scalable IP infrastructure, while five USB connections extend keyboard, mouse, and webcam functionality between endpoints. Matrox IQ Mode achieves glass-to-glass latency as low as 16 ms with compatible MGX encoders. NMOS IS-04 and IS-05, Matrox Central Manager, and a browser-based Web UI support professional discovery, routing, configuration, and device management.

Key Features

• Dual 4K60 Decoding: Decodes and outputs up to two simultaneous 4K60 video streams for high-resolution AV-over-IP installations.
• High-Density Full HD: Handles up to eight simultaneous 1080p60 streams using supported H.265 or H.264 configurations.
• H.265 4:4:4 Support: Preserves detailed color information for professional graphics, desktop, and visualization workflows.
• Low-Latency Matrox IQ Mode: Supports glass-to-glass latency as low as 16 ms, or one frame, with compatible MGX encoders.
• Integrated Multiview: Provides fixed Picture-in-Picture, Picture-by-Picture, and 1080p quadrant compositing formats.
• Dual 2.5GbE Networking: Two 1000/2500 Base-T RJ45 interfaces provide flexible network connectivity with separate MAC addresses.
• USB Extension: Four front USB Type-A ports and one rear USB Type-C port support keyboard, mouse, and webcam devices.
• Professional AV Management: Supports IPMX, NMOS IS-04/IS-05, Matrox Central Manager, and Web UI configuration.

Technical Specifications

Product

• Model: Maevex MGX D2
• Product Type: AV-over-IP Decoder
• Base Part Number: MVX-MGXD2Y
• North American MPN: MVX-MGXD2Y-NA
• North American SKU: MVXMGXD2YNA
• Form Factor: Standalone appliance
• Rack Mounting: 1U, 1/2-rack horizontal with optional rackmount hardware

Video and Audio Connectivity

• HDMI Inputs: None
• HDMI Outputs: 2 x HDMI Type A with retention screws
• Microphone Input: 1 x 3.5 mm port; future firmware support
• Line Input: 1 x 3.5 mm port; future firmware support
• Headphone Output: 1 x 3.5 mm port; future firmware support
• Line Output: 1 x 3.5 mm port; future firmware support
• COM Port: 5-pin COM port; future firmware support

Network and USB Connectivity

• LAN 1: 1000/2500 Base-T RJ45
• LAN 2: 1000/2500 Base-T RJ45
• Network Interfaces: Separate MAC address for each LAN connection
• Front USB Ports: 4 x USB Type-A
• Rear USB Port: 1 x USB Type-C
• USB Device Support: Keyboard, mouse, and webcam

Video Decoding Performance

• Maximum Video Output: Up to 2 x 4Kp60
• H.265 Decoding: Up to 2 x 4Kp60 or 8 x 1080p60 in 4:2:0 or 4:4:4
• H.264 Decoding: Up to 2 x 4Kp60 or 8 x 1080p60 in 4:2:0
• Matrox IQ Mode Latency: As low as 16 ms glass-to-glass, or one frame
• MGX E1 Pairing Latency: Two frames total when used with an MGX E1 encoder
• IPMX Latency: As low as 120 ms glass-to-glass

Video and Audio Processing

• Video Scaling: Supported
• Video Compositing: Fixed Picture-in-Picture, Picture-by-Picture, and 1080p quadrant formats
• Preview Mode: Supported
• HDCP Support: Versions 1.4 and 2.3
• Audio Format: MPEG-4 AAC-LC, Raw and ADTS
• Audio Bitrate: Up to 1152 Kbps AAC-LC
• H.265 Color Support: 4:2:0 8-bit and 10-bit; 4:4:4 8-bit and 10-bit up to 100 Mbps
• H.264 Color Support: 4:2:0 8-bit up to 100 Mbps
• Uncompressed Audio: Supported with IPMX and Matrox IQ Mode
• AAC-LC Stereo Pair Bitrate: 32 to 1152 Kbps
• Decoder Video Bitrate: 50 Kbps to 400 Mbps per stream

Network and Streaming

• Network Operation: Auto speed and half/full duplex
• IGMP: Versions 2 and 3
• Routing: Unicast and multicast
• IP Addressing: IPv4 and IPv6
• Address Configuration: DHCP by default or static IP
• Command and Control: mDNS, LLMNR, and HTTPS over TCP
• NMOS: IS-04 discovery and IS-05 connection management
• Streaming Formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS
• SRT Modes: Caller, sender, and rendezvous

Physical and Environmental

• Dimensions: 8.1 x 7.3 x 1.8 inches
• Weight: 2.7 lb
• Operating Temperature: 32 to 104°F
• Regulatory Compliance: CE Class A, FCC Class A, ICES-003 Class A, KC Class A, RCM Class A, UKCA Class A
• Environmental Compliance: China RoHS, EU RoHS, REACH, WEEE

Power, Software, and Accessories

• Power Supply Input: 110-240V AC
• Power Supply Output: 19V DC, 90W
• Management Software: Matrox Central Manager
• Configuration Interface: Web UI
• API: NMOS IS-04 and IS-05
• Optional Routing Hardware: ConductIP NMOS-based routing solution, CDCTIP-MRA2Y
• Optional Rackmount Kit: RMK-19TR-A
• Optional HDMI Secure Cable Solution: SK-SLND-4
• Optional Angle Bracket Kit: RMK-6BRKT-A
• Standard Warranty: 2 years

What's In the Box

• Matrox Maevex MGX D2 Decoder
• 110-240V AC to 19V DC, 90W Power Supply
