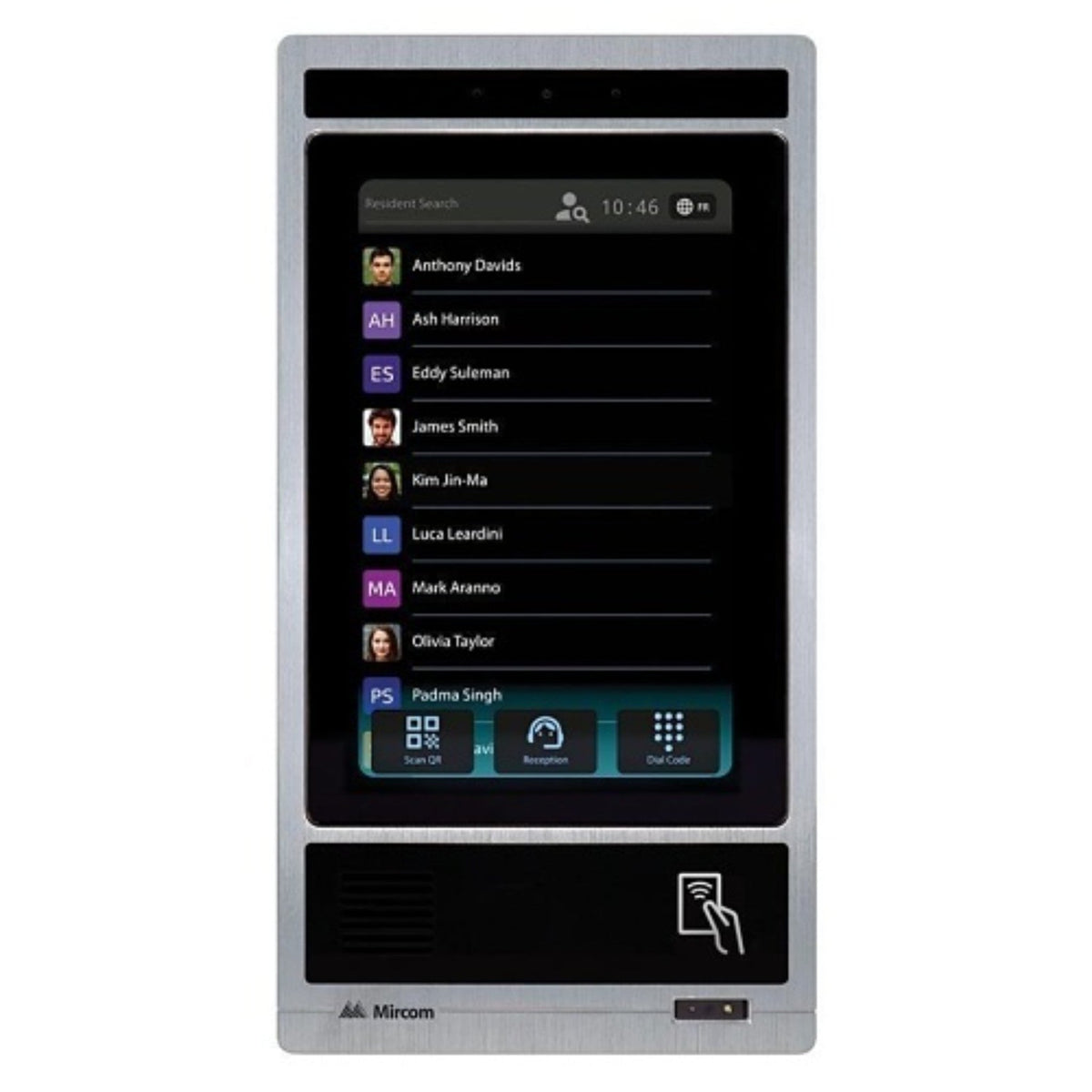

Mircom TX3-T10-G 10" Touch Video Intercom Access System

Mircom TX3-T10-G 10" Touch Video Intercom Access System

The Mircom TX3-T10-G Touch Access System is a modern 10" touch video intercom built to deliver a visually impressive and highly intuitive entry experience for occupants and visitors. Designed with a vandal-resistant, weather-resistant enclosure, it supports professional access control in a wide range of multi-tenant and commercial environments.

Ideal for condominiums, apartment buildings, office buildings, gated communities, and industrial buildings, the TX3-T10-G combines a full-color touchscreen directory with flexible calling options over traditional phone lines (PSTN) or VoIP through the Mircom MiVoIP cloud service. A built-in controller manages access for two doors, while integrated audio technologies help deliver clear two-way communication at the point of entry.

Key Features of the TX3-T10-G Touch Access System

• 10" Full-Color Touch Display: Wide viewing angles and a modern interface designed to be easy to use and visually impressive.
• Automatic Light/Dark Themes: Display themes adjust to ambient light levels for improved day and night readability.
• Intuitive Visitor Calling Interface: Call button, scrolling name directory, and name grouping to help visitors quickly find and contact occupants.
• Dual Keyboard Layouts: Includes Full QWERTY or QWERTY (English and French) with numpad for flexible directory navigation and PIN entry.
• PSTN or VoIP Calling Options: Supports communication through traditional phone lines (PSTN) or the Mircom MiVoIP cloud service for VoIP connectivity.
• Clear Two-Way Audio: Speaker and dual microphones with noise reduction and beam-forming technology for improved speech clarity.
• QR Code Visitor Access: QR code scanner enables temporary visitor access by scanning codes generated through the MiEntry app.
• Ethernet Programming: Programmable via the TX3 local configurator through an Ethernet connection.
• Supervised Inputs and Outputs: Programmable 4 supervised inputs and 2 outputs for access and system integration.
• PoE+ or DC Power: Powered by PoE (IEEE 802.3at/Type 2) or an external 24–48VDC / 30W power supply.

Technical Specifications

• Brand: Mircom
• Manufacturer Part Number: TX3-T10-G
• ADI Part Number: MI-TX3T10G
• Screen Size: 10"
• Touchscreen: Yes
• Effective Camera Resolution: 5MP
• Identification Method: Access Card, PIN
• Operating Frequency: 125kHz
• IP Phone Technology: VoIP
• Audio Encoding: G.711
• Ingress Protection Rating: IP65
• Operating Temperature: -22°F to 122°F
• Memory Size: 2GB
• Ethernet Technology: Ethernet, Fast Ethernet, Gigabit Ethernet
• Mount Type: Flush Mount, Surface Mount
• Color: Gray
• Depth: 2.2"
• Dimensions (H x W x D): 14.5" x 7.7" x 2.2"
• Input Voltage: 24–48V DC
• Power Source: PoE+
• Power Consumption: 30W
• Durability: Vandal Resistant, Weather Resistant
