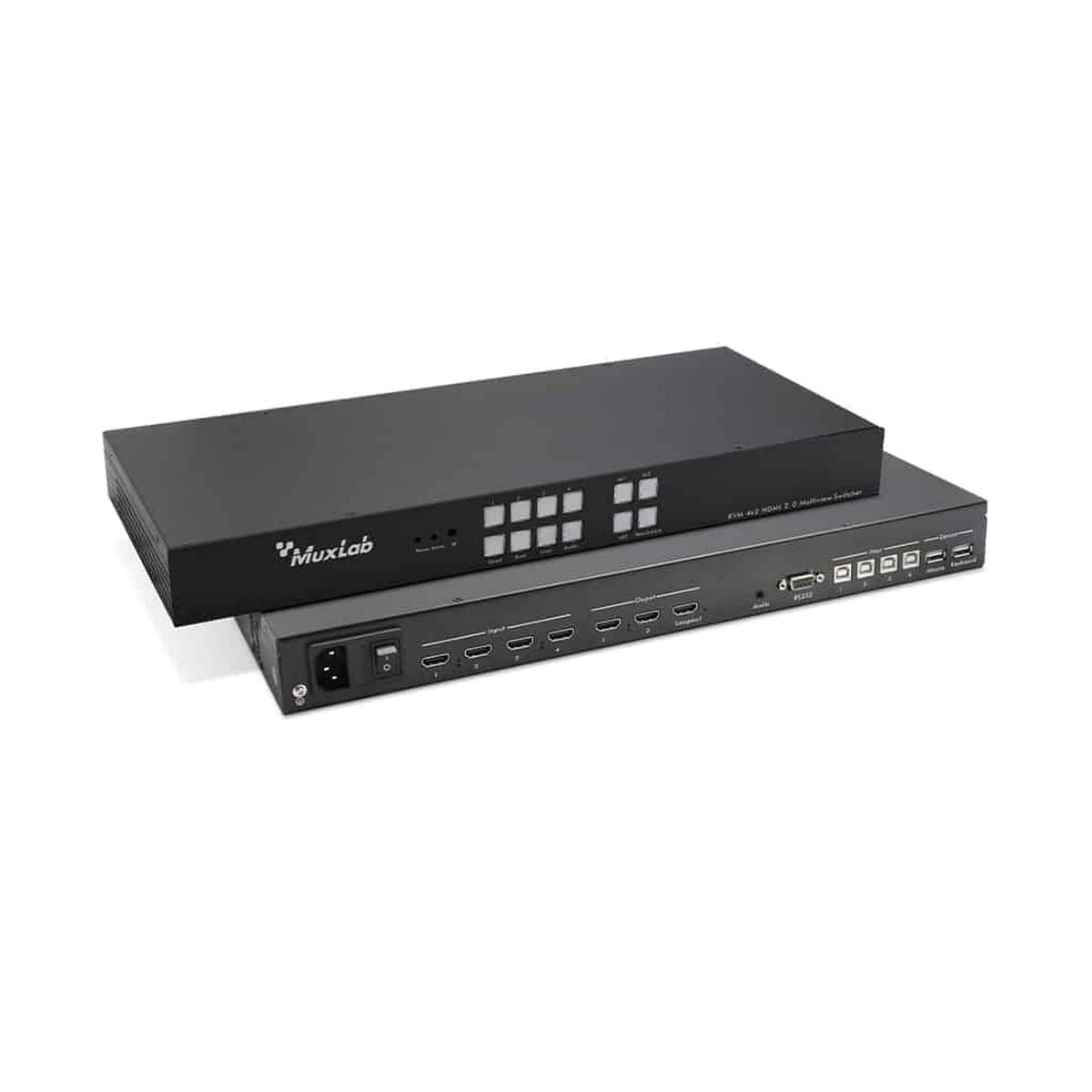

MuxLab 500870 KVM 4x2 HDMI 2.0 Multiview Switcher
MuxLab 500870 KVM 4x2 HDMI 2.0 Multiview Switcher The MuxLab KVM 4x2 HDMI 2.0 Multiview Switcher is a professional video processing and control solution designed for multi-source monitoring and management. It allows up to four HDMI 4K sources to be displayed on...
PRODUCT DETAILS
Everything you need to know.
MuxLab 500870 KVM 4x2 HDMI 2.0 Multiview Switcher
The MuxLab KVM 4x2 HDMI 2.0 Multiview Switcher is a professional video processing and control solution designed for multi-source monitoring and management. It allows up to four HDMI 4K sources to be displayed on one or two displays in a multiview configuration for advanced control room and IT environments.
This multiview switcher supports real-time control of multiple computers without requiring source switching, enabling seamless monitoring and interaction. Users can take control of a specific computer by moving the mouse over the corresponding window, improving workflow efficiency and operational speed.
Designed with a pure hardware architecture, the system operates without the need for a computer or startup software. It delivers high stability, reliable performance, and high-quality video output for mission-critical professional applications.
Key Features
- Multiview KVM Control: One operator can manage multiple servers or computers simultaneously
- HDMI 2.0 Support: Supports four HDMI 2.0 signal inputs and three HDMI 2.0 signal outputs
- Flexible Display Modes: Supports dual-screen and independent dual-screen configurations
- Advanced Window Control: Supports window size, transparency, and signal switching via mouse and keyboard
- Standalone Operation: Pure hardware design with no computer or startup software required
Technical Specifications
Input Port4 x HDMI 2.0
Max Input Resolution
4096x2160P/60Hz
Output Port
5 x HDMI 2.0
Supported Output Resolutions
4096x2160P/60Hz
4096x2160P/30Hz
3840x2160P/60Hz
3840x2160P/30Hz
2560x1600P/60Hz
2560x1440P/60Hz
2560x1080P/60Hz
2048x1152P/60Hz
1920x1440P/60Hz
1920x1200P/60Hz
1920x1080P/60Hz
Control Methods
Keyboard and mouse, remote control, panel buttons, and RS232
Audio
HDMI audio follow, 3.5mm audio separation
Product Dimensions
435mm x 178mm x 44.5mm
Packaging Dimensions
530mm x 285mm x 100mm
Product Weight
1.32KG
Packaging Weight
3KG
Accessories
1 x Power Cable
1 x Remote Control
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
