NETGEAR M4250-40G8XF-PoE+ Managed Switch
In stock SKU: NETG-GSM4248PX100NAS

ToneCraft Gear

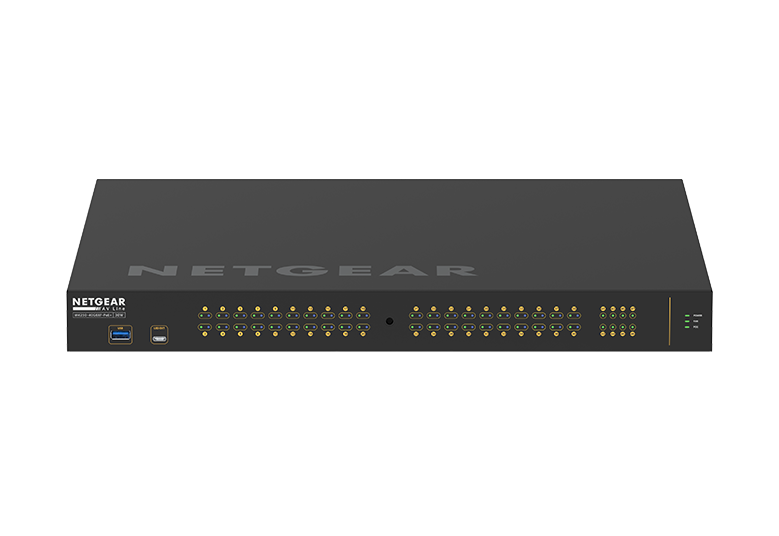

NETGEAR M4250-40G8XF-PoE+ Managed Switch

$2,894.99

NETGEAR M4250-40G8XF-PoE+ Managed SwitchBuilt for the high-density end of NETGEAR's M4250 AV Line, the M4250-40G8XF-PoE+ combines 40 gigabit PoE+ ports with eight SFP+ slots in a single managed switch. Each PoE+ port is rated for up to 30W, drawing on a shared...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

NETGEAR M4250-40G8XF-PoE+ Managed Switch

Built for the high-density end of NETGEAR's M4250 AV Line, the M4250-40G8XF-PoE+ combines 40 gigabit PoE+ ports with eight SFP+ slots in a single managed switch. Each PoE+ port is rated for up to 30W, drawing on a shared 960W budget, and the switch ships preconfigured for standard audio and video signals so large AV-over-IP deployments can come online quickly.

An AV-focused web GUI applies port-based profiles for Dante, Q-SYS, AES67, NVX, SVSI, and NDI traffic alongside mixed audio, video, and control presets. NETGEAR IGMP Plus, Auto-Trunk, and Auto-LAG automate interconnection with other M4250, M4300, and M4500 switches, and the feature set extends to static, RIP, and PIM routing, DHCP Server, PTPv2, and jumbo frames up to 12kb.

Key Features

  • 48 ports total: 40x 1G PoE+ and 8x SFP+
  • 960W shared PoE budget; PoE+ ports rated up to 30W each
  • Port-based AV profiles for Dante, Q-SYS, AES67, NVX, SVSI, and NDI
  • AVB supported via electronic license; November 2023 firmware enables AVB transmit at no added cost
  • NETGEAR IGMP Plus, Auto-Trunk, and Auto-LAG for automatic switch interconnect
  • Management through web GUI, console, telnet, and SSH
  • Standard or recessed rack mounting with included brackets

Specifications

  • Dimensions (WxDxH) : 440 x 400 x 43.2 mm
  • Weight : 6.31 kg (13.91lb)
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 48 (40x 1G PoE+, 8x SFP+)
  • PoE Ports / Budget : 40 PoE+ (30W/port), 960W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248PX-10000S).
  • Acoustics : Fanless or 59dB@25ºC
  • Power Consumption : With PoE: 1197W/4086.56Btu/hr Without PoE: 89.2W/304.53Btu/hr Standby without any port connection: 74.5W/254.34Btu/hr
  • Now with AVB License! New M4250 firmware released in Nov 2023 includes the ability to transmit AVB at no additional cost
  • PHYSICAL SPECIFICATION
  • TECHNICAL SPECS

What's Included

  • M4250-40G8XF-PoE+ (GSM4248PX)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
