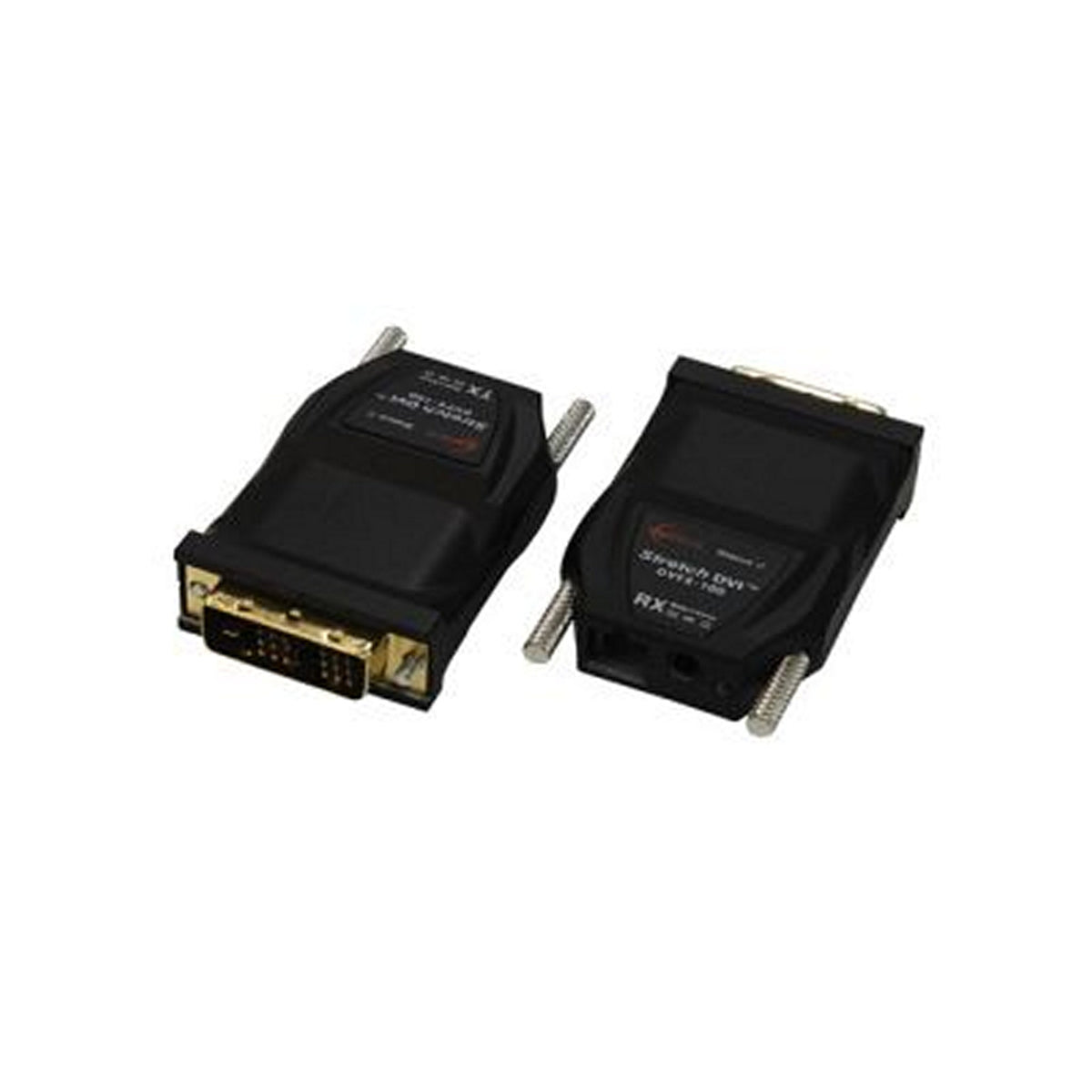

Opticis DVFX-100-TR One Fiber Detachable DVI Module

Opticis DVFX-100-TR One Fiber Detachable DVI Module

Experience flawless, uncompressed DVI video transmission of up to 2K resolution at 60 Hz over a single multimode fiber with the Opticis DVFX-100-TR. Designed for professional AV environments—medical imaging, simulation, digital signage—this compact module delivers rock-solid signal integrity up to 500 meters (1,640 ft) on OM2/OM3 fiber, or 300 meters (984 ft) on OM1 fiber, without any degradation or latency.

Installation is effortless: hot-swappable transmitter and receiver draw +5 V DC automatically, with patent-pending Self-EDID programming for plug-and-play EDID handling. A rugged die-cast aluminum enclosure provides EMI/RFI shielding and efficient heat dissipation, while intuitive LED indicators show power and signal status at a glance.

Key Features

• Single-Fiber Transmission: Up to 500 m over OM2/OM3 fiber; 300 m over OM1 fiber
• High-Resolution Support: Uncompressed DVI up to 2K (1920×1200) @ 60 Hz
• Self-EDID Programming: Automatic EDID reading and restoration for seamless setup
• Auto-Power Switching: Draws +5 V DC from video card or external adapter
• Rugged Enclosure: Die-cast aluminum housing with EMI/RFI shielding
• LED Indicators: Visual feedback for power and signal status
• Hot-Swappable Modules: Easy plug-and-play flexibility

Technical Specifications

• Dimensions (W × D × H): 2.2" × 1.5" × 0.6" (56 × 39 × 14.6 mm)
• Weight: 0.88 lbs (0.40 kg)
• Package Weight: 0.83 lbs (0.38 kg)
• Box Dimensions: 9.8" × 5" × 2.4" (24.9 × 12.7 × 6.1 cm)
• Input Power: +5 V ⎓ 1 A
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: –30 °C to 70 °C
• Bandwidth: Up to 2.25 Gbps per graphic channel
• Fiber Interface: 1× SC multimode connector
• Supported Cable Types: OM2/OM3 (up to 500 m) or OM1 (up to 300 m)
• Compliance: DVI 1.0, virtual DDC 2B, UL/EN 60601-1, IEC 60601-1-2, FCC, CE, Class 1 Laser Eye Safety
