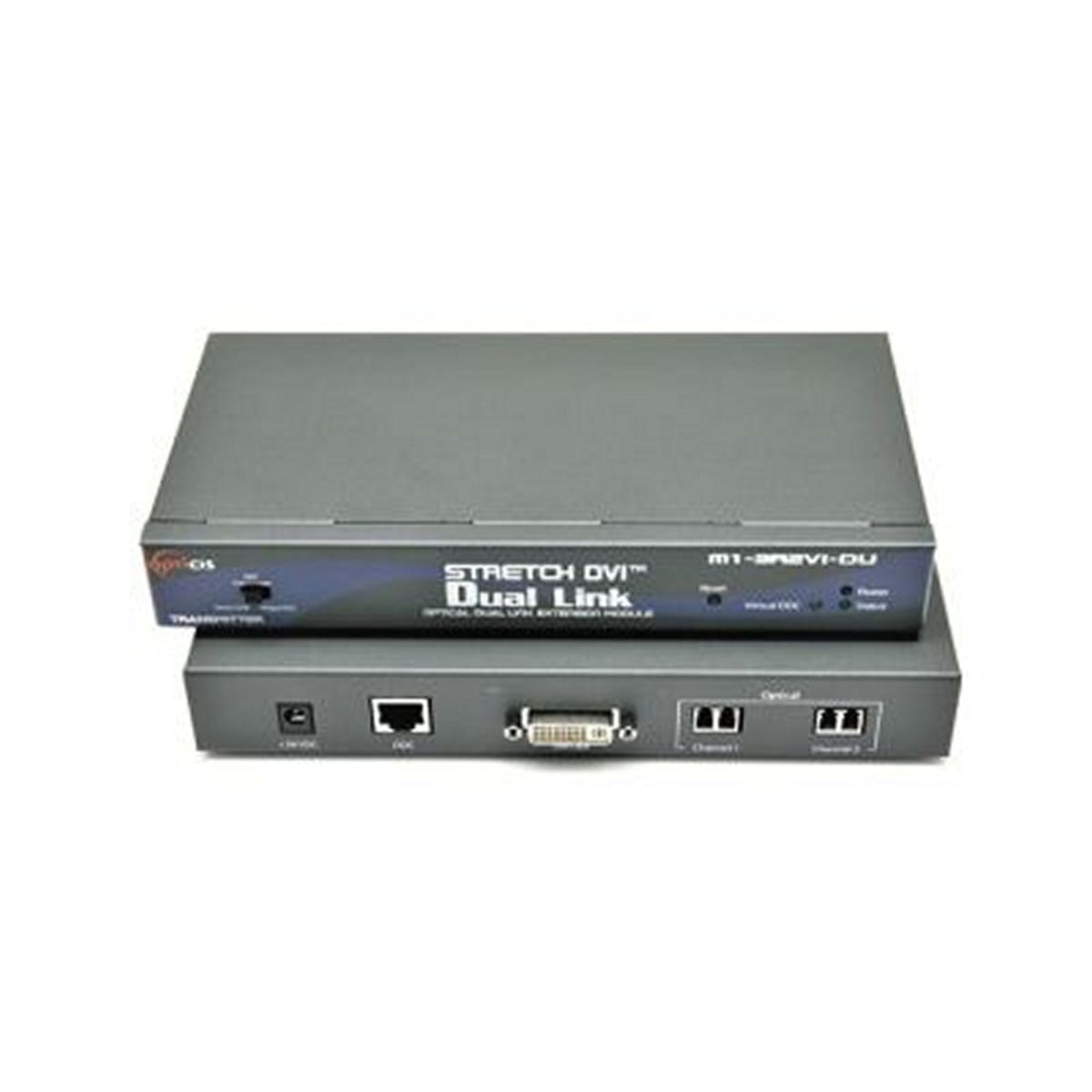

Opticis M1-3R2VI-DU Stretch DVI Dual Link Extension Module

Opticis M1-3R2VI-DU Stretch DVI Dual Link Extension Module

Bring your high-resolution displays to life over extraordinary distances with the Opticis Stretch DVI Dual Link Extension Module. Engineered for WQXGA (2560×1600) at 60 Hz or ultra-wide resolutions up to 3840×2400 at 33 Hz, this detachable transmitter-receiver pair delivers pristine, uncompressed video up to 2 km (6,560 ft) over single-mode fiber or 100 m (328 ft) with full EDID handshake via CAT5e. Ideal for control rooms, medical imaging suites, large-venue digital signage, and simulation environments.

Installation couldn’t be simpler: hot-swappable modules automatically capture and restore display EDID on first connection, while auto-power switching pulls +24 V from the external adapter and powers both units via a single CAT5e link. Rugged die-cast aluminum enclosures provide superior EMI/RFI shielding and heat dissipation, and intuitive LED indicators keep you informed of power and signal status at a glance.

Key Features

• Ultimate Resolution: Supports dual-link DVI up to 2560×1600 @ 60 Hz or 3840×2400 @ 33 Hz
• Long-Reach Extension: Up to 100 m (328 ft) with DDC2B; up to 2 km (6,560 ft) with virtual DDC
• Self-EDID Programming: Automatic EDID capture and restoration for true plug-and-play
• Single-Adapter Power: +24 V external supply powers both Tx and Rx over one CAT5e cable
• Rugged Construction: Die-cast aluminum housings for EMI/RFI shielding and durability
• LED Status Indicators: Real-time feedback on power, transmission, and link integrity
• Lightweight Detachable Cables: Secure LC fiber and DVI-D copper connections

Technical Specifications

• Resolution Support: Dual-link DVI up to 2560×1600 @ 60 Hz; WQUXGA up to 3840×2400 @ 33 Hz
• Extension Distance: 100 m (328 ft) with DDC2B; 2 km (6,560 ft) with virtual DDC
• Fiber Interface: Four LC or two duplex LC connectors (single-mode or multimode)
• Power Input: +24 V DC via external adapter (supplies both modules over CAT5e)
• Supply Current: Tx: 180–270 mA; Rx: 270–380 mA
• Power Dissipation: Tx: 3.8–7.2 W; Rx: 5.8–10.0 W
• Operating Temperature: 0 °C to +50 °C
• Storage Temperature: –30 °C to +70 °C
• Operating Humidity: 10% to 85% RH, non-condensing
• Certifications: FCC, CE, Class 1 Laser Eye Safety

What’s Included

• 1× Dual-link DVI Transmitter Module (Tx)
• 1× Dual-link DVI Receiver Module (Rx)
• 2× Dual-link DVI-D Copper Cables (1.8 m)
• 1× +24 V DC Power Adapter (AC 85–264 V, 50/60 Hz)
• 1× AC Power Cord (US or EU type)
• 1× User Manual
